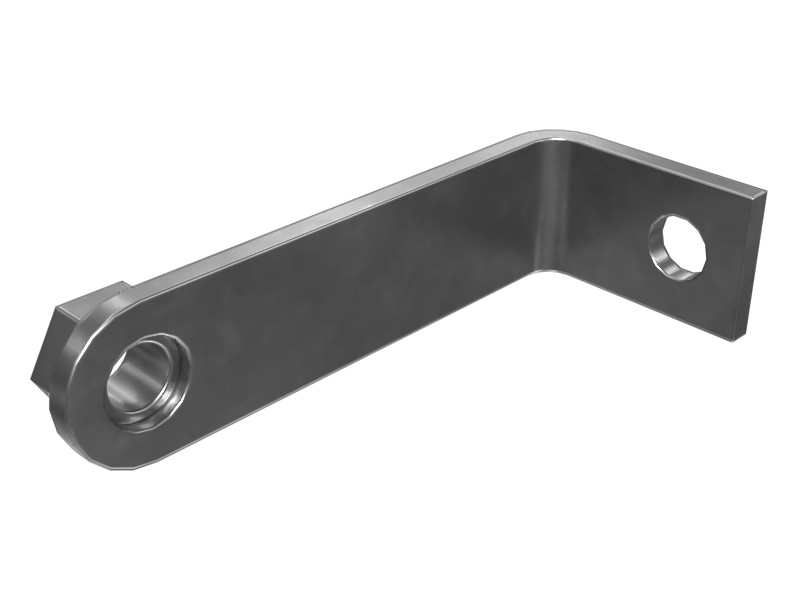

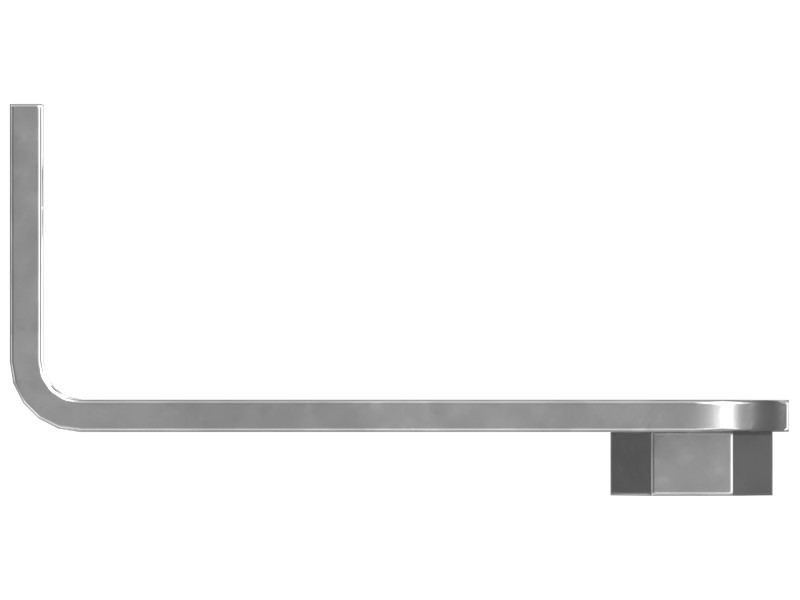

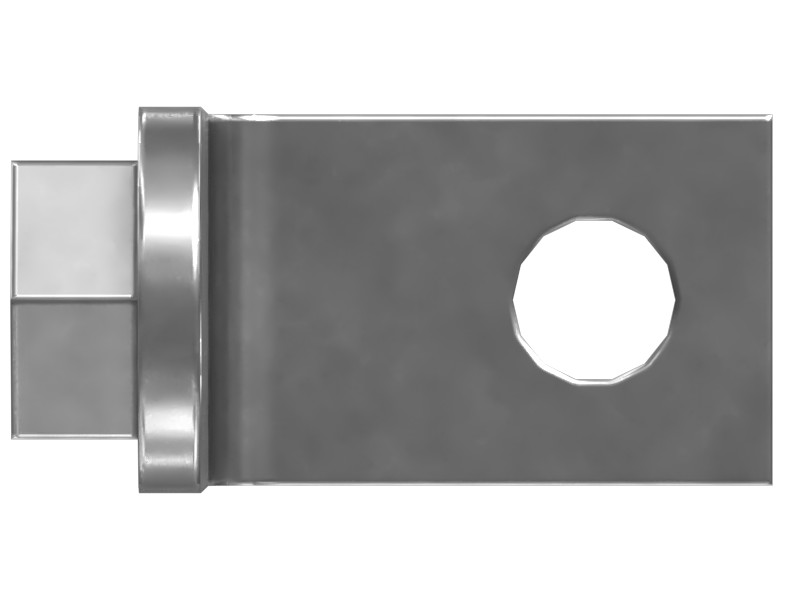

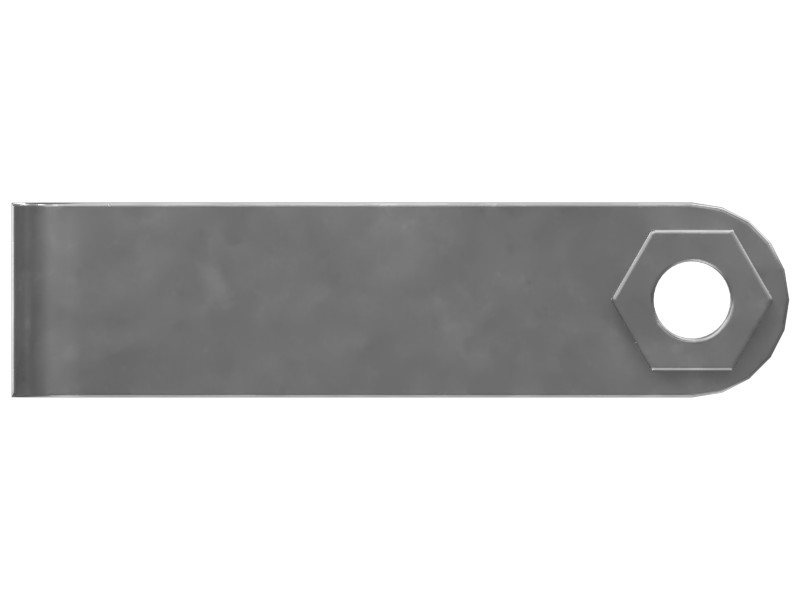

197-6453 Fume Removal Assembly Bracket Group
Cat® Steel Fumes Disposal Assembly Bracket Group, L x W x H x Thickness: 100 x 25 x 50.2 x 4 mm, Used with M10 x 1.5 Fasteners
Description
Bracket group used in the fume extraction assembly (such as 197-6453). Cat bracket groups provide support and securement for various components on Cat heavy-duty equipment. Cat mounting brackets are carefully designed and manufactured to provide an optimal mounting solution for any equipment.
Features
- Steel mounting bracket group includes a plate with 1 weld nuts.
- For use with M10 X 1.5 fasteners.
Applications
- Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Color | Cat Yellow |
|---|---|
| Height | 50.2 mm (1.98 in) |
| Hole Size | 11 mm (0.43 in) |
| Length | 100 mm (3.94 in) |
| Material Thickness | 4 mm (0.16 in) |
| Width | 25 mm (0.98 in) |
Compatible Equipment
- Generator Sets: C9, C7.1
- Track Loaders: 990K, 982, 972, 992, 993
- Cold Planers: PL72
- Compactors: 815, 814
- Engines: C15, C7, C32, C27, C18
- Asphalt Pavers: AD45
- Skid Steer Loaders: 24
- Motor Graders: 120
- Dozers: D6T, D10T2, D8R, D6N, D6T LGP, D7E, D11, D8T, D10, D8, D9
- Excavators: 637K, 6030, 6060, 6040, 621K
- Wheel Loaders: 950H, 966K, 990H, 980H, 950L, 962L, 986H, RM400, 980, 966, 950, 980L
- Off-Highway Trucks: 797F, 793, 772G, 793D, 793F, 770G, 789D, 777, 789, 777E, 798 AC
Additional information
| Machine Model | 120, 24, 6030, 6040, 6060, 621K, 637K, 770G, 772G, 777, 777E, 789, 789D, 793, 793D, 793F, 797F, 798 AC, 814, 815, 950, 950H, 950L, 962L, 966, 966K, 972, 980, 980H, 980L, 982, 986H, 990H, 990K, 992, 993, AD45, C15, C18, C27, C32, C7, C7.1, C9, D10, D10T2, D11, D6N, D6T, D6T LGP, D7E, D8, D8R, D8T, D9, PL72, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
