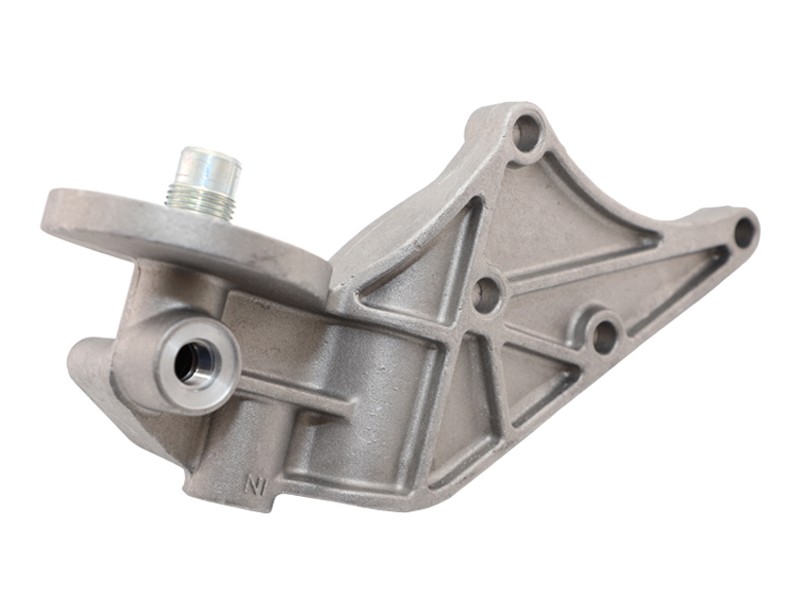

197-3342 Fuel Filter Base for Spin-On Filter Elements
Cat® fuel filter base for spin-on primary fuel filter elements, filter thread size: 7/8-14.
Description
Fuel filter bases (such as 197-3342) securely hold critical filter components so that the fuel system operates at peak performance. This dual filter base is used to mount primary and secondary fuel filter elements.
Features
- Aluminum fuel filter base
- Connection: SAE -6 STOR Port (2X)
- Filter Thread Size: 7/8-14
- Overall Length: 268 mm (10.55 in)
- Overall Width: 90 mm (3.54 in)
- Overall Height: 154 mm (6.04 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Filter Type | Spin-On |
|---|---|
| Hole Size | 11 mm (0.43 in) |
| Material | Alloy Aluminum |
| Overall Height | 154 mm (6.04 in) |
| Overall Length | 268 mm (10.55 in) |
| Overall Width | 90 mm (3.54 in) |
| Port Type | SAE -6 STOR Port (2X) |
| Thread Size | M6X1; M8X1.25 mm (7/8-14 (Filter) in) |
Compatible Equipment
- Generator Sets: C9
- Engines: C7
- Compactors: C-9
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
