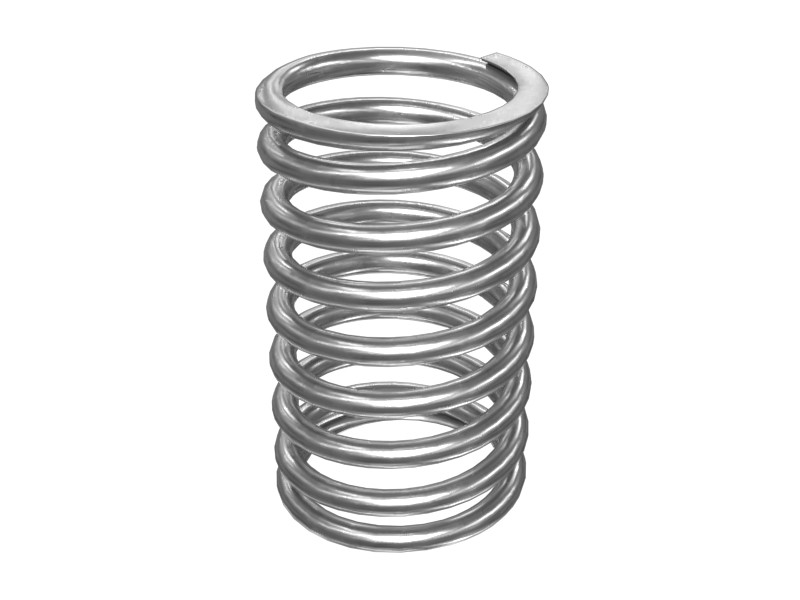

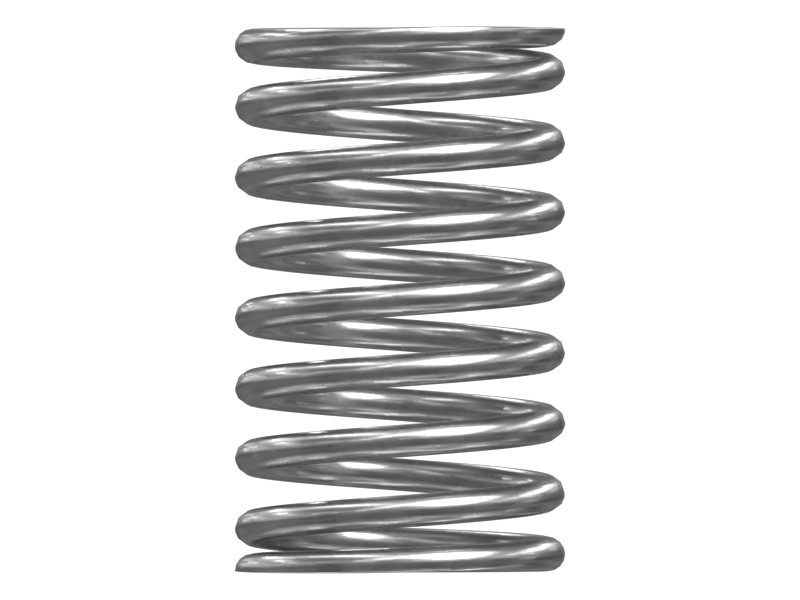

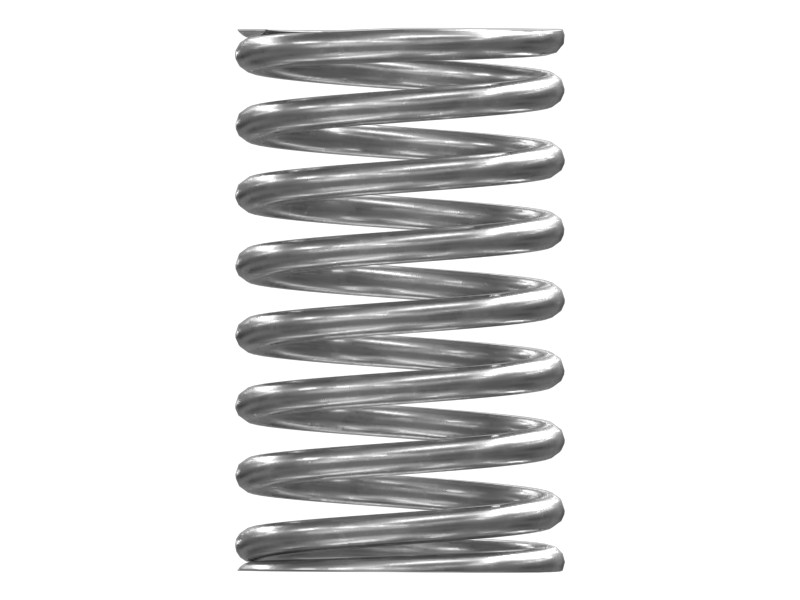

197-0273 13.7 mm Diameter Compression Spring
Cat® 13.7 mm Diameter Compression Spring for Manifold Control Valves
Description
A compression spring is a mechanical spring designed to withstand compressive forces and store energy. It is a helical spring, meaning it is made of tightly coiled wire of constant diameter and pitch. When the spring is compressed, the coils of the wire move closer together, creating a force that resists the compression and tries to push back to its original length. Compression springs are commonly used in manifold control valves to provide a restoring force for the spool. The spool is typically a plunger or piston that moves in response to changes in pressure or flow in the fluid system.
Attributes
- Springs meet or exceed current standards and material grades.
- Manufactured to exact specifications, designed to ensure durability, reliability and lifetime productivity.
- Has right-hand coils.
- Spring rate of 2.89 N/MM.
Applications
Compression springs are widely used in hydraulic systems that require energy to be stored within the spring in the machine and in the shop. Compression springs are available in many types to meet needs, including cylindrical, conical, and double-conical springs.
Specifications
| Material | Carbon Steel |
|---|
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: 3512B
- Excavators: 330D L, 349F L, 352F, 340D2 L, 345D L, 345D, 349D L, 345C, 313D2, 320D3, 320C, 330D2, 336E LH, 336E L, 312D, 315D L, 323D L, 320D L, 325D, 330D2 L, 329E L, 312D2 L, 336F L, 330C L, 325C, 330D, 313F L, 320D RR, 336D2 XE, 326D L, 313D, 336E, 323D2, 320E, 325D L, 330C, 336D2 L, 312C, 336D L, 320D FM, 324D L, 318D2 L, 318D2, 315C, 320D GC, 311D LRR, 336E H, 320D2 GC, 312D L, 336F LN, 312D2, 315F LCR, 314D LCR, 312E L, 324D, 329D L, 320C L, 323D2 L, 312E, 314D CR, 320D2 L, 336D2 GC, 336F L XE, 312D2 GC, 325C L, 312C L, 336F, 349E L, 328D LCR, 335F LCR, 329E, 313D2 GC, 336E LN, 312F, 318D L, 323D, 313D2-GC, 349E, 345C L, 340D L, 349E L VG, 349D2 L, 349D2, 320D, 320D2, 329D, 329D2 L, 326D2, 336D2, 326D2 L, 336D, 329D2, 349D
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 314D CR, 314D LCR, 315C, 315D L, 315F LCR, 316F, 318D L, 318D2, 318D2 L, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320E, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 335F LCR, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3512B, 352F |
|---|---|
| Equipment Type | Excavators, Skid Steer Loaders, Motor Graders, Generator Sets |
| Part Source | Genuine OEM |
