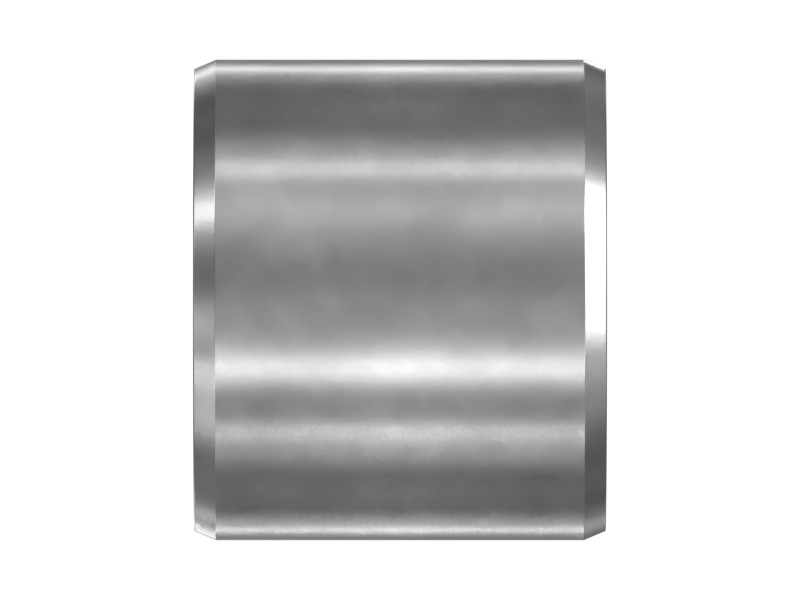

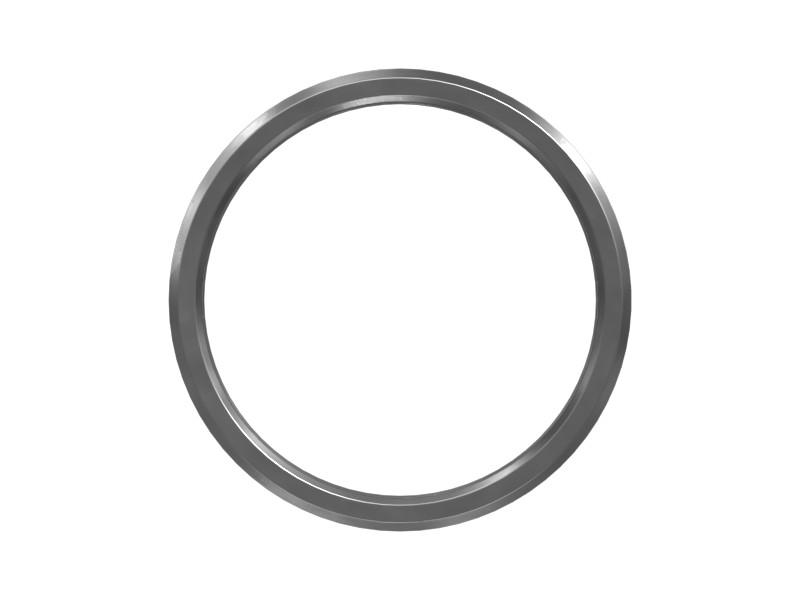

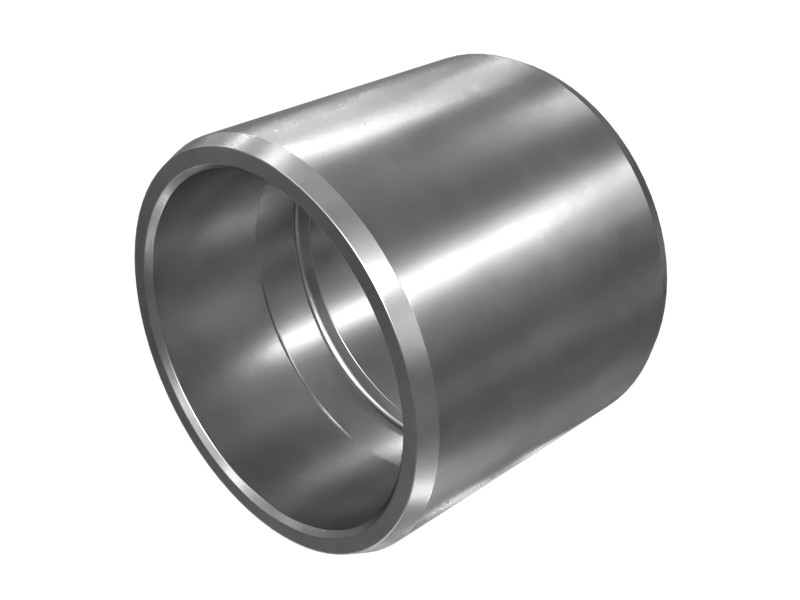

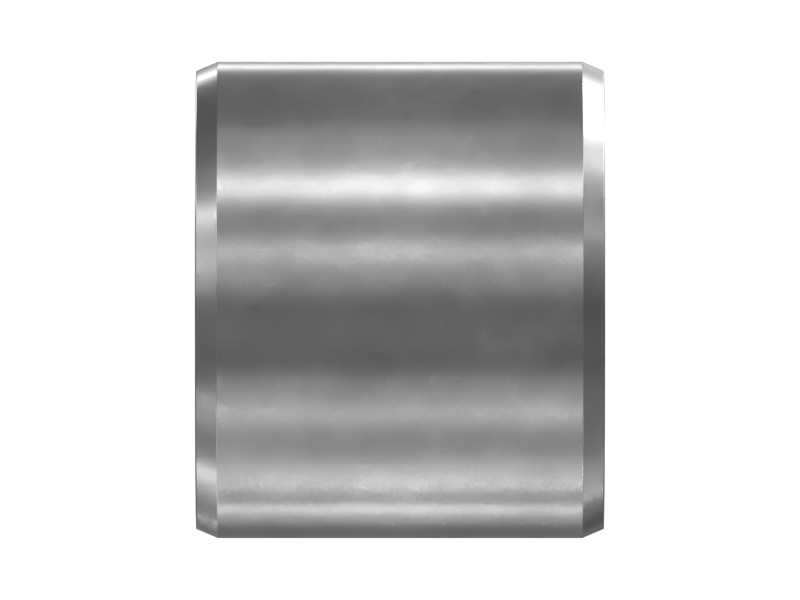

196-9988 Bearing Sleeve
The sleeve bearing is an important component of the cylinder block, which serves as the main body of the engine.
Description
Cat® parts are built to exact specifications and are durable, reliable, efficient, environmentally friendly and reusable
Specifications
| Ferrule Inside Diameter | 28.634 mm (1.127 in) |
|---|---|
| Ferrule Outside Diameter | 33.414 mm (1.316 in) |
| Unique Features | No |
| Type | Straight Sleeve |
| Material | Steel Backed Bronze Bearing |
| Inside Diameter | 28.63 mm (1.13 in) |
| Outside Diameter | 33.41 mm (1.32 in) |
| Overall Length | 29 mm (1.13 in) |
| Internal Groove | Yes |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Motor Graders: 140H, 140G, 12H
- Generator Sets: C7.1
- Track Loaders: 816F
- Dozers: D6R, D6G, D7R, D7H, D6G2 XL, D6G2 LGP, D7G, D7G2
- Excavators: 330B, 330 L, 637E, 637G
- Wheel Loaders: 966F, 972G, R1300G
