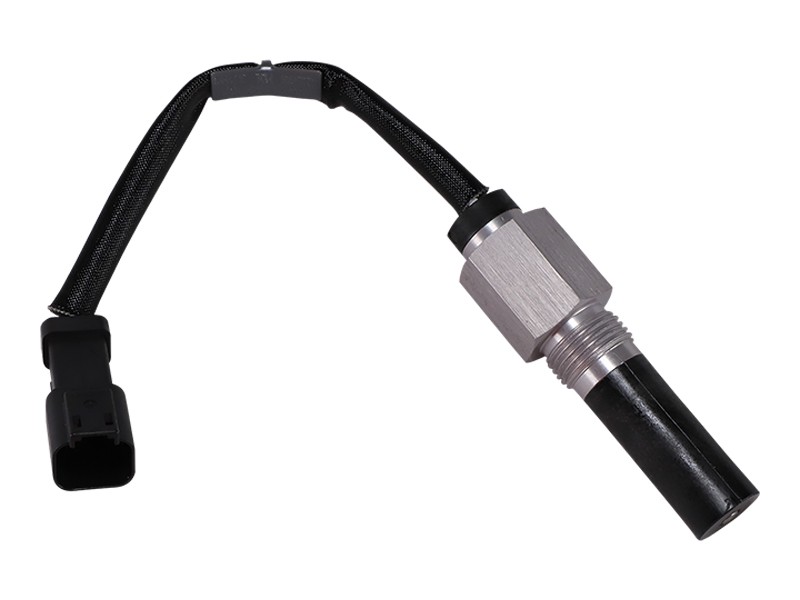

196-1185 2-Pin DT High Output Magnetic Speed Sensor
Cat® 3/4-16" Threaded Aluminum High Output Magnetic Speed Sensor
Description
Cat passive speed sensors do not require any external power supply. The output signal is alternating current, and the waveform function of the actuator is generally sinusoidal in nature. Both voltage and frequency are proportional to the surface speed of the actuator as it passes the sensor pole piece. Nylon is injected through the housing into a mold over the magnet and coil.
Features
- High output
- Available with a variety of fixed-length noses and depth-adjustable housings (with locknut)
Applications
- High position accuracy; not recommended for applications below 50 rpm
- Low output voltage
- Typical applications include engine camshaft and transmission output
Specifications
| External Thread Size | 3/4 – 16 |
|---|---|
| Thread Length | 54 mm (2.13 in) |
| Lead Length | 145 mm (5.71 in) |
| Overall Length | 87.4 mm (3.44 in) |
| Material | Alloy Aluminum |
Compatible Equipment
- Track Loaders: 834H
- Cold Planers: TH55-E70
- Dozers: D6N
- Excavators: 621H, 621K
- Wheel Loaders: 992K
- Off-Highway Trucks: 797F
- Asphalt Pavers: AD63
Additional information
| Machine Model | |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
