Description

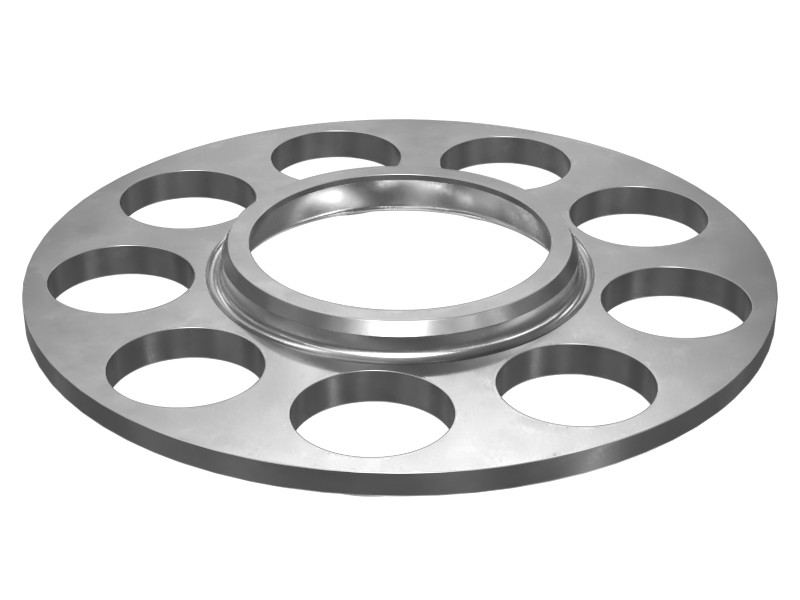

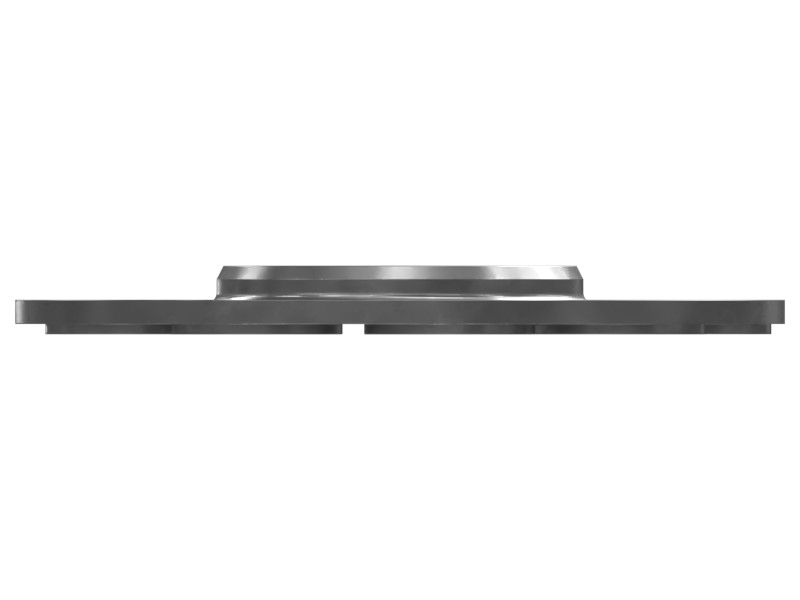

The piston pump rotating swashplate is a key part that converts the rotary motion of the pump drive shaft into reciprocating motion to generate hydraulic pressure. It is usually a flat disc mounted at an angle to the drive shaft of the piston pump and is connected to the pistons through a series of push rods or slippers.
Features
- Equipped with 9 holes with a diameter of 22 mm to accommodate the pistons and regulate their movement
- Built to exact specifications for durability and reliable performance
Applications
The piston pump rotating swashplate is used to convert mechanical energy into hydraulic energy.
Specifications
| Outside Diameter | 113 mm (4.45 in) |
|---|---|
| Thickness | 10 mm (0.39 in) |
| Weight | 0.18 kg (0.4 lb) |
Compatible Equipment
- Motor Graders: 12K, 140K, 160K
- Track Loaders: 994K, 995
- Wheel Excavators: MD6250
- Compactors: 834K
- Dozers: D11R, D11T, D9T, D10R
- Excavators: 637K, 6020B, 6040
- Wheel Loaders: 836, 938K, 924K, 950H, 938M, 834
- Off-Highway Trucks: 785D, 773E, 730, 772G, 771D, 770G, 725C2, 773F, 740 GC, 773D, 775G, 725, 773, 785, 740
Additional information
| Machine Model | 12K, 140K, 160K, 6020B, 6040, 637K, 725, 725C2, 730, 740, 740 GC, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 785, 785D, 834, 834K, 836, 924K, 938K, 938M, 950H, 994K, 995, D10R, D11R, D11T, D9T, MD6250 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors |
| Part Source | Genuine OEM |
