Description

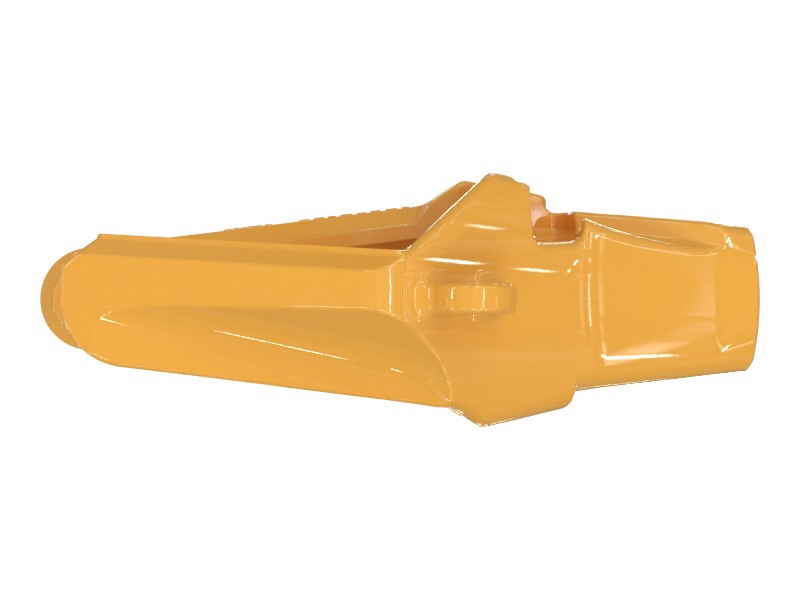

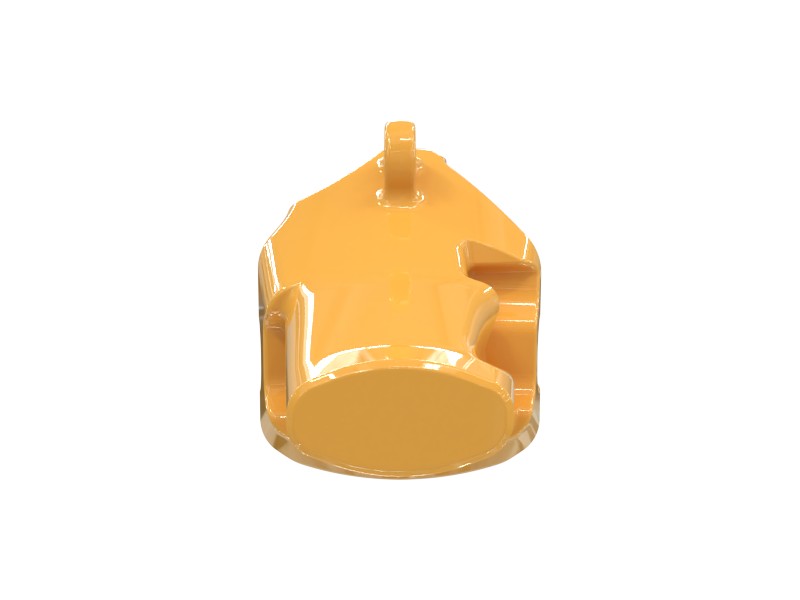

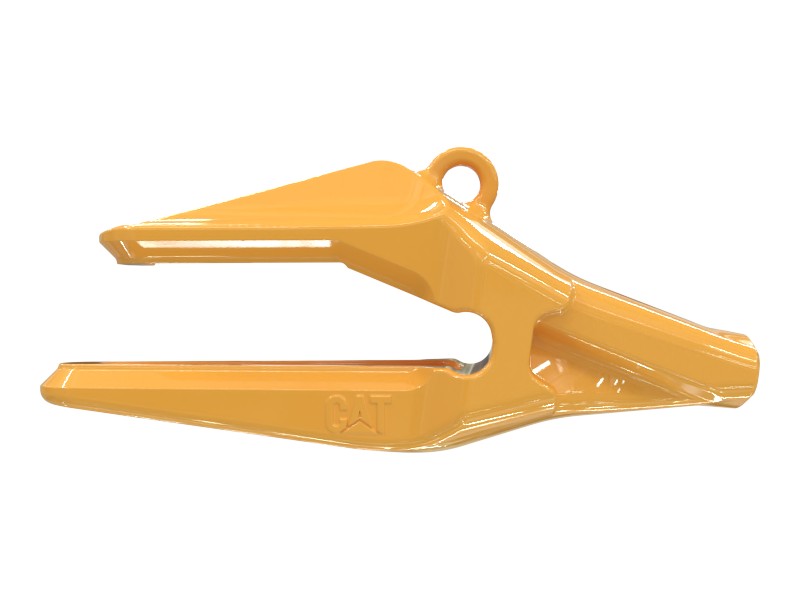

K150 right hammerless adapter fits a 80 mm base edge with a 22.5 degree bevel angle and a 4 degree limit angle
Features
Cat® two-strap adapters have a lower profile than flush mount adapters, producing greater penetration and higher productivity.
Recommended Applications:
Hydraulic excavator buckets
Specifications
| Type | Two Strap |
|---|---|
| Wear or Durability | Standard |
| Size | K150 |
| Base Edge Thickness Grade | 80 |
| Hole Spacing | 0 mm |
| Bottom Bar Length | 385 mm (15.157 in) |
| Attachment Method | Weld-On |
| Bevel Angle | 22.5 |
| Number of Holes | 0 |
| Width | 199 mm (7.835 in) |
| Corner Stop Angle | 4 |
| Overall Length | 597 mm (23.504 in) |
| Adapter Size | K150 |
| Series | K Series |
| Attachments | Weld-On |
| Machine Model | Loader |
| Wear Material | Standard Optional |
Compatible Equipment
- Excavators: 385C L, 365C, 374F L, 365B, 385C, 390D, 365C L, 374D L, 374F, 390D L, 390F L
