Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

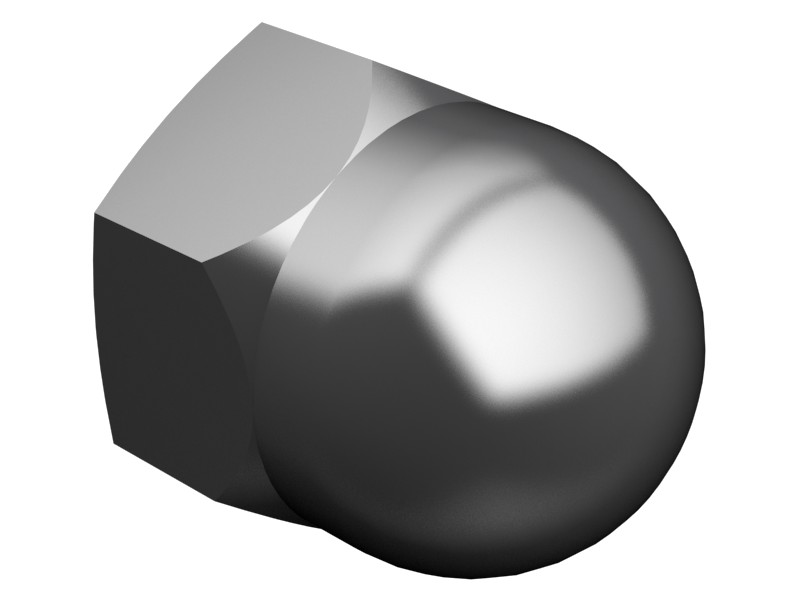

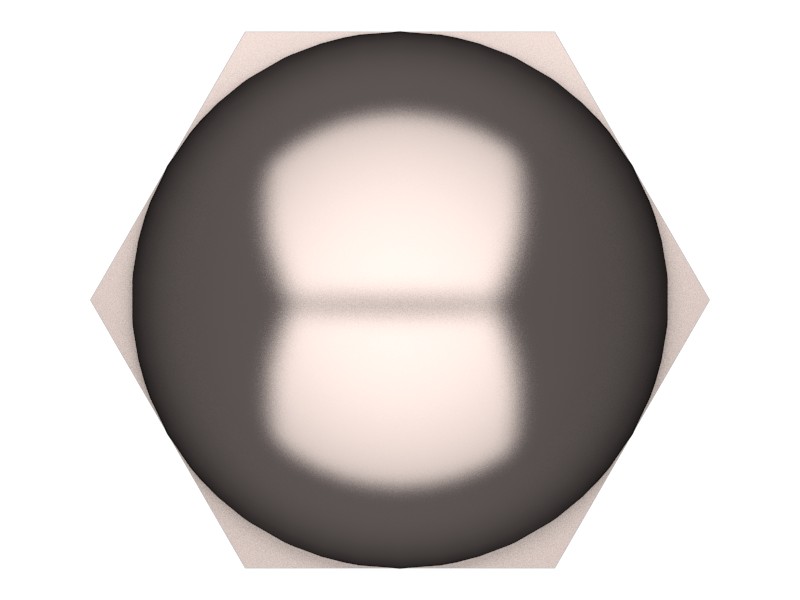

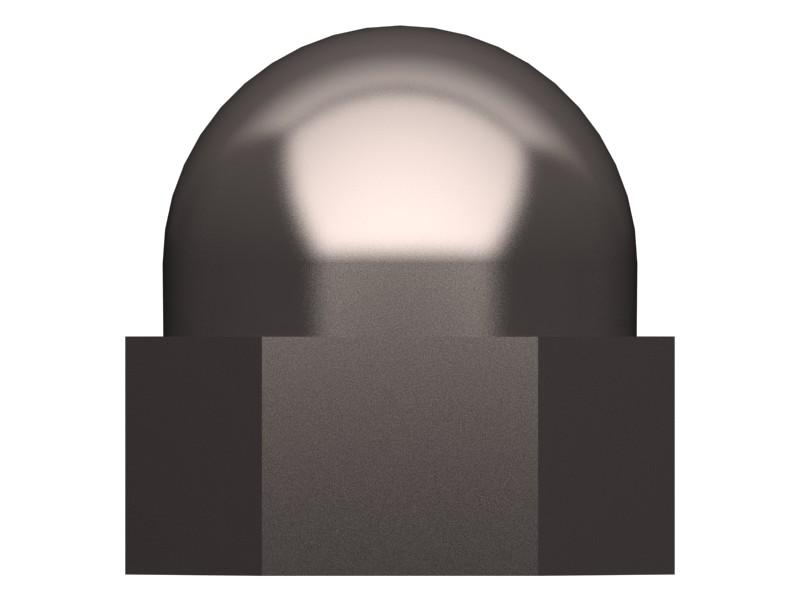

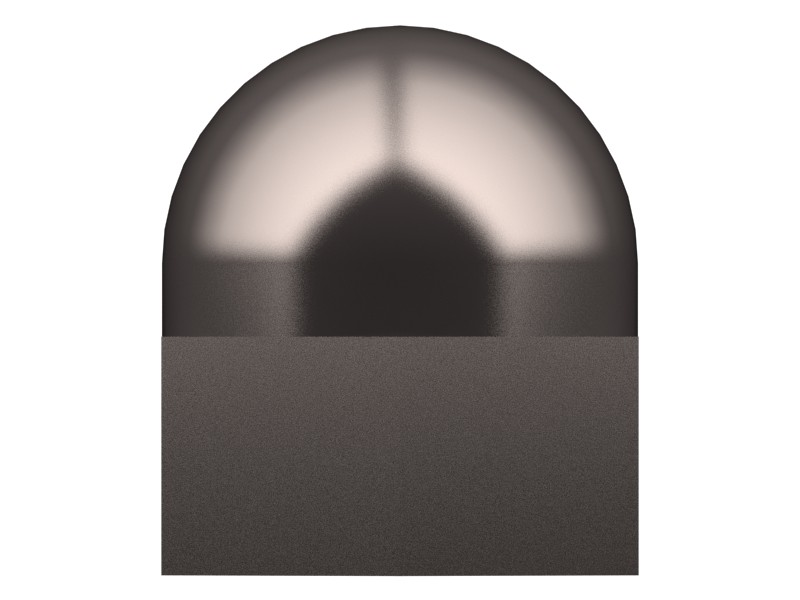

These nuts are used to protect the protruding threaded end of a bolt and can sometimes be used to turn a bolt into a captive fastener. In some cases, they are tightened onto the end of a stud to secure a guard.
Features
*Cat fasteners are manufactured to precise specifications for durability, reliability and efficiency
* Strength and quality – fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
* Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
* Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Material | Alloy Zinc |
|---|---|
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Class or Grade | See Drawing |
| Drive Chain | 13 mm (0.512 in) |
| Thread Size | M8 mm (0 in) |
| Coating | Zinc Electroplated With Topcoat Sealer, 5 Micron Minimum Thickness, 96 Hours Maximum to White Rust |
| Hole Thread Pitch | 1.25 |
| Material Description | Steel |
| Thickness | 15 mm (0.591 in) |
| Thread | RH Coarse |
| Nut Model | Acorn |
| Thread Size (in – TPI) | M8-1.25 in |
Compatible Equipment
- Generator Sets: C7.1, C4.4, C2.2DE18E3
- Track Loaders: 963, 973K, 982, 972, 953, 963K, 953K
- Compactors: CB2.9, CB2.5, CB-14, CW-16, CW-34, CB2.7, CB2.5 GC, CB2.7 GC, CB10
- Engines: C32, C18
- Excavators: 330, 301.7D, 303.5E2 CR, 374, 305E2 CR, 120 GC, 336 GC, 345 GC, 350, 349, 352, 395, 340, 326, 336, 355, 326 GC, 336F, 637K, 333, 621H, 416F2, 621K, 6060, 336F L, 336F LN, 333 GC, 6030
- Motor Graders: 12K, 140 GC, 349 GC, 160K, 140K
- Dozers: D7, D6T, D8
- Mini Excavators: 305E2, 308, 305.5E2
- Wheel Loaders: 950, 950 GC, 966, 980, R1700 XE, 962L, 980L, 950L, 972L, 966K, 966L, R1700K
- Off-Highway Trucks: 794 AC, 793, 798 AC, 785, 797F, 789D, 796 AC, 793F, 793D, 785D, 789
Additional information
| Machine Model | 120 GC, 12K, 140 GC, 140K, 160K, 301.7D, 303.5E2 CR, 305.5E2, 305E2, 305E2 CR, 308, 326, 326 GC, 330, 333, 333 GC, 336, 336 GC, 336F, 336F L, 336F LN, 340, 345 GC, 349, 349 GC, 350, 352, 355, 374, 395, 416F2, 6030, 6060, 621H, 621K, 637K, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 950, 950 GC, 950L, 953, 953K, 962L, 963, 963K, 966, 966K, 966L, 972, 972L, 973K, 980, 980L, 982, C18, C2.2DE18E3, C32, C4.4, C7.1, CB-14, CB10, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CW-16, CW-34, D6T, D7, D8, R1700 XE, R1700K |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
