194-7093 18.35 mm OD Thrust Bearing

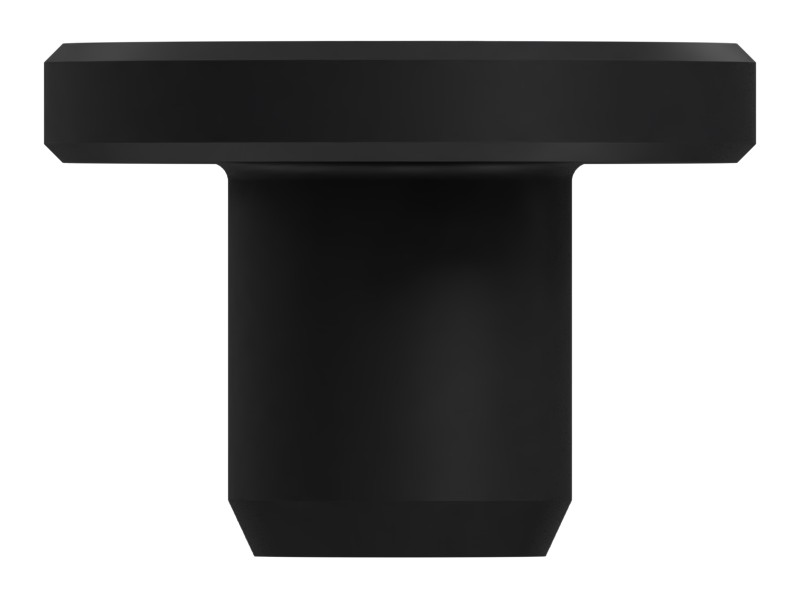

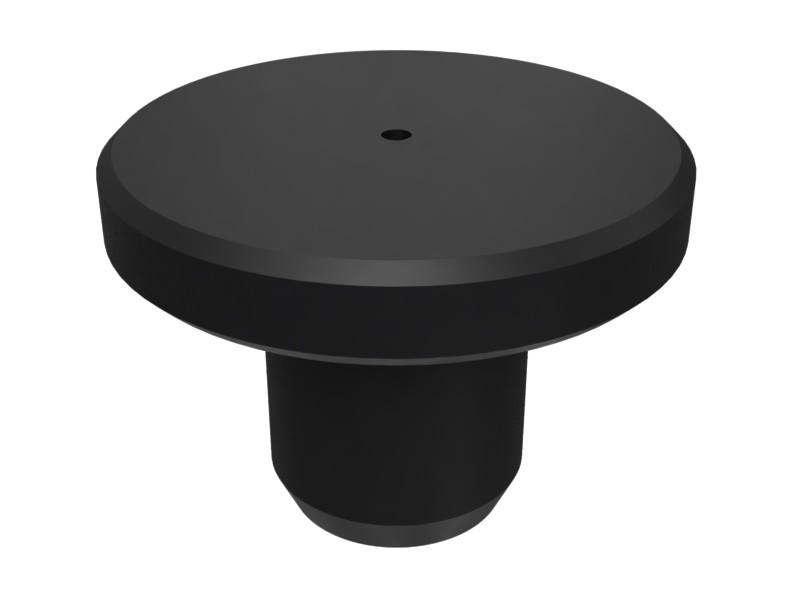

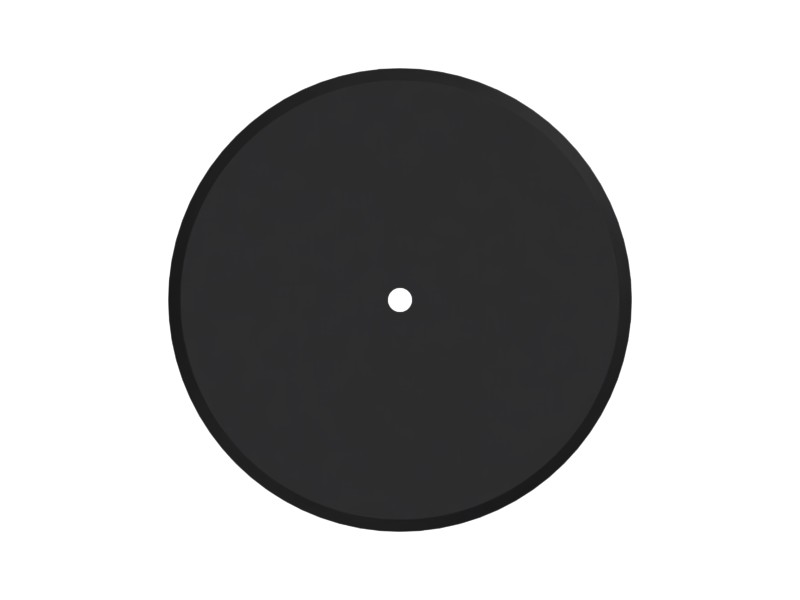

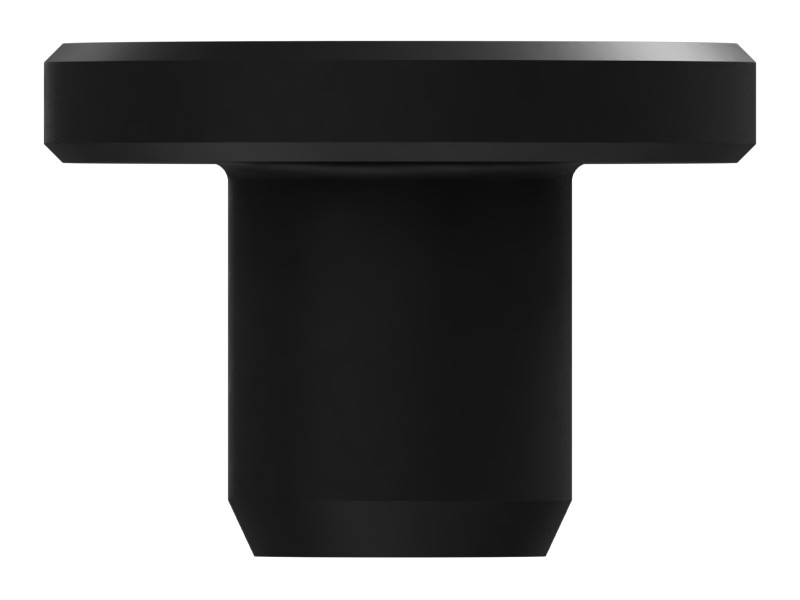

Cat® 18.35 mm OD 27.35 mm Long Thrust Bearing for Planetary Transmission Gear Shaft
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Unique Features | No |
|---|---|
| Flange Thickness | 6 mm (0.25 in) |
| Ferrule Outside Diameter | 18.35 mm (0.722 in) |
| Ferrule Inside Diameter | 2 mm (0.079 in) |
| Type | Flanged Sleeve |
| Material | Alloy Zinc |
| Inside Diameter | 8 mm (0.32 in) |
| Outside Diameter | 18 mm (0.71 in) |
| Overall Length | 27 mm (1.08 in) |
| Flange Diameter | 38 mm (1.50 in) |
| Internal Groove | None |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Off-Highway Trucks: 730, 735, 725C2, 725
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
