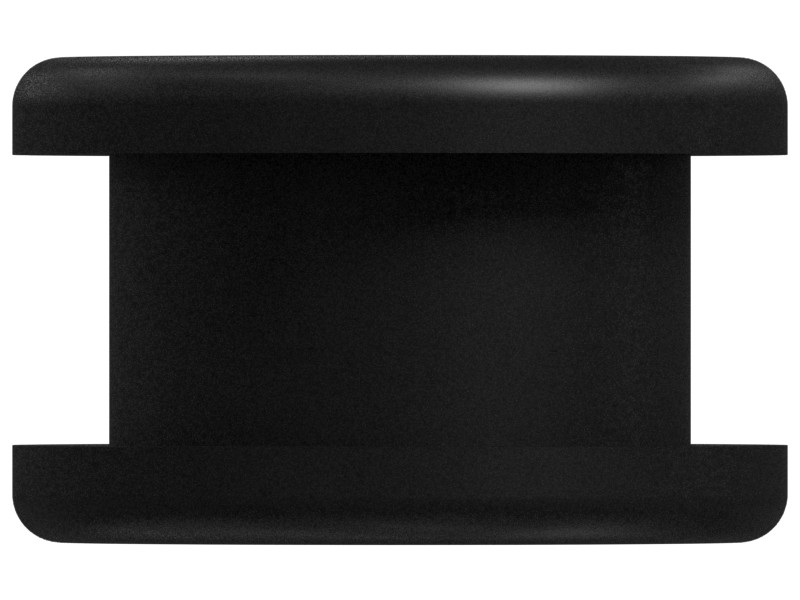

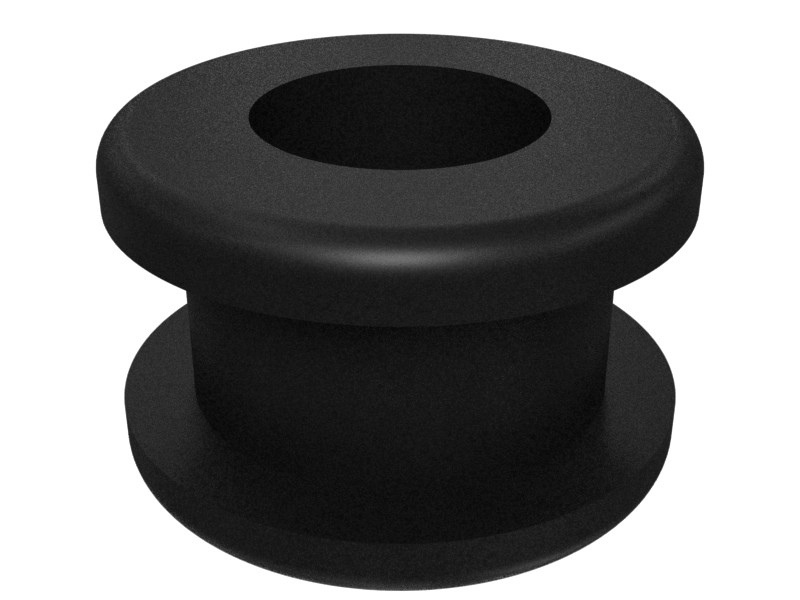

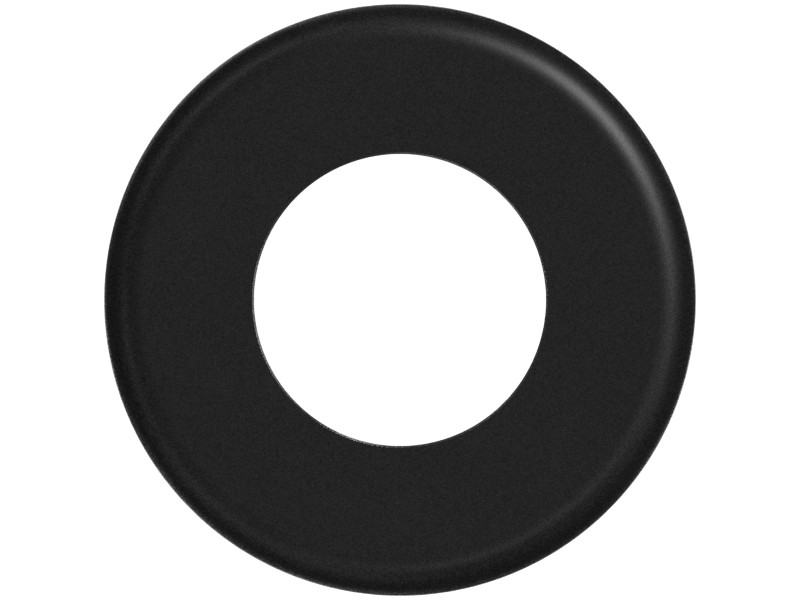

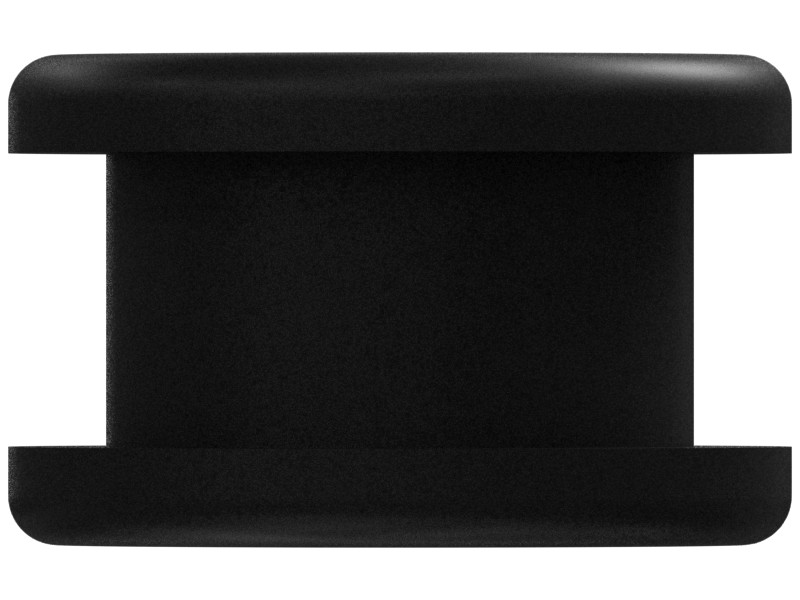

Description
The grommet is made of high-quality rubber to protect the environment in which the equipment operates and is used to prevent hoses and cables from contacting metal, preventing damage to these components from vibration, and rubbing against the surrounding structure (vibration, impact, and noise).
Features
- Has rubber flaps flaring outward on both sides of the material to hold the rubber in place.
- Durable, but its service life can be affected by a number of factors.
Applications
The grommet is used for the axle oil cooler hose harness and the camera wiring harness.
Specifications
| Type | Plain |
|---|---|
| Groove Diameter – B (+/- 0.001 in) | 0.75 in |
| Groove Diameter – B (+/- 0.0254 mm) | 19.05 mm |
| Groove Width – A | 9.52 mm (0.37 in) |
| Inside Diameter | 12.7 mm (0.5 in) |
| Material | Epichlorohydryn (ECO) Rubber |
| Outside Diameter | 25.4 mm (1 in) |
| Overall Length | 15.88 mm (0.63 in) |
Compatible Equipment
- Track Loaders: 982
- Dozers: D11T
- Wheel Loaders: 980M, 982M
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
