Description

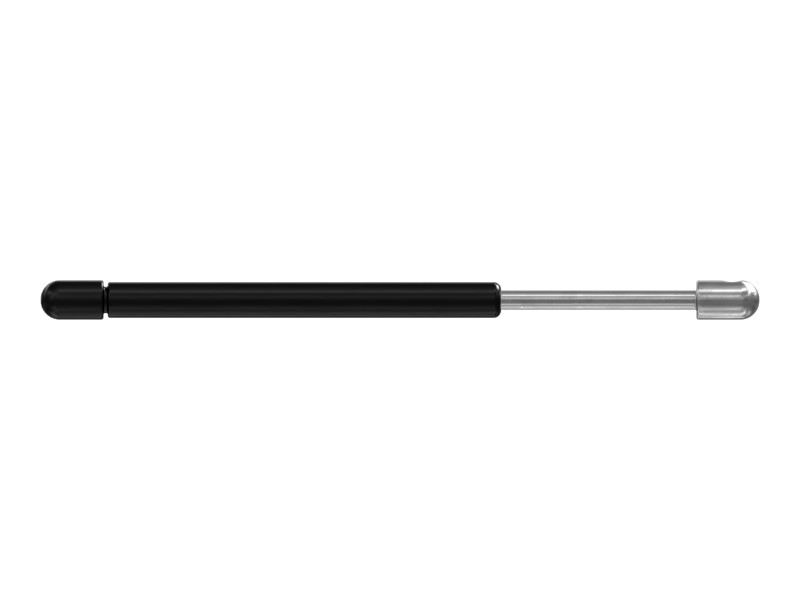

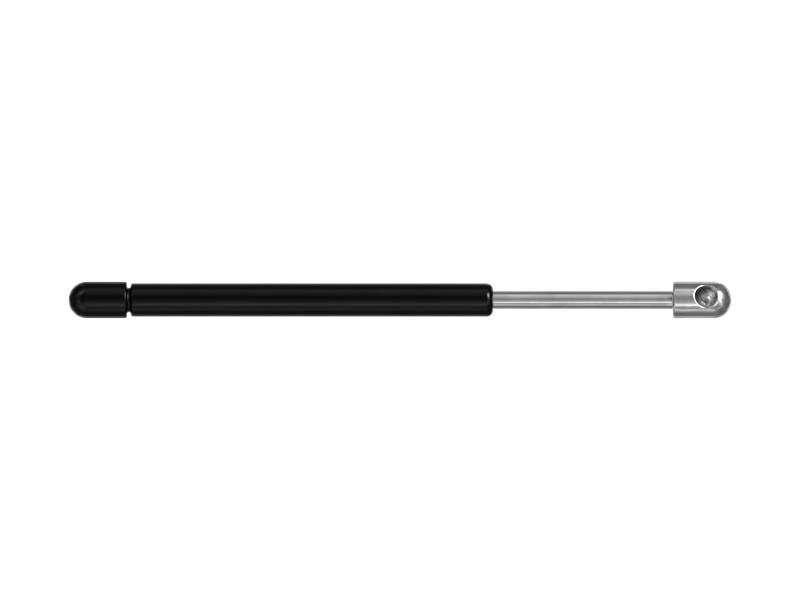

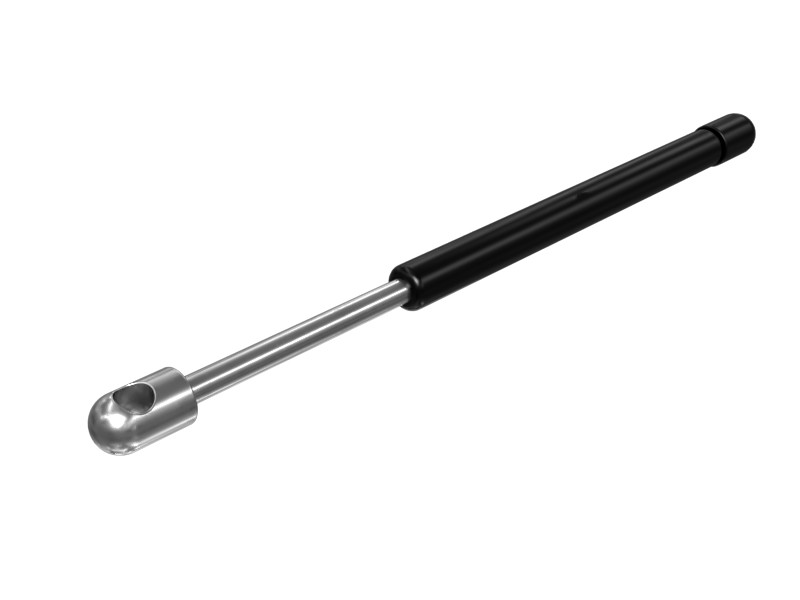

The gas spring assembly contains compressed gas in a cylinder and uses a piston to apply force.
Features
Cat® gas spring assemblies reduce release force or fully extend the piston and rod combination.
Applications
Cat gas spring assemblies are commonly used in lift-assist applications such as opening windows, doors, covers and hatches.
Specifications
| Diameter | 15 mm (0.59 in) |
|---|---|
| Length | 305 (Extended); 216 (Compressed) mm (12.008 (Extended); 8.504 (Compressed) in) |
| Thread Size | Not Specified mm |
| Rod Diameter | 6 mm (0.24 in) |
| Stroke | 89 |
| Weight | 0.13 kg (0.29 lb) |
Compatible Equipment
- Skid Steer Loaders: 226B3, 216B3, 236, 236B3, 226B
