Description

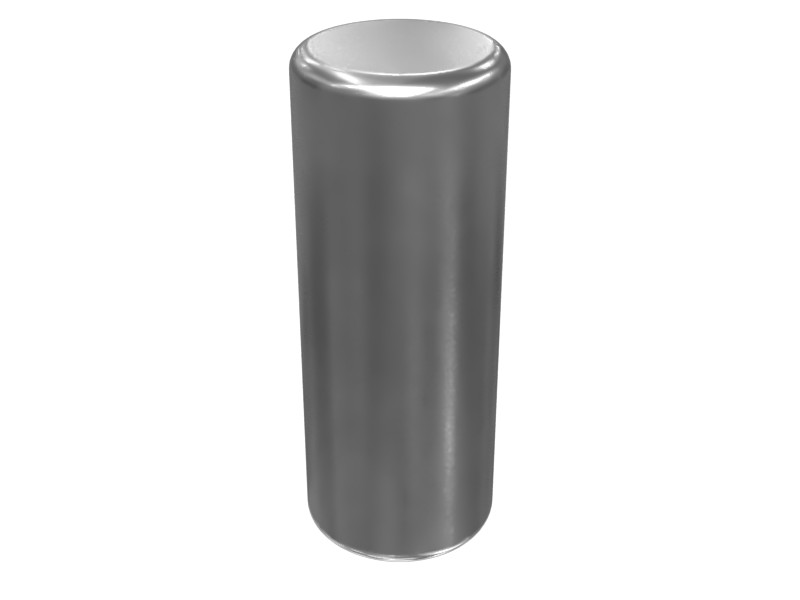

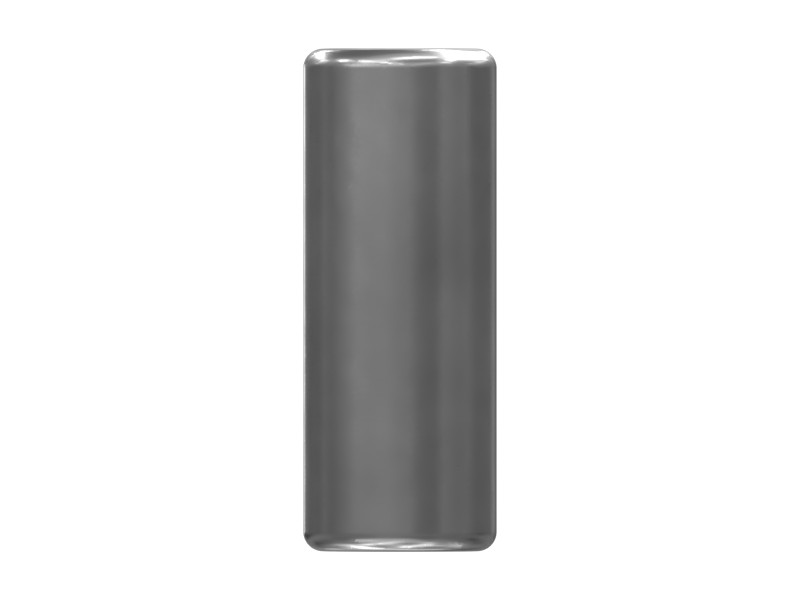

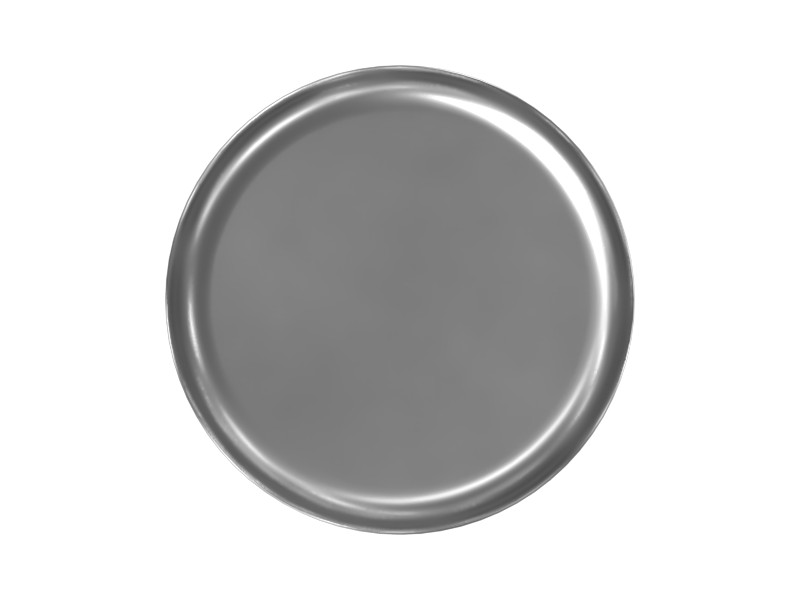

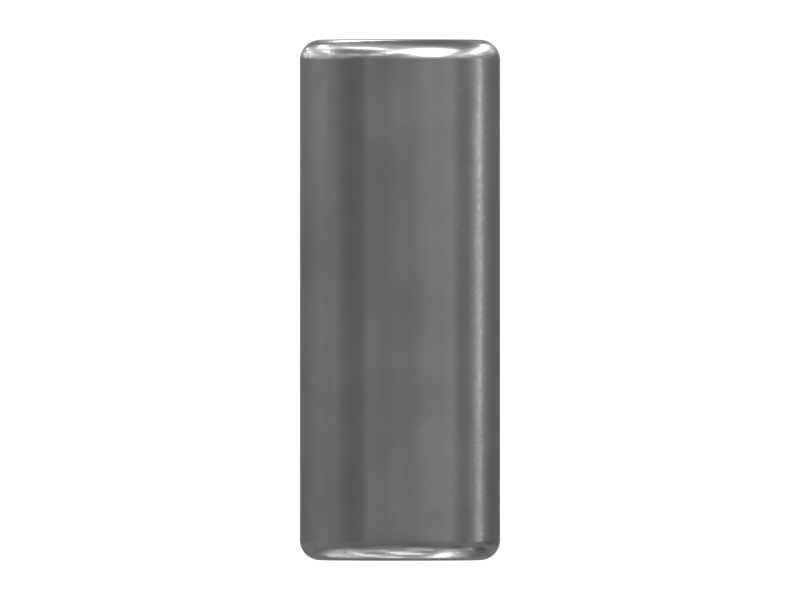

A dowel pin is a headless straight pin with a tightly controlled diameter, installed by press fit in one or two parts to transmit loads or fix the position of adjacent parts. Fasteners and fastener parts are designed for specific applications based on size, strength, clamp load and past performance. This information is not available to other manufacturers. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may look like they will work on your machine, but other companies do not know your equipment the way we do.
Specifications
| Pin Outside Diameter | 5 mm (0.197 in) |
|---|---|
| Pin Length | 13 mm (0.512 in) |
| Pin Type | Solid |
| Pin Diameter | 5 mm (0.2 in) |
| Overall Length | 13 mm (0.51 in) |
| Remarks | End Type: Radius, Radius |
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: 3512B, C7.1
- Excavators: 329D L, 320D L, 323D L, 320D RR, 328D LCR, 320D FM, 324D L, 312D, 312D L, 315D L, 637K, M325D L MH, 313D2, 325C, 314C, 313F L, 323D, 311D LRR, 312D2 L, 314D LCR, 320C, 325C L, 320D2 GC, 315C, 312C, 311C, 330D2, 325D L, 313D2 GC, 329E L, 312D2, 312C L, 323D2 L, 320D GC, 318D2 L, 325D, 312E, 320D2 L, 313D, 318D L, 324D, 312E L, 330D2 L, 314D CR, 318D2, 323D2, 312F, 320C L, 312D2 GC, 313D2-GC, 320E, 335F LCR, 315F LCR, 329E, 326D L, 320D, 329D, 320D2, 326D2 L, 329D2 L, 326D2, 329D2
- Wheel Loaders: 972M, 966M
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 314C, 314D CR, 314D LCR, 315C, 315D L, 315F LCR, 316F, 318D L, 318D2, 318D2 L, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330D2, 330D2 L, 335F LCR, 3512B, 637K, 966M, 972M, C7.1, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Motor Graders, Generator Sets |
| Part Source | Genuine OEM |
