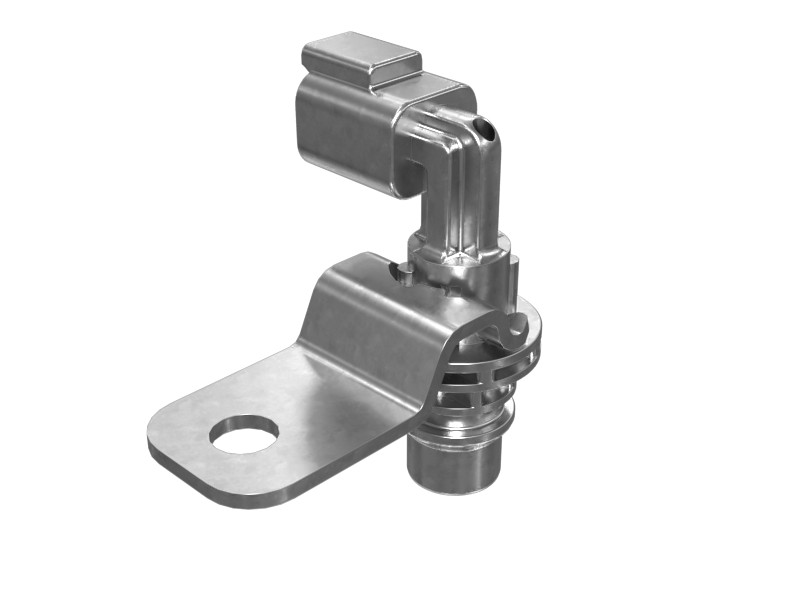

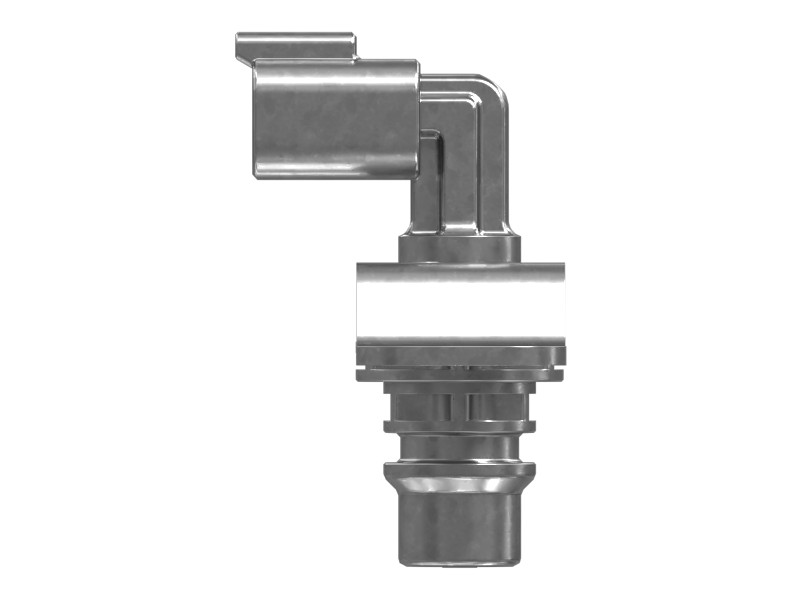

191-8305 2-Pin Variable Reluctance High Speed Sensor
Cat® Passive High Output Overmolded Speed Sensor
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
A passive speed sensor (for example, part number 191-8305) does not require any external power supply. The output signal is alternating current, and the waveform function of the actuator is generally sinusoidal in nature. Both voltage and frequency are proportional to the surface speed of the actuator as it passes the sensor pole piece. Injection-molded nylon is applied directly over the magnet and coil.
Features
- High output
- Bolt-on mounting bracket
- Extremely low cost
Applications
- High position accuracy; not recommended for applications below 50 rpm
- Low output voltage
- Typical applications include engine camshaft and transmission output
Specifications
| Material | Polyamide Plastic |
|---|---|
| Insert Length | 22.6 mm (0.89 in) |
| Hole Diameter | 18.6 mm (0.73 in) |
| Overall Length | 65.3 mm (2.57 in) |
Compatible Equipment
- Generator Sets: 3516C
- Motor Graders: 3606
- Cold Planers: PL83, PL87, PL72
- Engines: C15, C7, C175-16
- Dozers: D7R II, D6T LGP, D8T, D9, D8, D6R III, D6R, D8R, D6R LGP, D9T, D6T, D6R XL, D10T, D10T2, D6R II, D10
- Excavators: 416F2, 3508B
- Wheel Loaders: R2900 XE
- Off-Highway Trucks: 793, 740B, 735, 730, 725, 770G, 740, 772G, 725C2, 797F, 793F
Additional information
| Machine Model | 3508B, 3516C, 3606, 416F2, 725, 725C2, 730, 735, 740, 740B, 770G, 772G, 793, 793F, 797F, C15, C175-16, C7, D10, D10T, D10T2, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7R II, D8, D8R, D8T, D9, D9T, PL72, PL83, PL87, R2900 XE |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
