Description

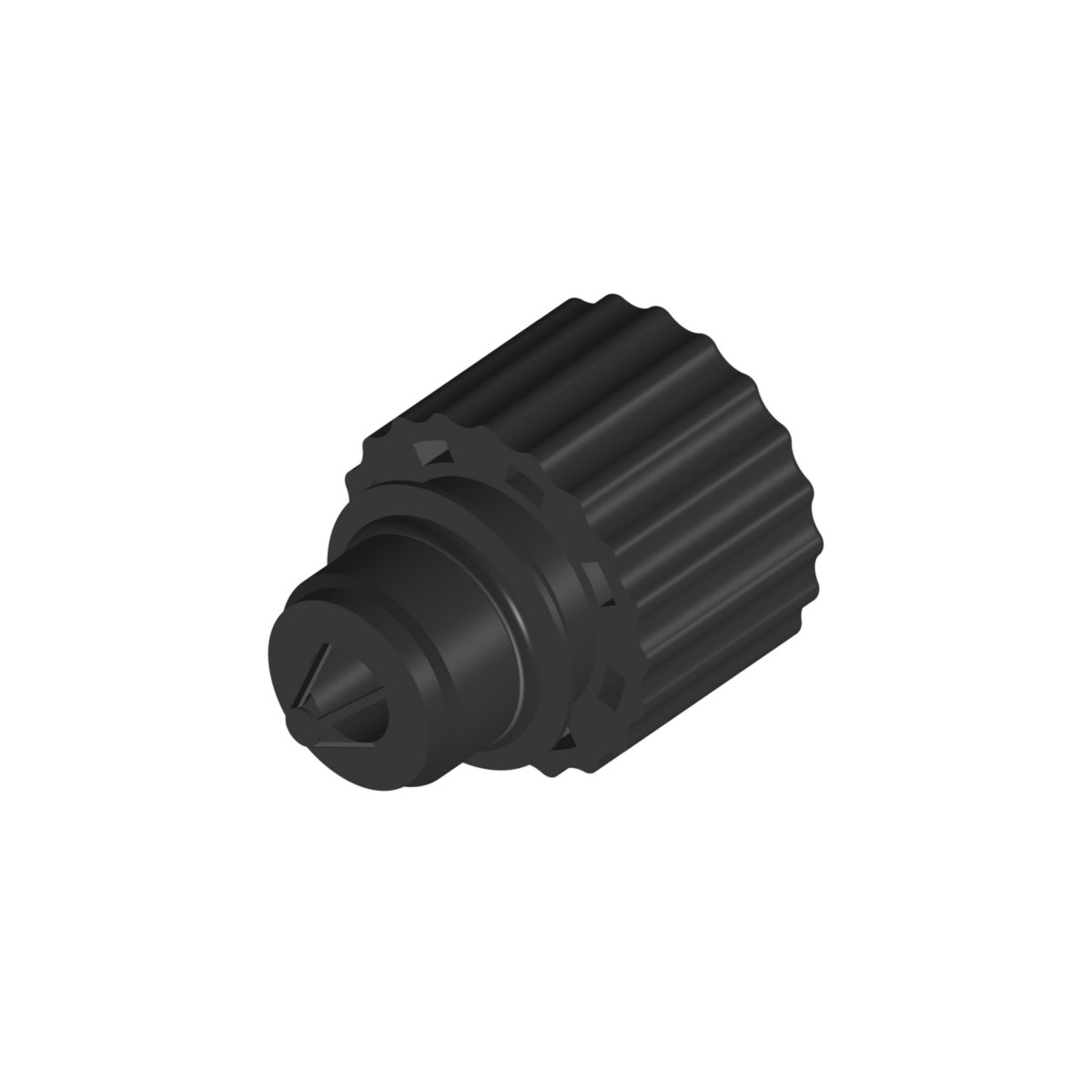

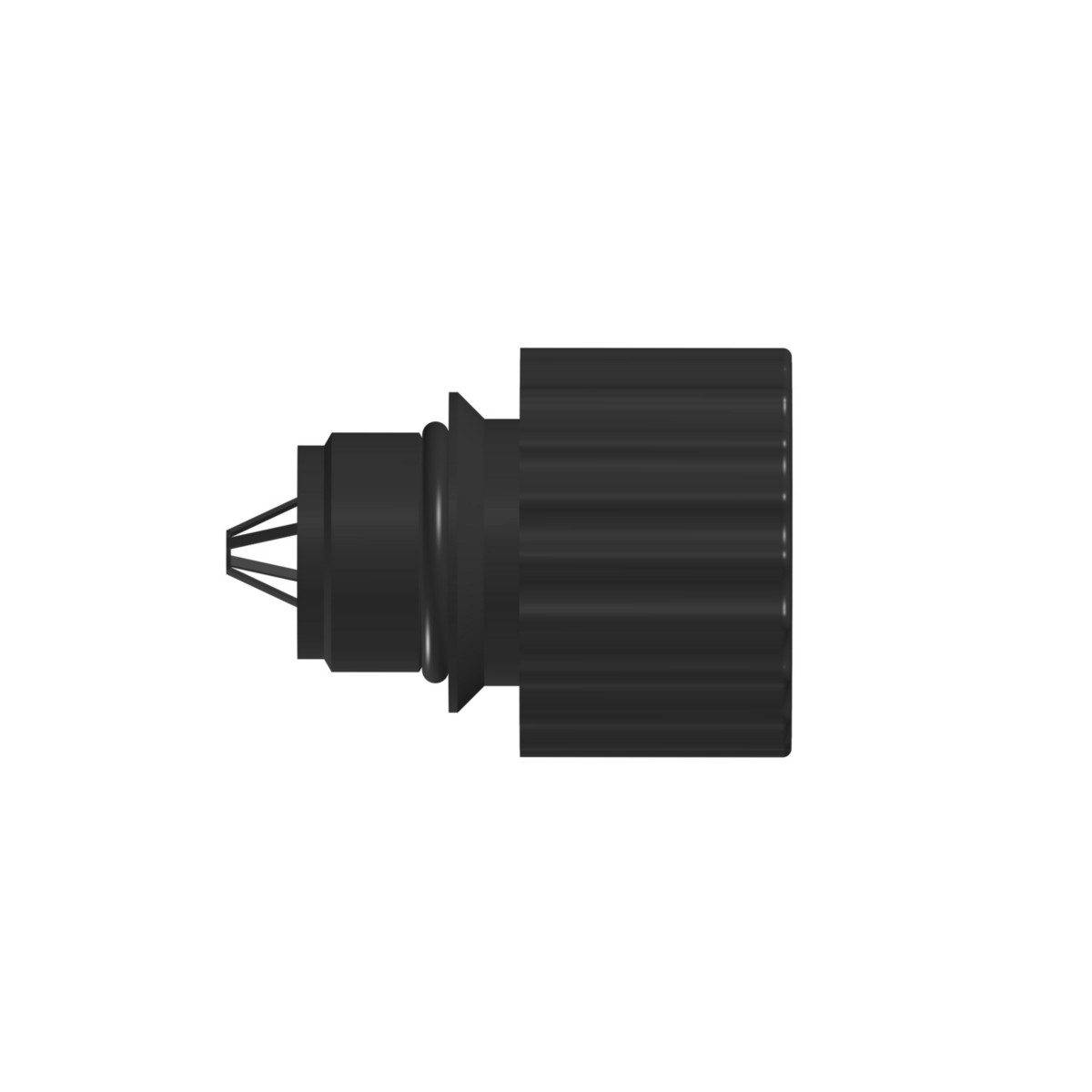

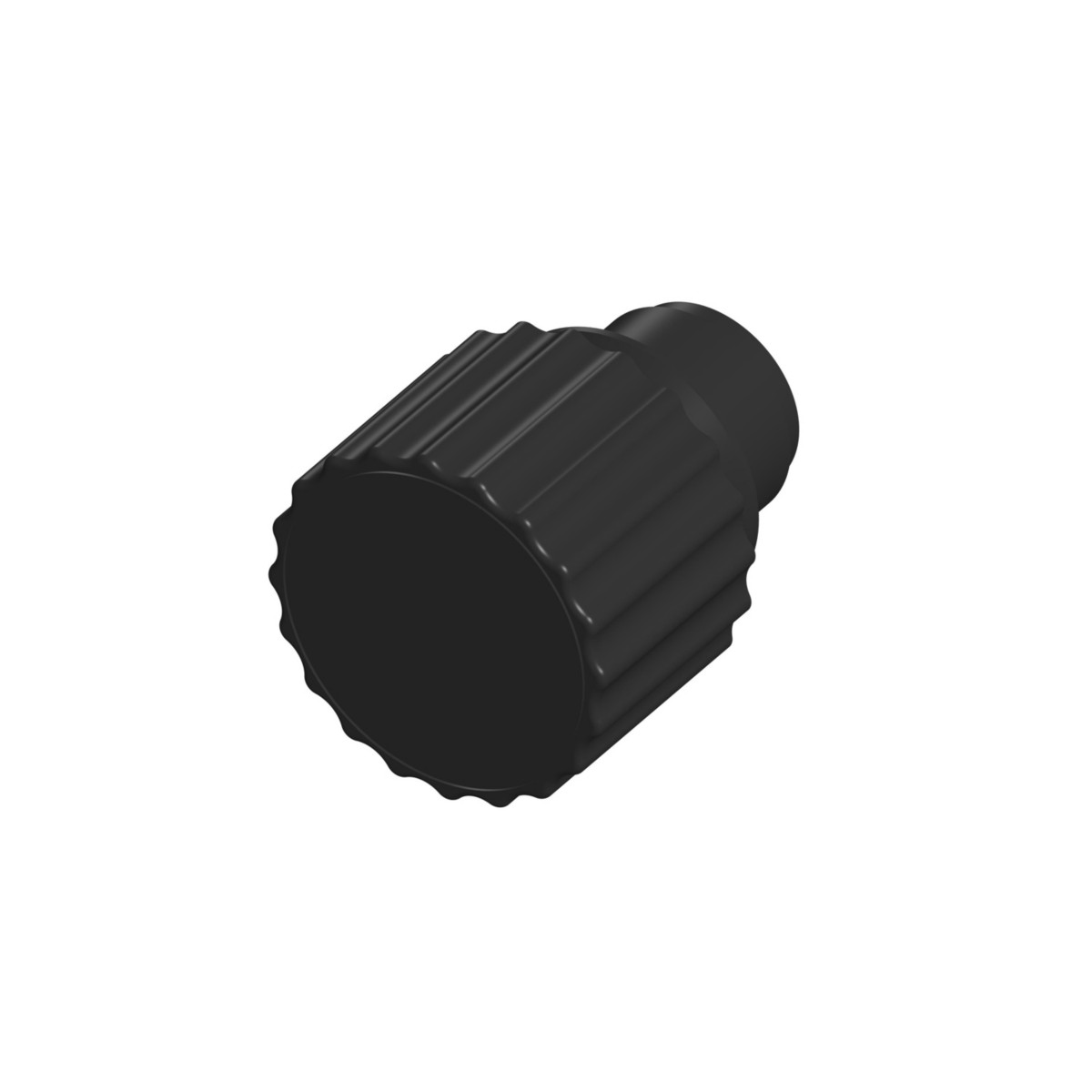

Provides filtered venting for the hydraulic tank, so air can flow into and out of the tank as needed as the fluid level in the tank changes.
Features
- Filtration Level: 7 Micron
- Vacuum Relief Setting: 2 kPa (0.29 psi)
- Pressure Relief Setting: 180 kPa (26.1 psi)
- Thread size: No. 12 male thread STOR 1-1/16-12
- Housing Material: Polyamide
- Filter Material: Cellulose-Based Resin-Impregnated Paper
- Operating temperature range: -30° to 100° C (-22° to 212° F)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 46 mm (1.811 in) |
|---|---|
| Material | Polyimide Plastic |
| Outside Diameter | 46 mm (1.81 in) |
| Length | 64 mm (2.50 in) |
| Thread Size | 1-1/16-12 in |
Compatible Equipment
- Compactors: CS-583D, CS-563E
- Dozers: D8, D7G2, D6R, D7R II, D6T, D6R II, D6T LGP, D6R XL, D6R III, D6G2 LGP, D6G2 XL, D7R, D8R, D7G, D7
- Excavators: 345B
