Description

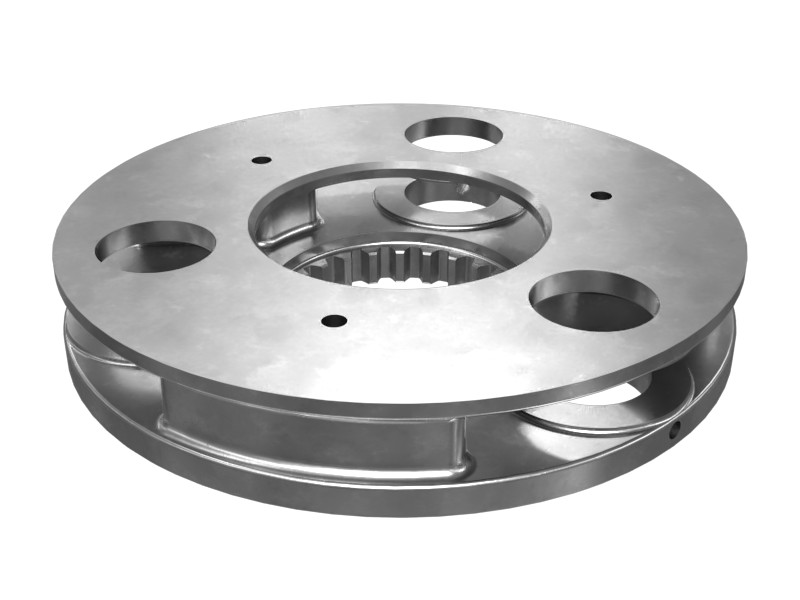

Cat powertrain components must withstand extremely high torque, high shock loads, and frequent directional shifts. Cat designs and builds transmission and final drive components with these demands in mind, ultimately improving the durability and performance of the powertrain over the life of the machine. The Cat planetary gear carrier is an important powertrain component that connects the planetary gears with the sun gear in a planetary gear system.
Features
- Cast iron planetary gear carrier

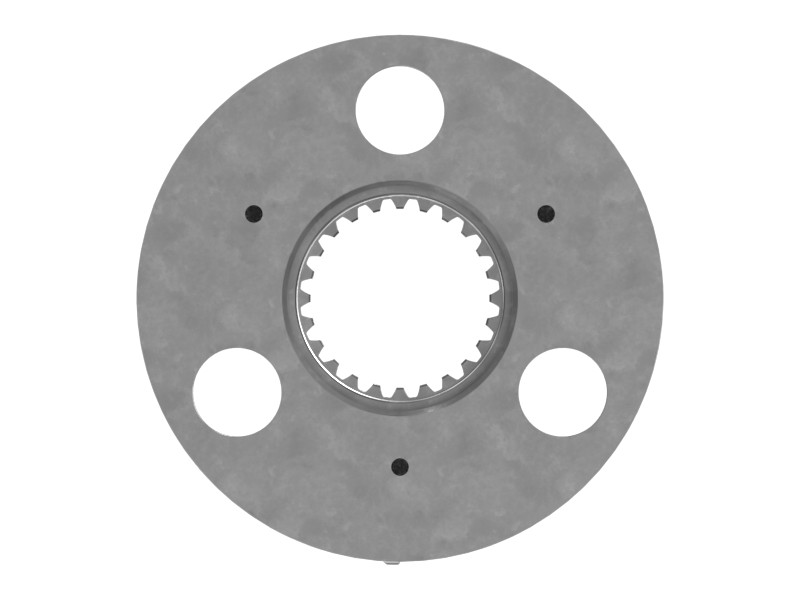

- Number of Internal Spline Teeth: 24
- Pitch Diameter: 108.000 mm (4.251 in)
Applications
Service part for final drives. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Ductile (Spheroidal) Iron |
|---|---|
| Material Description | Cast Iron |
| Outside Diameter | 312 mm (12.283 in) |
| Inside Diameter | 106.52 mm (4.193 in) |

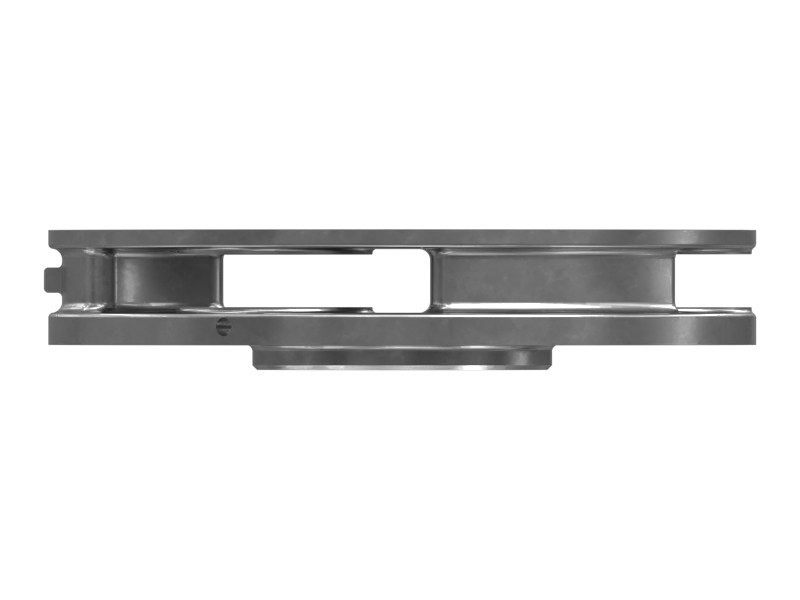

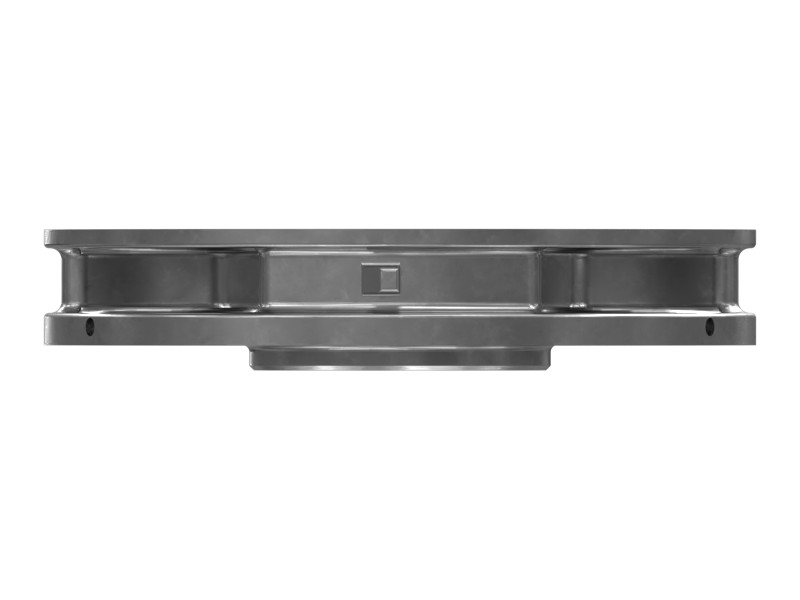

| Overall Length | 61.5 mm (2.421 in) |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 324D L, 325D, 330D2 L, 330D2, 325D L, 325C, 329D L, 320C, 329E L, 324D, 330GC, 325C L, 320D FM, 330 GC, 326D L, 329E, 329D, 329D2 L, 320D, 329D2, 326D2, 330, 326D2 L
