190-8609 22 mm Hex Size Track Adjuster Fill Valve
Cat® track adjuster fill valve is used to control track tension and position, thereby optimizing stability and performance
Description
Cat® grease fill fittings meet high standards of quality, reliability and durability and are manufactured to precise tolerances to ensure a secure connection to the grease gun and reliable performance of the internal check ball valve. They prevent contaminants from entering the machine's lubrication system. Cat grease fill fittings meet or exceed industry standards for working pressure and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Compatible with industry-standard grease gun fill heads
- Meets or exceeds the performance of industry-standard parts

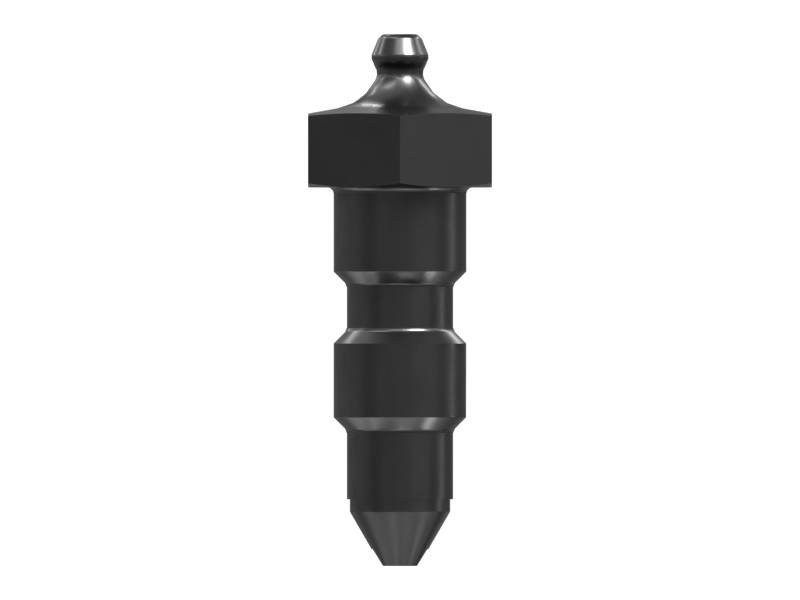

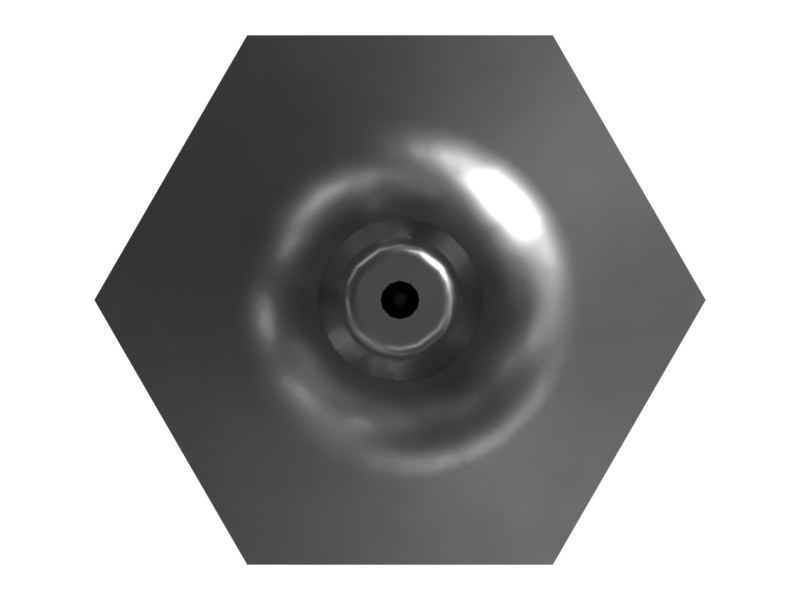

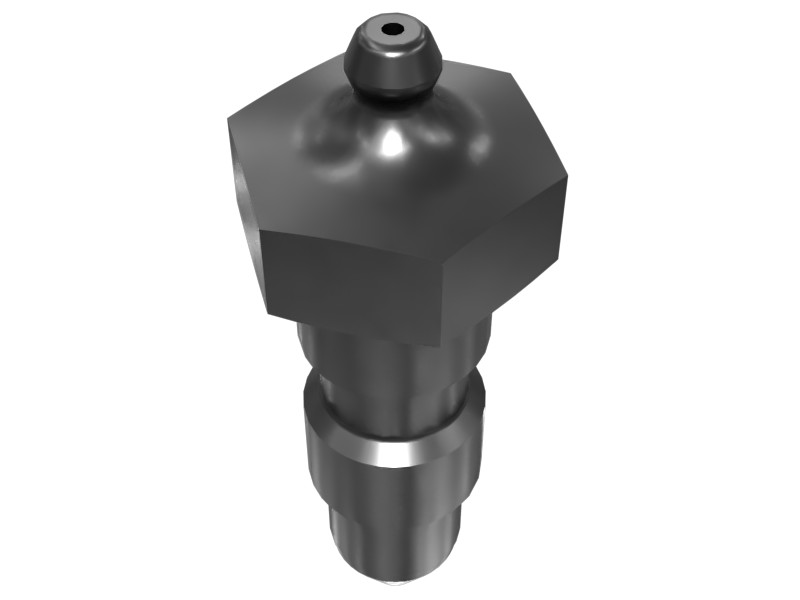

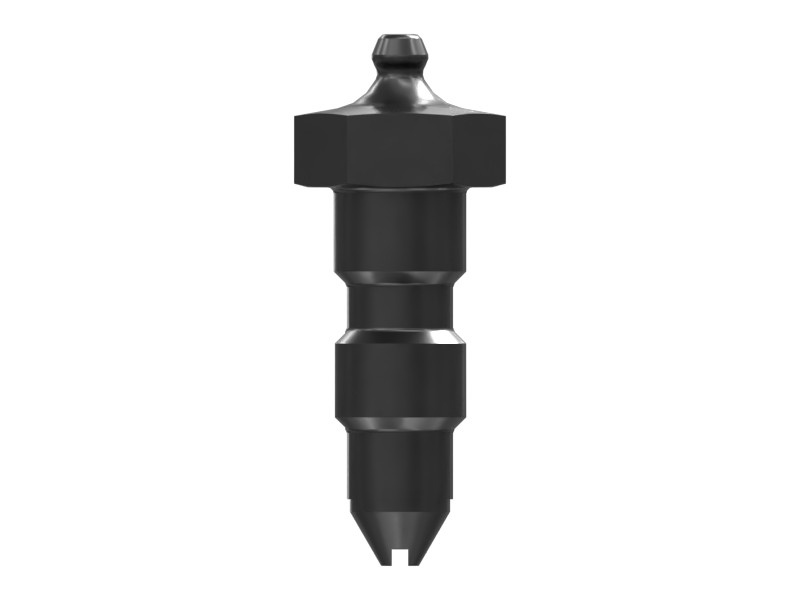

- Images provided are for reference only. Grease fill fitting construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
During regular machine maintenance, the grease fill fitting is designed to serve as the fill head for grease lubrication systems. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Zinc |
|---|---|
| Length | 63.5 mm (2.5 in) |
| Material Description | Plated Steel |
| Width | 22.86 mm |
| Height | 22.86 mm (0.9 in) |
Compatible Equipment
- Track Loaders: 973K
- Cold Planers: PM620, PL87, PM622, PL72, PL83, PL61
- Dozers: D7R II, D6T, D5K2 XL, D3K2 LGP, D7E, D7, D10, D10T2, D9R, D3G, D6R, D6R II, D6K2, D8T, D6R XL, D6R III, D4G, D7G2, D6N, D6M, D5K LGP, D6G2 LGP, D8R, D7R, D5M, D6T LGP, D6G2 XL, D5G, D5N, D9T, D5K XL, D6G, D6R LGP, D7G, D10T, D4, D9, D11R, D11T, D11, D10R, D1, D8, D11N, D10N
- Excavators: 3508B
Additional information
| Machine Model | 3508B, 973K, D1, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D3G, D3K2 LGP, D4, D4G, D5G, D5K LGP, D5K XL, D5K2 XL, D5M, D5N, D6G, D6G2 LGP, D6G2 XL, D6K2, D6M, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7G, D7G2, D7R, D7R II, D8, D8R, D8T, D9, D9R, D9T, PL61, PL72, PL83, PL87, PM620, PM622 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
