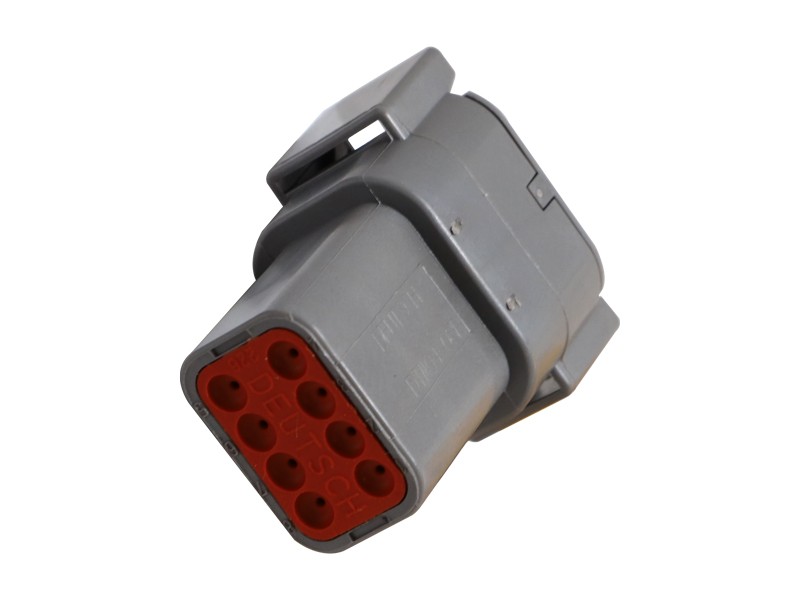

189-8846 Connector Receptacle Group
Cat® Connector Receptacle Group
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat receptacle connector groups use a pin-and-socket connection system to provide reliable electrical connections in a range of electrical applications on Cat heavy-duty equipment.
Features
- Contact Type: Pin
- Number of Contacts: 8
- Wire Size: 16-20 AWG
- Rated Current: 7.5 A
- Housing Material: Nylon
- Color: Black
- Easy to connect and disconnect
Applications
Cat receptacle connector groups provide a reliable mating connection between wires or between a wire and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Material Description | Nylon |
| Connector Type | Pin |
| Wire Gauge | 20-16 AWG |
| Length | 45.8 mm (1.8 in) |
| Width | 32.1 mm (1.26 in) |
| Height | 0.5 mm (0.81 in) |
| Standard Color | Black |
| Pin | 8 |
Compatible Equipment
- Wheel Loaders: 950H, 972H, 950G, 966H, 980H, 980G, 962G, 972G, R1700 XE
