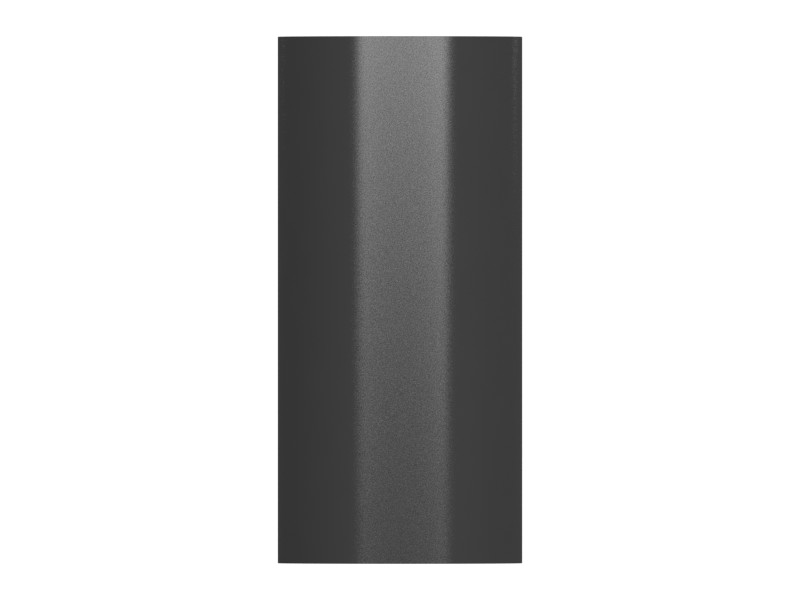

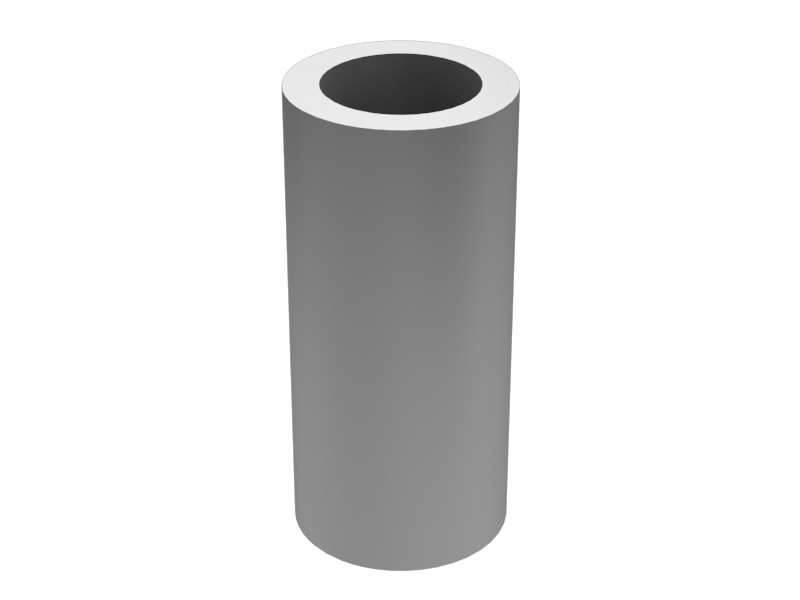

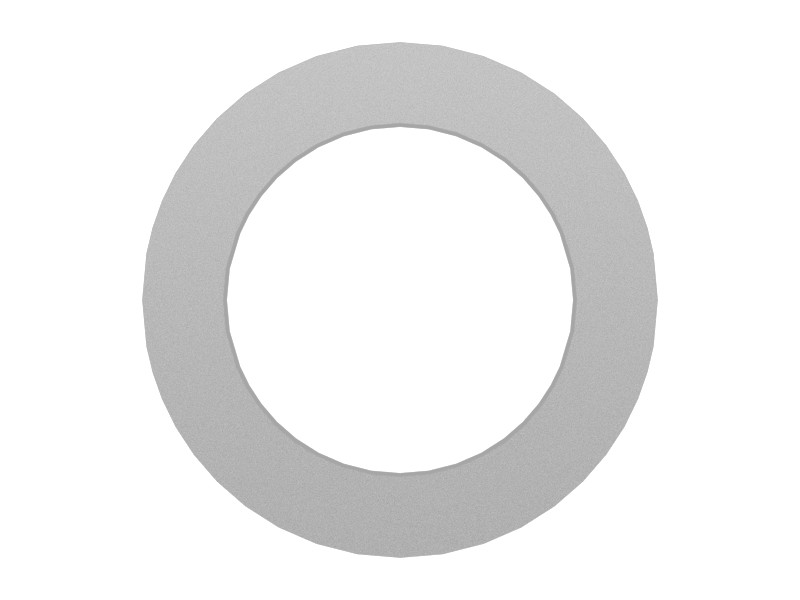

189-8772 34.5 mm Thick Shim
Cat® shim sits under the bolt head to distribute pressure when tightening or provide equalization between two surfaces.
Description
A shim is a thick ring made of metal, rubber, or plastic that is held under a nut or bolt head to spread pressure or provide equalization between two surfaces when tightened.
Features
- Material: Steel
- Outside Diameter: 16 mm (0.62 in)
- Inside Diameter: 11 mm (0.43 in)
- Overall Length: 35 mm (1.37 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Length | 35 mm (1.37 in) |
|---|---|
| Gasket Type | Flat |
| Outside Diameter | 16 mm (0.62 in) |
| Inside Diameter | 11 mm (0.43 in) |
| Thickness | 34.5 mm (1.358 in) |
| Coating | Mechanical Zinc |
Compatible Equipment
- Generator Sets: 3406C, 3516C
- Track Loaders: 982, 826K
- Cold Planers: PM620, PM622
- Compactors: 834K, 825K, C13B, 824K
- Engines: C7, C13, C15, C18
- Excavators: 3126, 329D, 349F L, 3516E, 349E, 621H, 349E L, 349, 349E L VG, 352F, 352, 621K, M325D L MH, 3508B, 355, 325D L, 325C, 324D, 325D, 329D L, 325C L, 324D L
- Asphalt Pavers: AD45
- Skid Steer Loaders: 3126B
- Motor Graders: 14, 18, 140K, 12K, 160K, 140G, 120H, 16, 16M3
- Wheel Excavators: MD6200
- Dozers: D5N, D6N
- Wheel Loaders: 966F, 950H, 972H, 966H, RM500B, 980, R2900 XE, 834, 988K, 836
- Off-Highway Trucks: 775G, 773, 730, 735, 725
Additional information
| Machine Model | 120H, 12K, 14, 140G, 140K, 16, 160K, 16M3, 18, 3126, 3126B, 324D, 324D L, 325C, 325C L, 325D, 325D L, 329D, 329D L, 3406C, 349, 349E, 349E L, 349E L VG, 349F L, 3508B, 3516C, 3516E, 352, 352F, 355, 621H, 621K, 725, 730, 735, 773, 775G, 824K, 825K, 826K, 834, 834K, 836, 950H, 966F, 966H, 972H, 980, 982, 988K, AD45, C13, C13B, C15, C18, C7, D5N, D6N, M325D L MH, MD6200, PM620, PM622, R2900 XE, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
