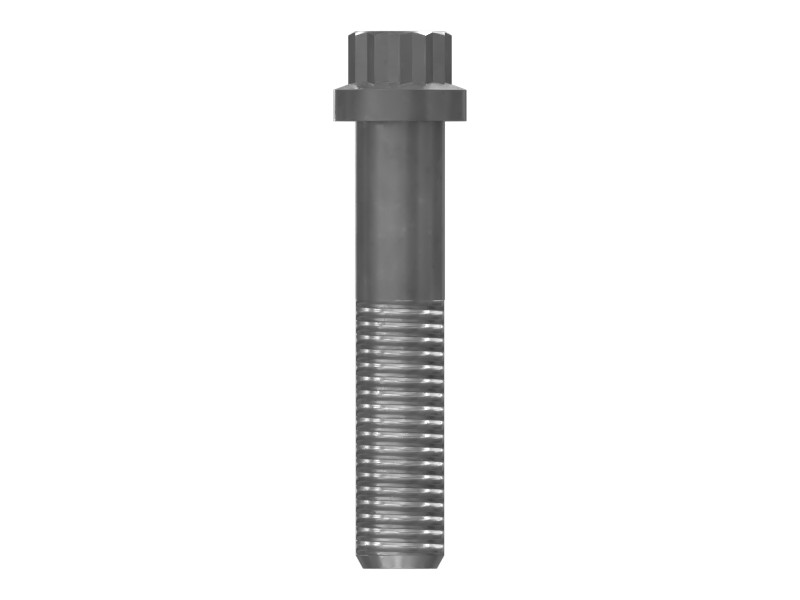

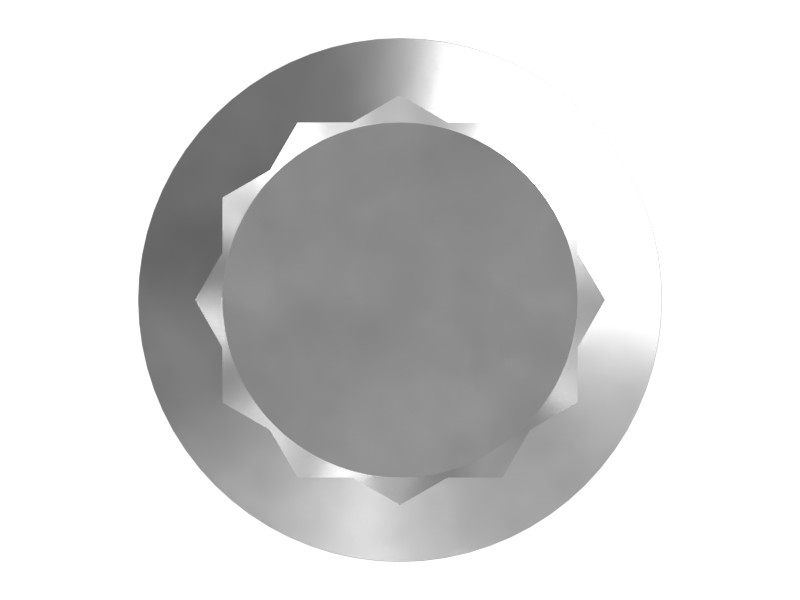

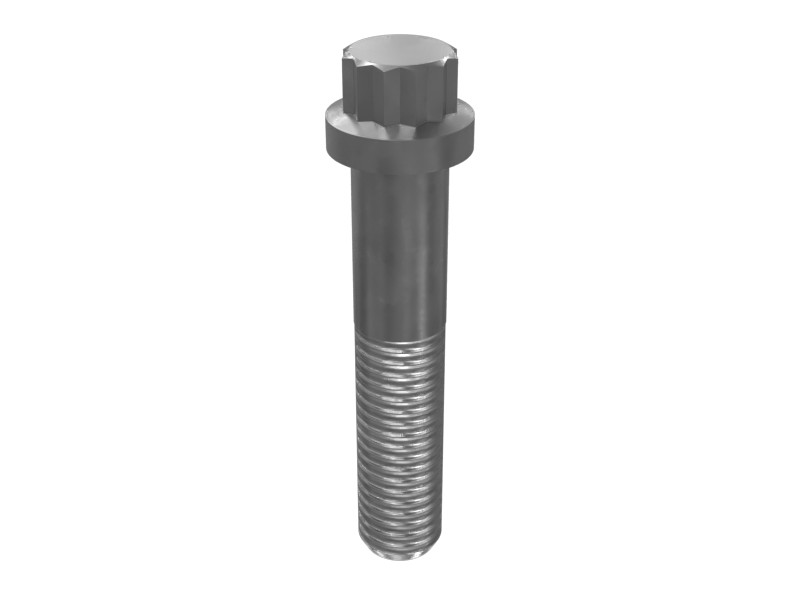

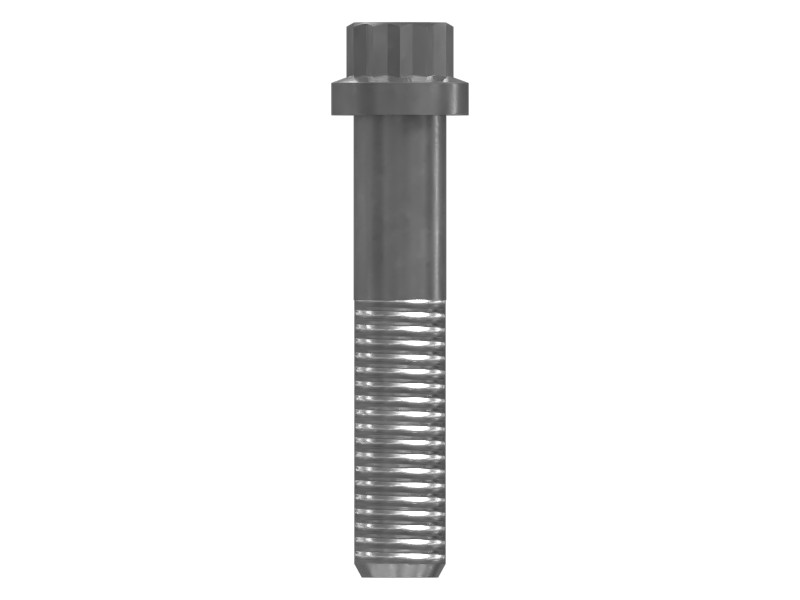

189-6123 M12X1.75 Thread 12-Point Head Bolt
Cat® M12x1.75 Thread 60 mm Long 12-Point Head Bolt
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are commonly used in engines and driveline. 12-point head bolts have high fatigue performance and fit designs that do not have enough clearance for hex head bolts.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M12 mm (0 in) |
|---|---|
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Thread Direction | RH |
| Locking Feature | None |
| Type | 12-Point Head Bolt |
| Bolt Length | 60 mm (2.362 in) |
| Bolt Type | 12 Point Head |
| Coating | Zinc Phosphate and Oil |
| Thread Size (Diameter × Pitch) | M24X2 mm |
| Handle Length | 24 mm (0.945 in) |
| Flange Diameter | 18 mm |
Compatible Equipment
- Generator Sets: C9
- Cold Planers: PL83, PM-200
- Compactors: C9.3B, C-9
- Engines: C13, C11
- Dozers: D6T LGP, D10, D6T, D7R II, D8T, D6R III, D6R II, D7R, D6R, D6R XL, D9
- Wheel Loaders: 910, R1700 XE, 980G, 980H, R1700G, R1600H
- Off-Highway Trucks: 793, 745, 740, 740 GC, 745C, 770G, 793F, 772G
- Asphalt Pavers: AD30
Additional information
| Machine Model | 740, 740 GC, 745, 745C, 770G, 772G, 793, 793F, 910, 980G, 980H, AD30, C-9, C11, C13, C9, C9.3B, D10, D6R, D6R II, D6R III, D6R XL, D6T, D6T LGP, D7R, D7R II, D8T, D9, PL83, PM-200, R1600H, R1700 XE, R1700G |
|---|---|
| Equipment Type | Wheel Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
