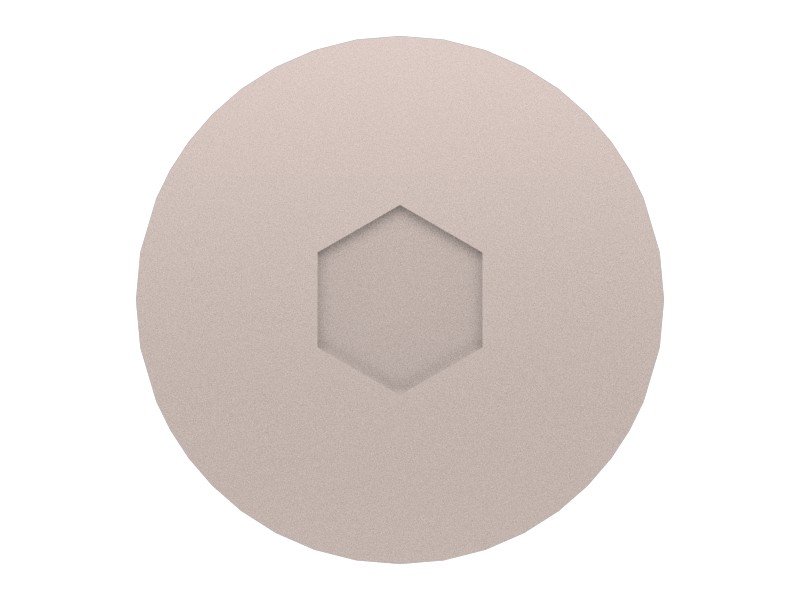

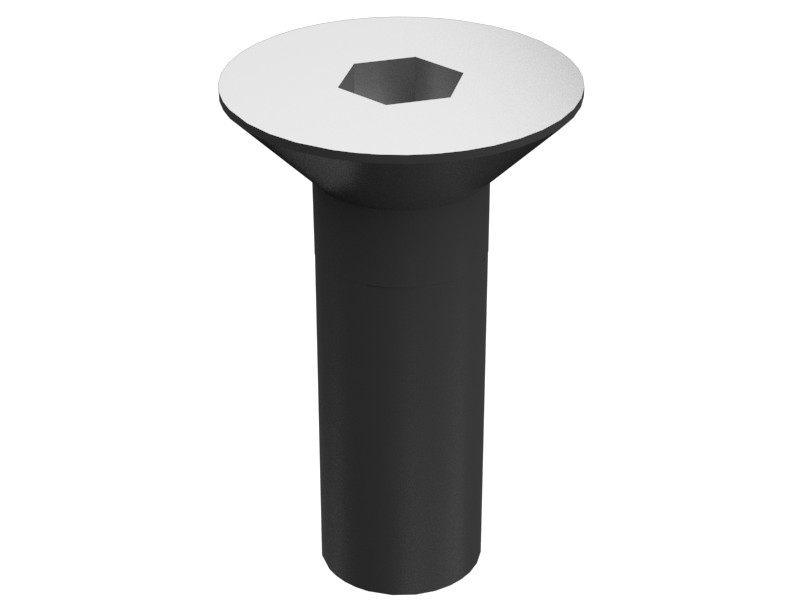

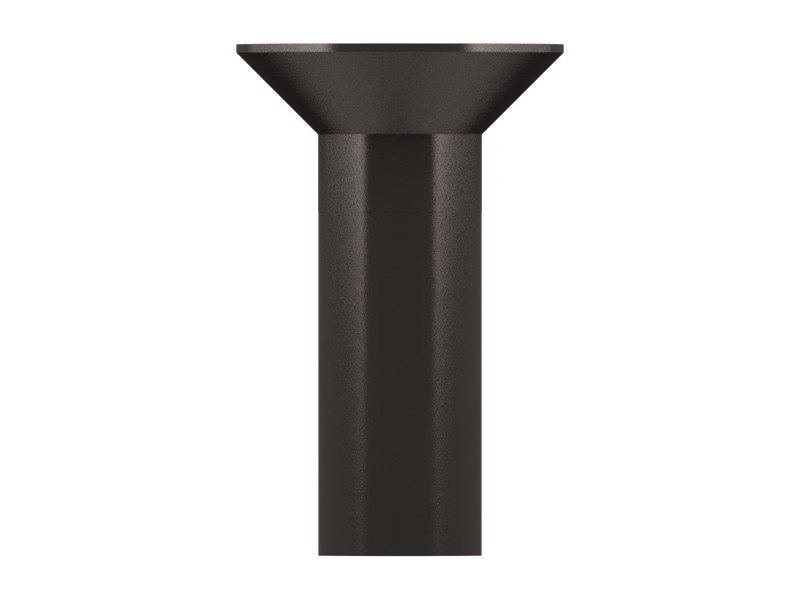

188-9644 25 mm Long Flat Head Screw

Description

Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

Used where the clearance between parts is important so that the parts fit together tightly.

Features

Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
Coating meets the special requirements of different applications (RoHS compliant).

Applications

Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.

Specifications

Thread Direction	RH
Material	Alloy Zinc
Locking Feature	None
Bolt Type	Countersunk (Flat)
Coating	Zinc Electroplated (96 Hour Salt Spray Test)
Thread Size (Diameter × Pitch)	M8x1.25 mm
Class or Grade	ISO 898-1 Class 10.9
Bolt Length	25 mm (0.984 in)
Handle Length	8.2 mm (0.323 in)
Thread Size	M8 mm (0 in)

Compatible Equipment

Motor Graders: 16M, 120, 14M, 140H, 12H, 16H, 120H, 14
Generator Sets: C4.4, C7.1, C9
Wheel Excavators: M315GC, M315, M313D, M315D, M317D2, M322D, M315D2, M320
Engines: C7
Dozers: D8, D6T, D6R III, D7R II, D6R II, D8T, D9T, D7
Mini Excavators: 305.5E, 305E2, 305.5E2, 303.5E, 303.5D, 307E2, 308
Excavators: 316 GC, 313 GC, 330D L, 305E2 CR, 313, 303.5CR, 303CR, 312 GC, 320C, 320 GX, 323 GX, 325D L, 324D, 324D L, 323D L, 329D L, 336D L, 325D, 330D, 315D L, 312D, 345C L, 345D, 365C, 416F2, 428F, 365C L, 390D, 385C FS, 345C, 385C, 385C L, 416E, 345D L, 434F2, M325D L MH, 330C, 325C, 330C L, 320D3, 336D, 303.5E2 CR, 390D L, 374D L
Wheel Loaders: M314
Off-Highway Trucks: 794 AC, 740B, 7495
Asphalt Pavers: AP355F, AP300F, AP-600D

Machine Model	120, 120H, 12H, 14, 140H, 14M, 16H, 16M, 303.5CR, 303.5D, 303.5E, 303.5E2 CR, 303CR, 305.5E, 305.5E2, 305E2, 305E2 CR, 307E2, 308, 312 GC, 312D, 313, 313 GC, 315D L, 316 GC, 320 GX, 320C, 320D3, 323 GX, 323D L, 324D, 324D L, 325C, 325D, 325D L, 329D L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 345C, 345C L, 345D, 345D L, 365C, 365C L, 374D L, 385C, 385C FS, 385C L, 390D, 390D L, 416E, 416F2, 428F, 434F2, 740B, 7495, 794 AC, AP-600D, AP300F, AP355F, C4.4, C7, C7.1, C9, D6R II, D6R III, D6T, D7, D7R II, D8, D8T, D9T, M313D, M314, M315, M315D, M315D2, M315GC, M317D2, M320, M322D, M325D L MH
Equipment Type	Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Engines, Generator Sets
Part Source	Genuine OEM

Machine Model

120, 120H, 12H, 14, 140H, 14M, 16H, 16M, 303.5CR, 303.5D, 303.5E, 303.5E2 CR, 303CR, 305.5E, 305.5E2, 305E2, 305E2 CR, 307E2, 308, 312 GC, 312D, 313, 313 GC, 315D L, 316 GC, 320 GX, 320C, 320D3, 323 GX, 323D L, 324D, 324D L, 325C, 325D, 325D L, 329D L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 345C, 345C L, 345D, 345D L, 365C, 365C L, 374D L, 385C, 385C FS, 385C L, 390D, 390D L, 416E, 416F2, 428F, 434F2, 740B, 7495, 794 AC, AP-600D, AP300F, AP355F, C4.4, C7, C7.1, C9, D6R II, D6R III, D6T, D7, D7R II, D8, D8T, D9T, M313D, M314, M315, M315D, M315D2, M315GC, M317D2, M320, M322D, M325D L MH

Equipment Type

Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Engines, Generator Sets

Part Source

Genuine OEM
