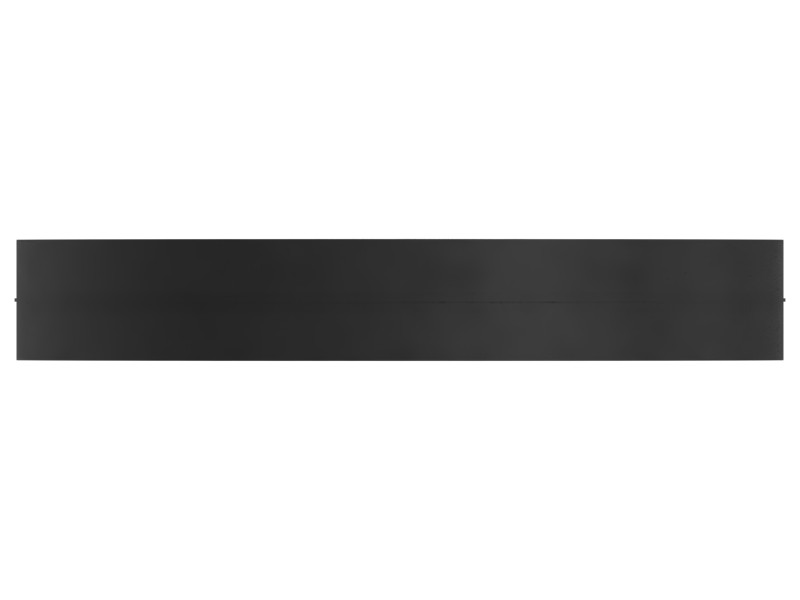

188-7541 Fuel Pump Seal
Cat® 21.90 mm ID Seal for Fuel Priming Pump
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Fuel system seals are designed and manufactured specifically to work in fuel systems, and use both an O-ring and a rectangular cross-section design.
Features
Cat® fuel system seals undergo additional advanced inspection to ensure reliable performance in this critical application. They are made from materials compatible with the fluids, temperatures and pressures in Cat fuel systems. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some seals are coated with PTFE (Polytetrafluoroethylene) to minimize seal twisting and cutting during installation.
Our seals are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat® seals protect your investment.
Applications
Fuel system seals are used in engine fuel systems.
Specifications
| Cross-Section Diameter | 5 mm (0.2 in) |
|---|---|
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Overall Width | 22 mm |
| Seal/O-Ring Type | Polygon |
| Material Description | FKM provides excellent performance in most applications, including air, engine oil, diesel fuel, hydraulic oil, automatic transmission fluid and biodiesel. Most FKM formulations must not be used with coolant/urea. FKM is effective at high temperatures and has good abrasion and cut resistance. |
| Coating | None |
| Overall Length | 22 mm |
| Seal Type | Rectangular |
| Material | FKM – Fluoroelastomer |
| Outside Diameter | 31.9 mm (1.255 in) |
| Inside Diameter | 21.9 mm (0.862 in) |
| Cross-Section Width | 5.0 mm (0.196 in) |
| Cross-Section Thickness | 5.0 mm (0.196 in) |
Compatible Equipment
- Generator Sets: 3516C, C7.1, 3512E, C9, 3512B
- Track Loaders: 982, 972, 992, 816F, 824G, 826G, 973K, 993, 990K, 826K, 834H, 826H
- Cold Planers: PL87, PL83, PM622, PM620, PL72
- Compactors: C9.3B, 824K, 834K, 825K, C13B
- Engines: C32, C13, C15, C27, C11, C7, C18, C175-16
- Excavators: 320D2, 336D2, 326D2, 326D2 L, 329D2, 329D2 L, 374F, 390F L, 374, 330D L, 349F L, 352, 329E L, 329E, 349, 395, 6030, 350, 3508B, 355, 336D2 L, 6015B, 325D L, 329D L, 336D L, 637G, 324D L, 336D2 XE, 330D2, 336F LN, 320, 323, 336E LN, 336D2 GC, 323D2 L, 336F L XE, 336E L, 336F, 336E LH, 320 GC, 318D2 L, 336F L, 336E H, 320D2 GC, 336E, 330D2 L, 313D2, 313D2 GC, 313D2-GC, 323D2, 318D2, 3516E, 6040, 330C L, 325C, 390F, 637K, 3512C, 349D L, 621H, 349E L, 349E L VG, 340D2 L, 6060, 349E, 345D L, 352F, 6020B, 374F L, 621K, 3516B, M325D L MH, 6015, 637E, 350MHPU, 3101
- Asphalt Pavers: AD63, AD45, AD30
- Skid Steer Loaders: 24
- Motor Graders: 14M, 18, 160K, 16M3, 140K, 12K, 14, 16, 16M, 12H, 120H
- Wheel Excavators: MD6200
- Dozers: D7, D9, D11T, D8, D6R II, D6R LGP, D6R XL, D6T, D8T, D10R, D10T2, D11R, D6R III, D9T, D5N, D6T LGP, D6N, D8R, D11, D7E, D7R, D6R, D10, D8N
- Wheel Loaders: RM400, 980, 966, 834, 950 GC, 980G, 972H, 988K, 836, 980H, 966H, R2900 XE, 990H, 950L, 962L, 972L, 966L, 966K, 950H, 980L, RM500B, R1700G, R2900G, 986H, 988H, R3000H
- Off-Highway Trucks: 785D, 735, 730, 789D, 793D, 773, 740, 745, 789, 785, 740 GC, 773F, 740B, 772G, 770G, 745C, 725C2, 725, 773E, 775G, 777E, 777, 793
