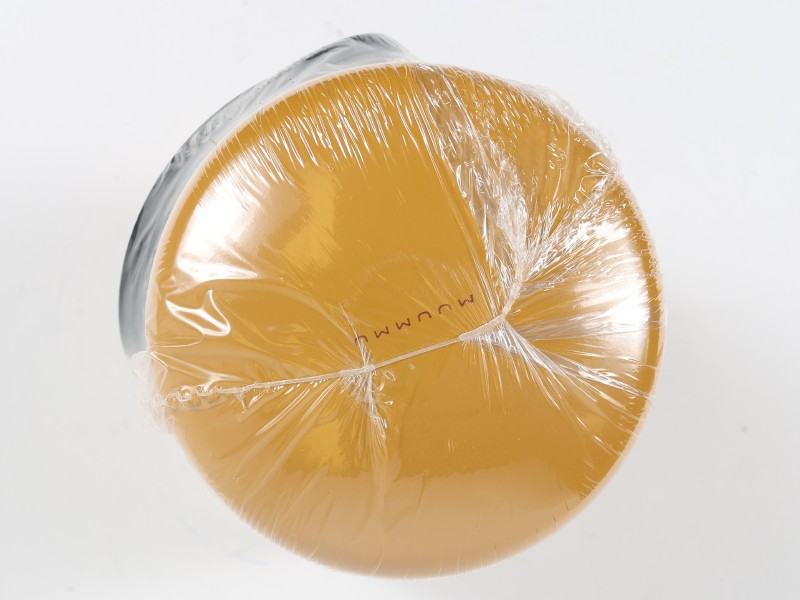

188-7027 25 Micron Filter Element
Cat® 25 Micron Filter Element for Fuel Water Separators
Fitment data not listed — send us your machine model or serial number to confirm.
Description
The filter element is made of high-quality corrosion-resistant and wear-resistant materials. With a filtration rating of 25 microns, it effectively removes particles as small as 25 microns from the system. This filtration rating is critical for protecting sensitive components.
Features
- Made of cellulose filter media, a highly efficient filtration material that captures a variety of contaminants, including dirt, debris and water
- Element maximum flow rate of 60 gallons per minute (GPM)
- Removes up to 700 mL of water from fuel at a pressure drop of 20 pounds per square inch differential (PSID)
Applications
The filter element is a high-performance filtration system designed to remove contaminants and water, and is widely used in Cat machines.
Specifications
| Weight | 1.44 kg (3.2 lb) |
|---|---|
| Height | 289.3 mm (11.4 in) |
| Diameter | 129.5 mm (5.1 in) |
| Flow Direction | Out-to-In |
| Filter Type | Spin-On |
| Length | 270.7 mm (10.657 in) |
| Efficiency Category | Standard Efficiency |
| Material | Aluminum Housing with Cellulose |
Additional information
| Part Source | Genuine OEM |
|---|
