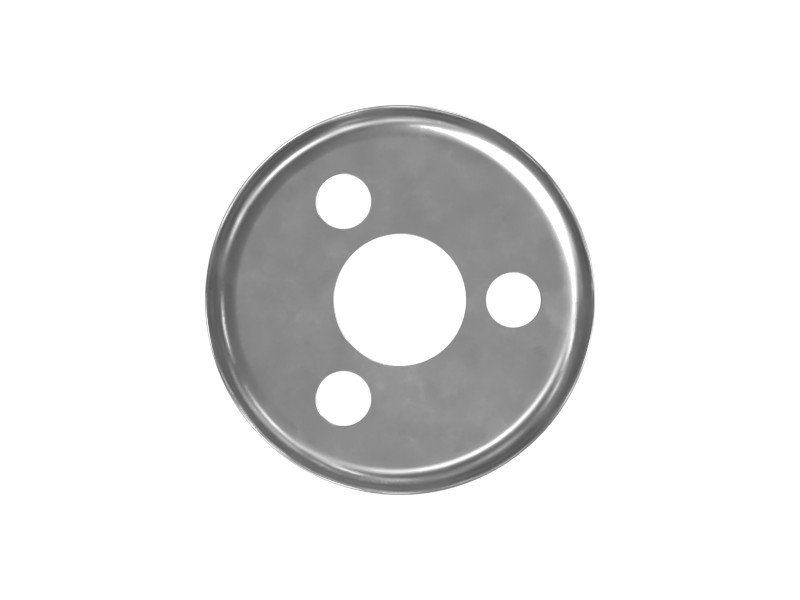

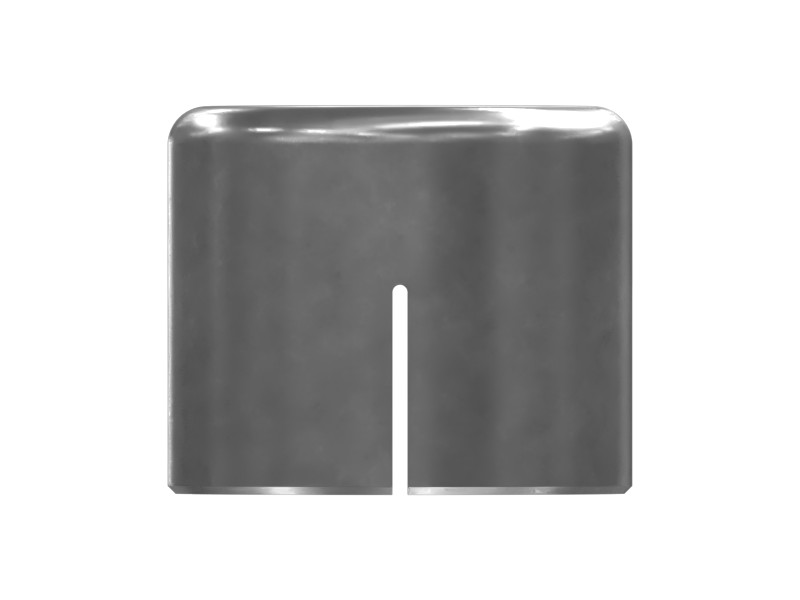

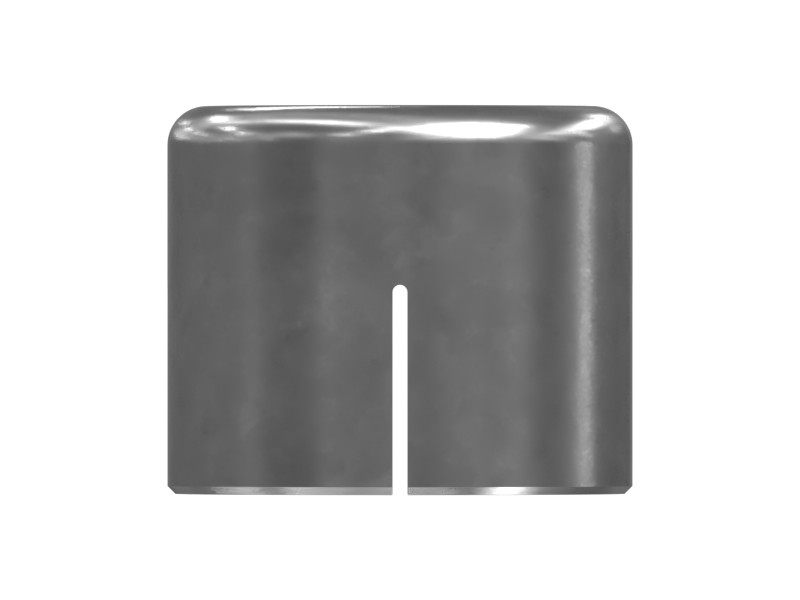

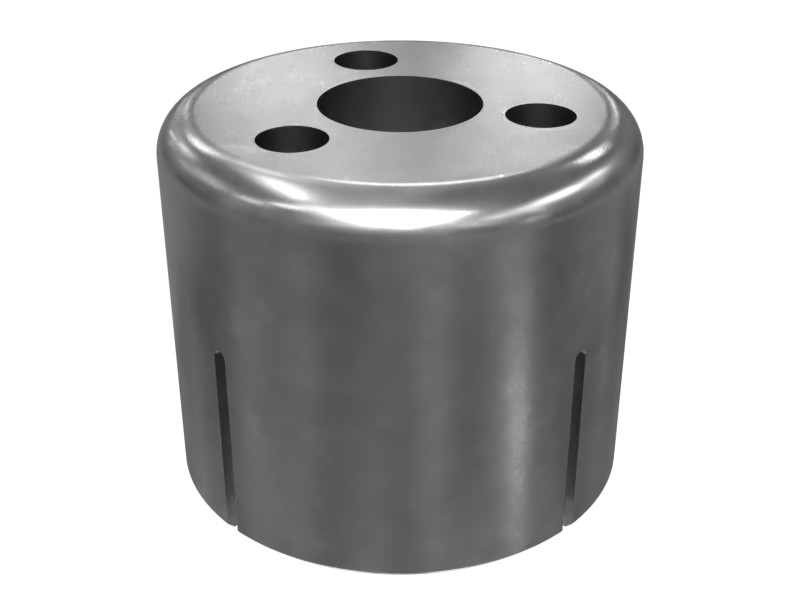

186-9181 60 mm OD Pin Retainer Collet
Cat® 60 mm OD Steel Pin Retainer Collet for Steering Cylinders and Rock Buckets
Description
Cat® machine collet pin retainers provide a rigid fit between the linkage pin and the supporting structure, eliminating wear between the pin and the structure. Collets can be installed and removed without special tools. Cat collet pin retainers are for use with Cat collet pins only.
Features
Cat collet pin retainers are made from ductile iron or steel bar and heat treated for excellent strength and toughness. Properly tightened Cat collet pin retainers eliminate all movement and wear between the pin and the supporting structure. They work as an integral part of the pin joint system on specific Cat equipment, and their performance has been tested and proven in the world's toughest applications.
Specifications
| Material | Low Alloy Steel |
|---|---|
| End Taper | 1:8 |
| Collet Type | Straight |
| Center Hole | Through mm |
| Outside Diameter | 60 mm (2.36 in) |
| Pitch Diameter | 48 mm (1.89 in) |
| Center Hole Shape | Non-Threaded |
| Length | 50 mm (1.97 in) |
Compatible Equipment
- Wheel Loaders: R1700K, R1700G, R2900G, R1300G, R1600H
- Asphalt Pavers: AD30
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
