Description

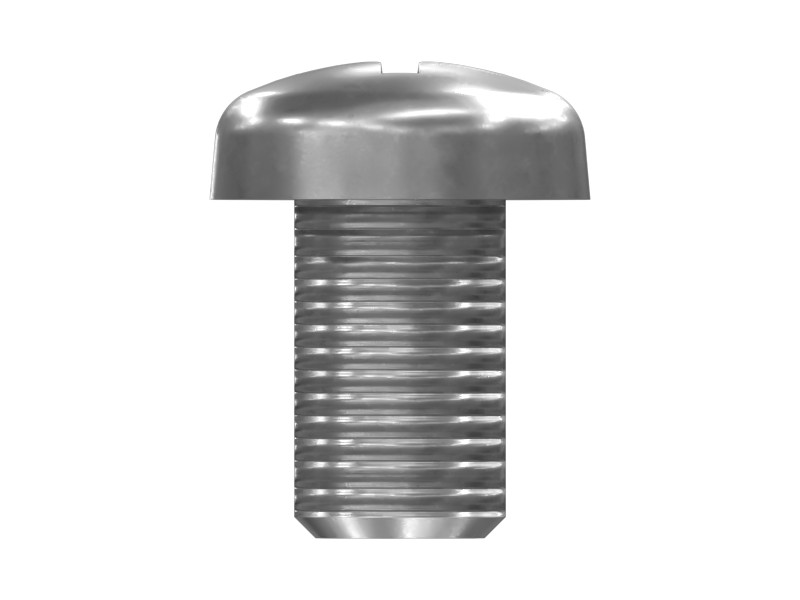

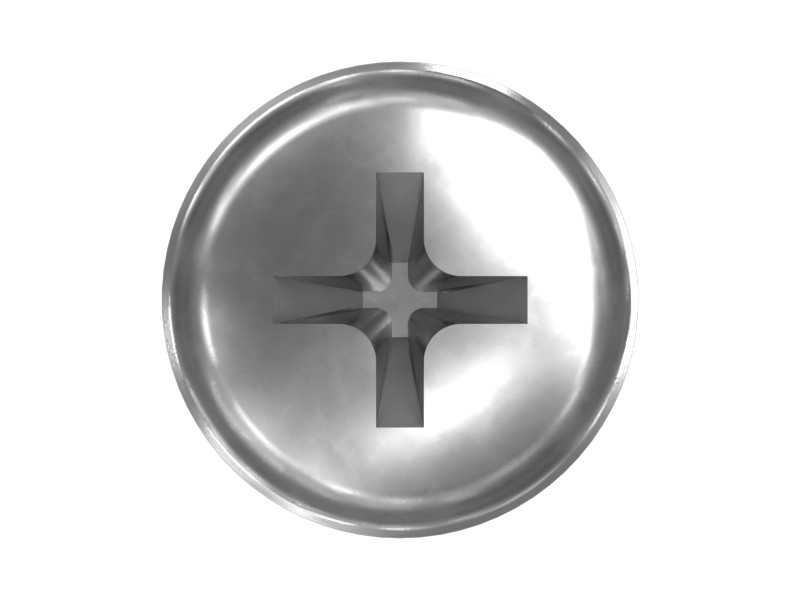

Machine screws are available in a variety of head styles, drive types, sizes, and materials.
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Specifications
| Thread Size | M5 mm (0 in) |
|---|---|
| Bolt Type | Rounded Head (Pan) |
| Class or Grade | ISO 898-1 Class 4.8 |
| Bolt Length | 8 mm (0.315 in) |
| Thread Direction | RH |
| Head Type | Oil Pan |
| Coating | Protective Organic Coating |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M5X0.8 mm |
| Length | 8 mm |
| Handle Length | None mm (0.063 in) |
Compatible Equipment
- Motor Graders: 349 GC
- Wheel Excavators: M315, M320
- Compactors: CB10
- Mini Excavators: 308, 305.5 GC, 307C, 307, 306, 308.5, 310, 305.5E2, 308E2, 307E2, 306.5
- Excavators: 374, 313, 313 GC, 365B, 325, 315 GC, 336, 352, 336 GC, 320C, 340, 323, 320 GC, 315C, 312C L, 325C, 315, 320C L, 350, 314C, 355, 330 GC, 311C, 312C, 330GC, 320, 330C L, 330C, 325C L, 335, 395, 349, 326, 345 GC, 302.7CR, 305 CR, 350MHPU, 3101, 326GC, 330, 307.5, 308E, 305, 306E2, 307E
- Wheel Loaders: M314
Additional information
| Machine Model | 302.7CR, 305, 305 CR, 305.5 GC, 305.5E2, 306, 306.5, 306E2, 307, 307.5, 307C, 307E, 307E2, 308, 308.5, 308E, 308E2, 310, 3101, 311C, 312C, 312C L, 313, 313 GC, 314C, 315, 315 GC, 315C, 320, 320 GC, 320C, 320C L, 323, 325, 325C, 325C L, 326, 326GC, 330, 330 GC, 330C, 330C L, 330GC, 335, 336, 336 GC, 340, 345 GC, 349, 349 GC, 350, 350MHPU, 352, 355, 365B, 374, 395, CB10, M314, M315, M320 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Motor Graders, Compactors |
| Part Source | Genuine OEM |
