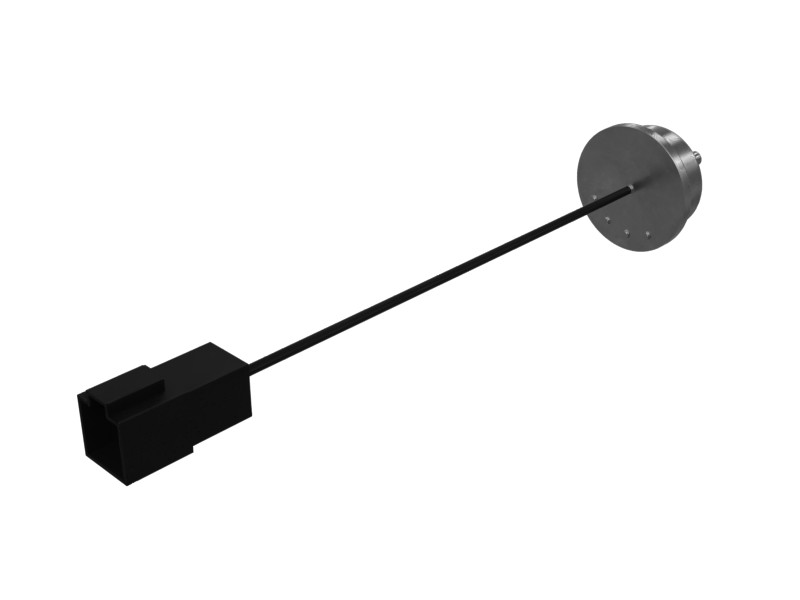

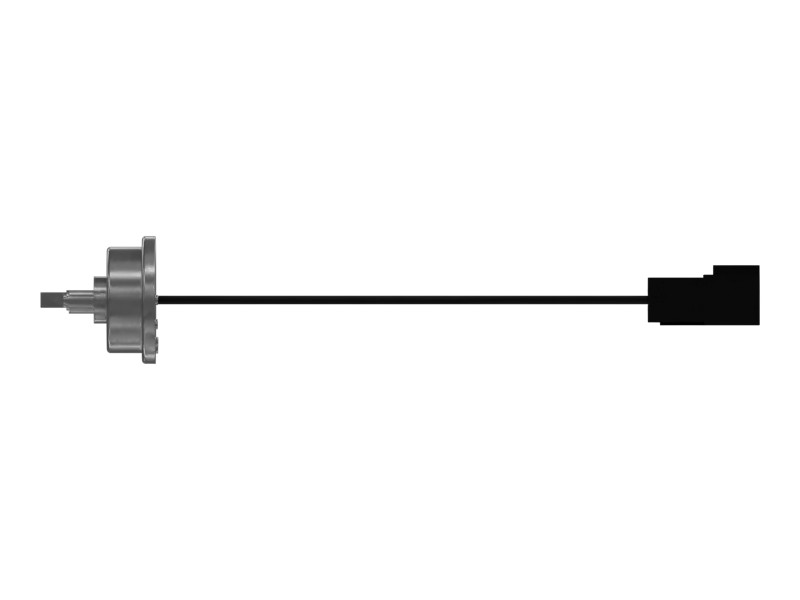

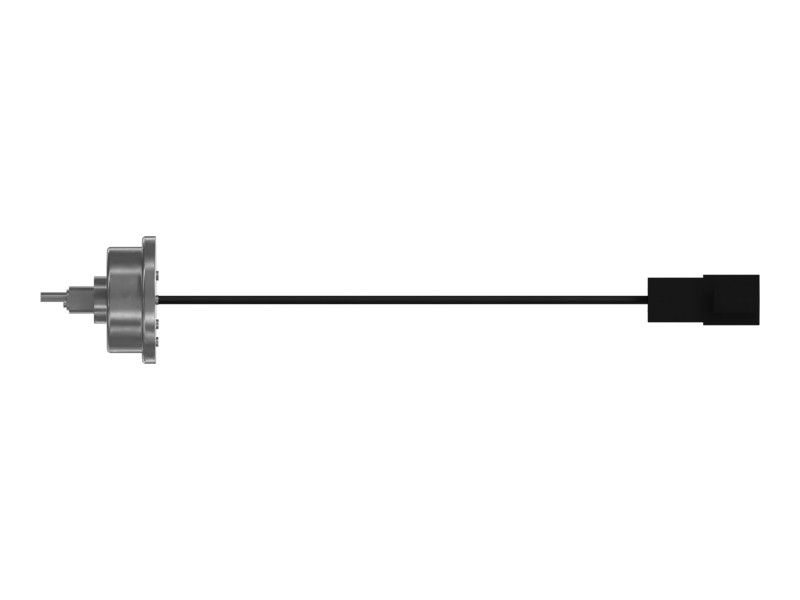

185-6335 Rotary Switch Group
Cat® Rotary Switch Group (3 Position) (Variable Gear Control)
Description
Cat parts help keep your equipment running at its best. Cat Rotary Switches include a spindle that provides various indexing angles and is rotated manually to reach different positions for all-wheel drive/variable position control.
Features
- 3-Position Rotary Switch

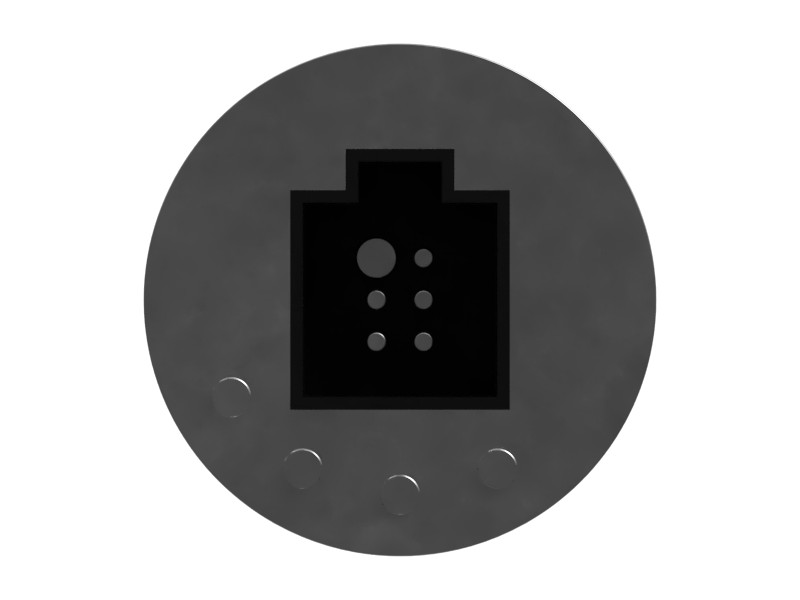

- 6-pin DT connector
- Panel Thickness: 1.2-5 mm (0.05-0.2 in)
- Heavy-Duty Construction
- High precision ensures stable performance
- Rugged, durable design with long service life
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
Operator console for Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts operate in heavy-duty applications with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, moisture, corrosion, and dust.
Specifications
| Diameter | 52.57 mm (2.07 in) |
|---|---|
| Shaft Diameter | 6.35 mm |
| Lead Length | 200 mm (7.87 in) |
| Hex Size | 19.06 mm |
| Spindle Diameter | 0.25 in |
| Thread Size | 7/16-28 in |
Compatible Equipment
- Motor Graders: 14, 120
- Wheel Loaders: 950H, 962G, 972H, 980H, 950G, 966H, 972G, 980G, 986H, R2900G, R3000H
