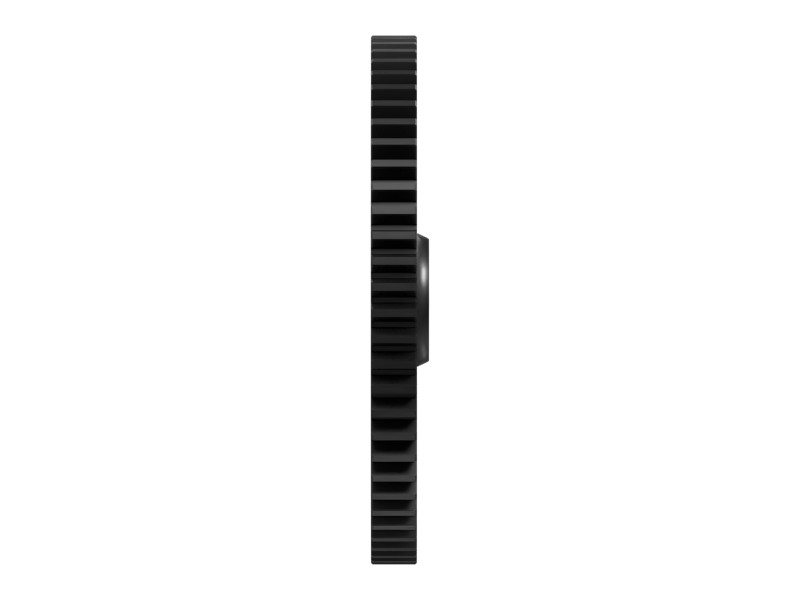

184-9902 6-Blade Eccentric Weight Housing Puller Fan
Cat® 6-blade pull-type fan for paving compactor vibratory system, OD X width: 300 X 42.21 mm
Description
184-9902 is a pull-type fan used for the eccentric weight housing in the vibratory system of certain paving compactor models. Cat fans are tested for harsh working environments. They are specially designed with rugged construction and excellent function, and require almost no maintenance.
Features
- 6-blade pull-type fan
- Material: Steel
- Counterclockwise rotation
- Outside Diameter: 300 mm (11.81 in)
- Width: 42.2 mm (1.66 in)
- Hole Size: 6.6 mm (0.26 in), 4 places; 9 mm (0.35 in), 4 places
Applications
For use in the vibratory system of certain paving compactor models. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hole Size | 6.6 (4X); 9 (4X) mm (0.26 (4X); 0.35 (4X) in) |
|---|---|
| Material | Carbon Steel |
| Outside Diameter | 300 mm (11.81 in) |
| Width | 42.2 mm (1.66 in) |
Compatible Equipment
- Generator Sets: C4.4
- Compactors: CB-564D, CB-534D, CB-66B, CB16, CB-44B, CB-434D, CB-64B, CB10, CB13, CB15
- Engines: C32
