Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These nuts are used where a washer alone is not suitable.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-2 Class 10 |
|---|---|
| Thread Size (Diameter × Pitch) | M10x1.5 mm |
| Thread Direction | RH |
| Thread Size | M10 mm (0 in) |
| Grade | 10 |
| Drive Chain | 14 mm (0.551 in) |
| Hole Thread Pitch | 1.5 |
| Material Description | ISO Class 12 or SAE Grade 8 Equivalent |
| Coating | Phosphate and Oil |
| Thickness | 9.8 mm (0.386 in) |
| Thread | RH Coarse |

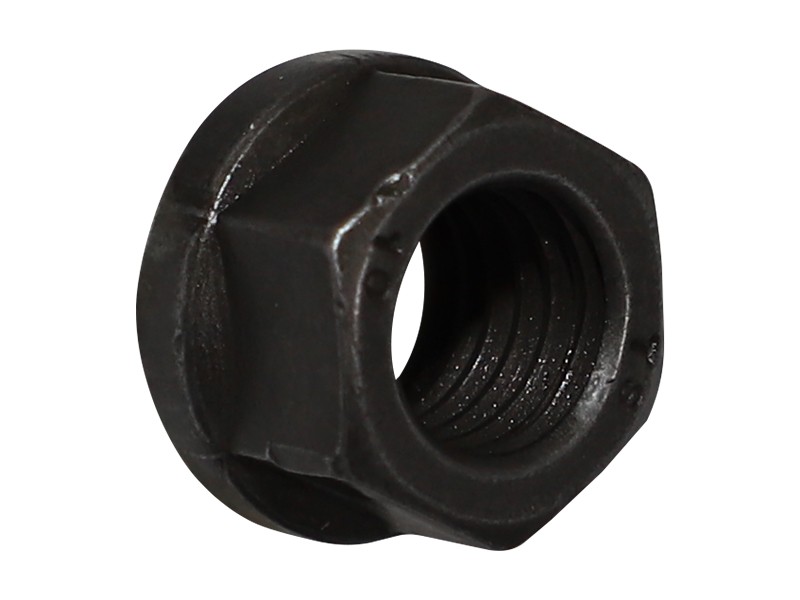

| Nut Model | Hex Flange |
| Thread Size (in – TPI) | M10-1.5 in |
Compatible Equipment
- Generator Sets: C9
- Engines: C13, C11
- Dozers: D6R II, D7R II
- Excavators: 345B
- Off-Highway Trucks: 785, 793, 793F
Additional information
| Machine Model | |
|---|---|
| Equipment Type | Excavators, Dozers, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
