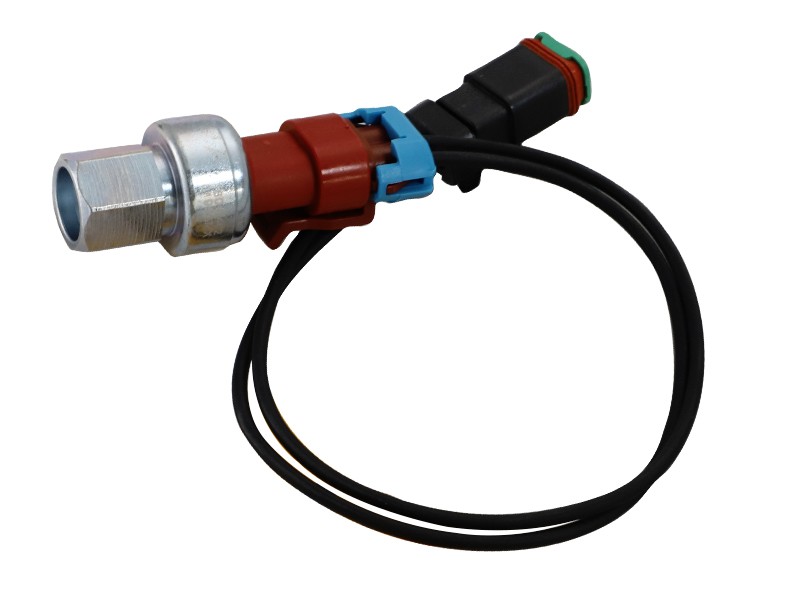

180-5462 Air Conditioning High and Low Pressure Switch
Cat® air conditioning high and low pressure switch with pressure sensing that triggers an actuator mechanism at a set pressure, for air conditioning lines.
Description
Cat pressure switch groups are designed to turn on and off in response to changes in the system set pressure. Cat parts ensure your equipment runs at its best.
Features
- Pressure switch with pigtail connector
- Low Set Actuation Pressure: 275 kPa (40 psi)
- High Set Actuation Pressure: 2800 kPa (406 psi)
- Contact Position: Normally Open
- Connector Type: 2-Pin DT
- Media: R12 and R134 Freon
- Thread Size: 7/16-20
- Dustproof and splash-proof
- Rugged design for long service life
- High accuracy and stable performance
- Quick and easy installation
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
For the air conditioning systems of Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts can operate in heavy-duty applications under severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, moisture, corrosion, and dust.
Specifications
| Connector Type | 2-Pin DT |
|---|---|
| Lead Length | 250 mm (9.84 in) |
| Thread Size | 7/16-20 in |
Compatible Equipment
- Motor Graders: 12H, 120H, 140H, 14M, 16H
