Description

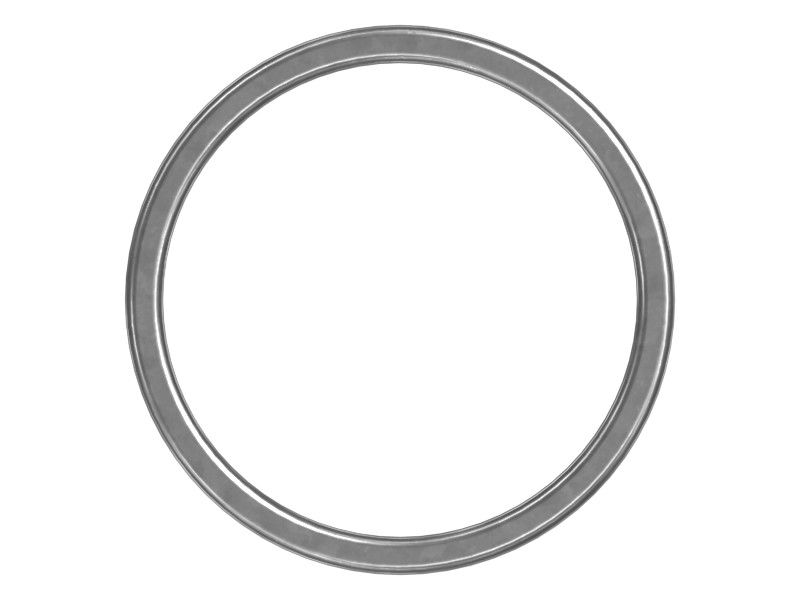

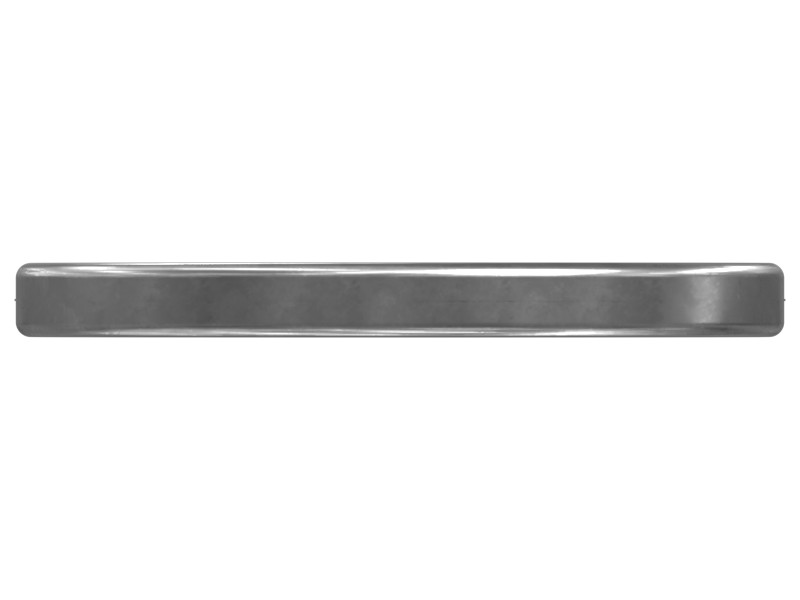

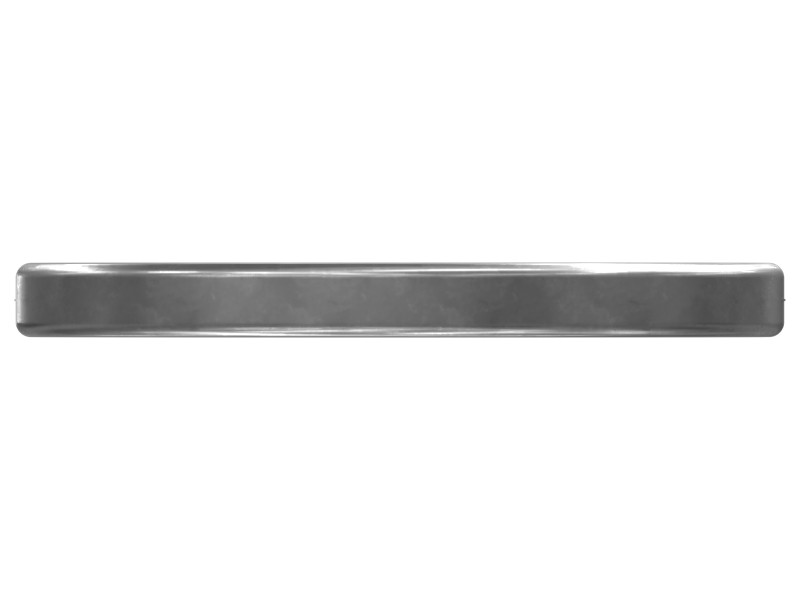

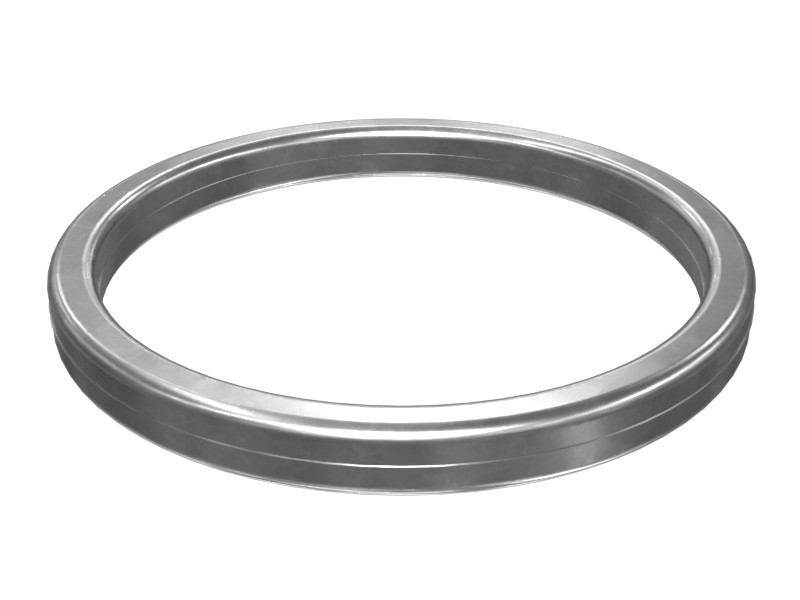

Rectangular seals and seal rings are ring-shaped seals with a rectangular cross-section. Depending on the needs of the application, the edges may be rounded or not rounded.
Features
Cat® seals and seal rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance.
Our seals and rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
Rectangular seals and seal rings are widely used in a variety of sealing applications on Cat machines and engines.
Specifications
| Material | Fluoroelastomer (FKM) Rubber |
|---|---|
| Cross-Section Height | 3.4 mm (0.13 in) |
| Material Description | FKM provides excellent performance in most applications, including air, engine oil, diesel fuel, hydraulic oil, automatic transmission fluid and biodiesel. Most FKM formulations must not be used with coolant/urea. FKM is effective at high temperatures and has good abrasion and cut resistance. |
| Cross-Section Width | 5 mm (0.19 in) |
| Inside Diameter | 44.7 mm (1.76 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
Compatible Equipment
- Cold Planers: PL72
- Dozers: D6R XL, D6R, D6R LGP, D6R III, D6T, D6R II, D6T LGP, D7R
