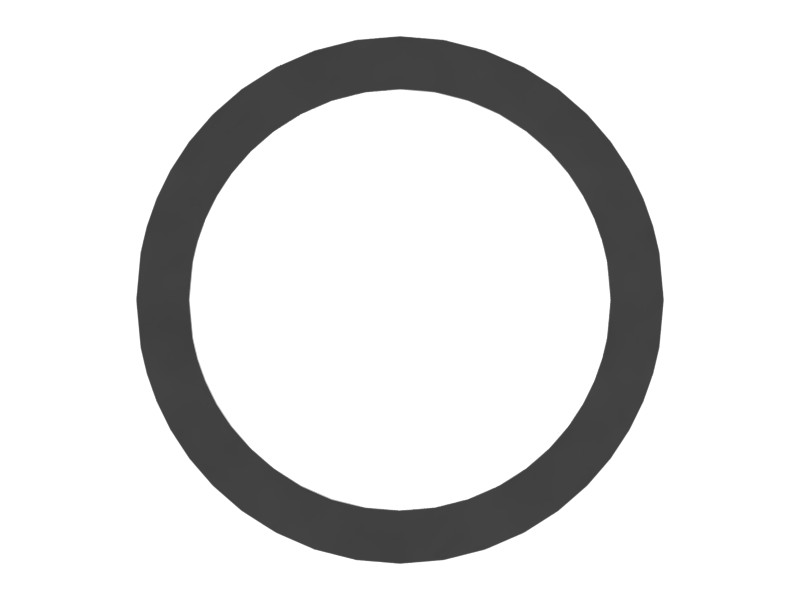

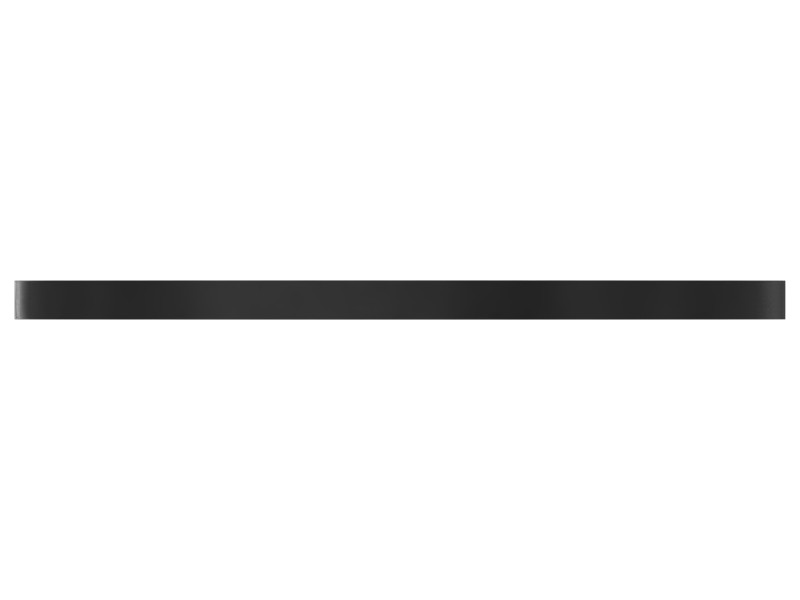

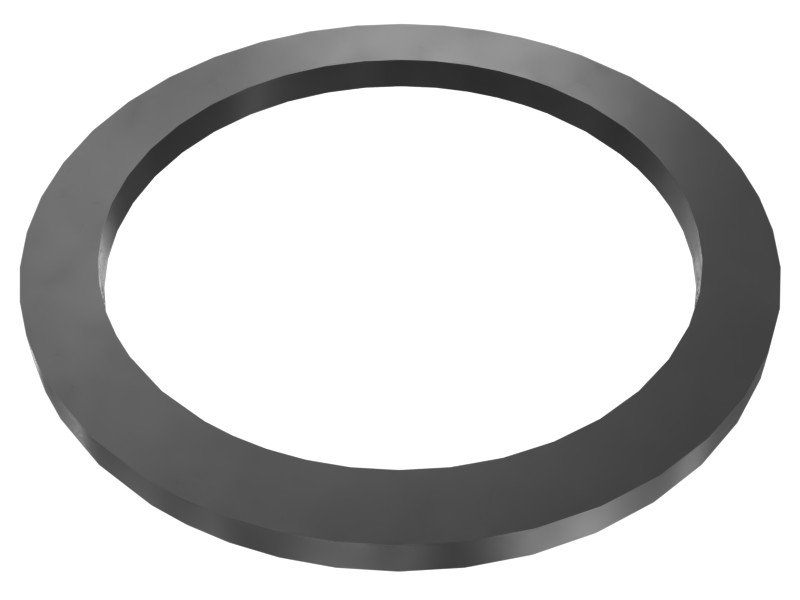

179-3153 2.5 mm Thick Shim
Cat® 2.5 mm Thick Steel Shim for Shafts in Swing Drive Carrier Parts
Description
Shims help adjust the clearance, alignment, and fit between two surfaces or parts. Shims are used to align and ensure correct positioning and to reduce vibration or noise. Shims are used to fine-tune the fit of parts, compensate for slight dimensional variations, and achieve the required clearance.
Attributes
- Distributes load evenly between mating surfaces, avoiding localized stress concentrations
- Built to exact specifications for durability and reliability
Applications
The shim is used in the shaft placed in the swing drive carrier section, providing support to achieve the required fit, and can be used alone.
Specifications
| Gasket Type | Flat Plate |
|---|---|
| Outside Diameter | 23.5 mm (1.969 in) |
| Inside Diameter | 13 mm (1.575 in) |
| Thickness | 2.5 mm (0.098 in) |
| Coating | None |
Compatible Equipment
- Wheel Excavators: M317D2, M313D, M315D, M315, M315D2
