Description

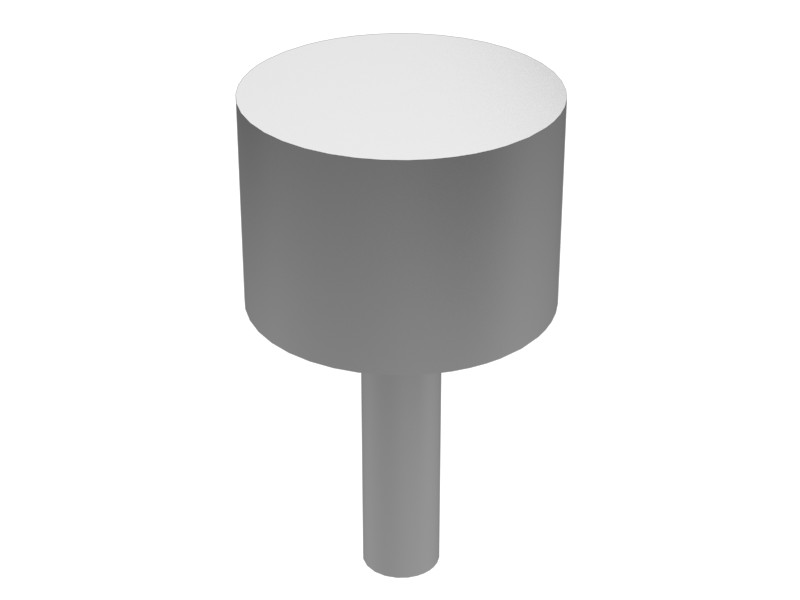

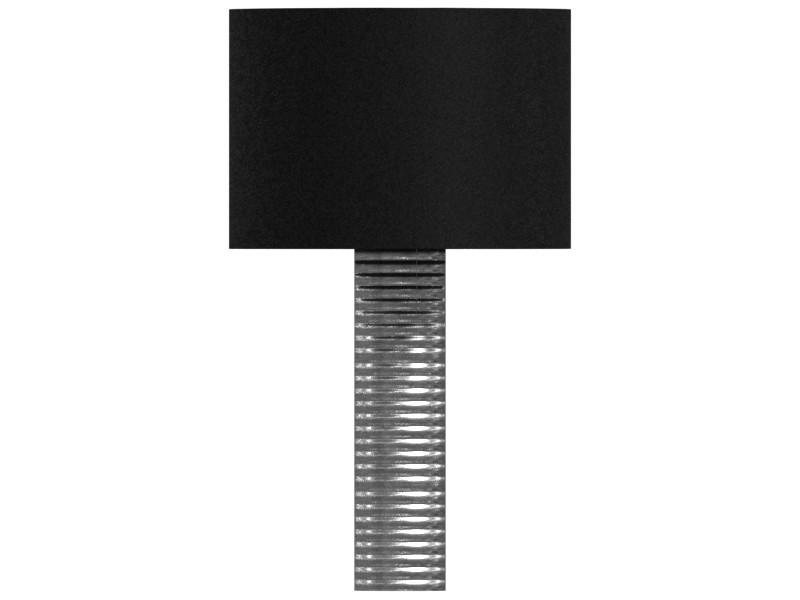

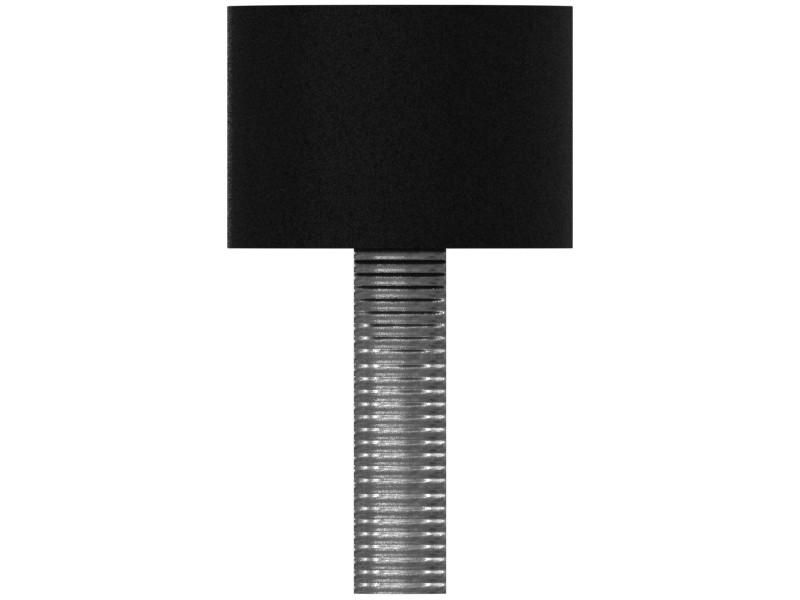

The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise). The sandwich mount has integrated fasteners at both ends for easy installation (two studs, two threaded holes, or one stud and one threaded hole).
Features
- Type: Bolt on One End
- Bumper Material: Rubber
- Stud Material: Steel
- Thread Size: M8

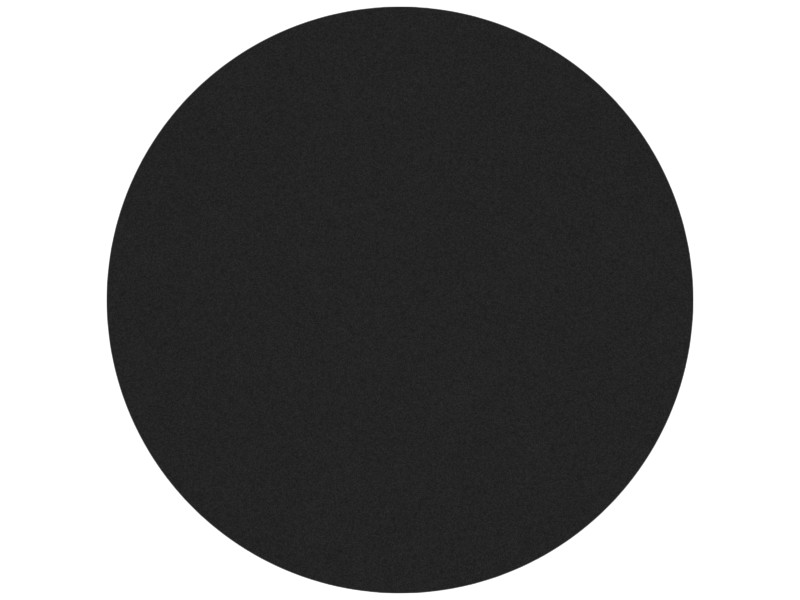

- Base Diameter: 90 mm (3.54 in)
- Cat mounting systems are designed to reduce the stress and strain on mounted components, improving component durability, extending service life and increasing operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements
- Sandwich mounts are an economical option that perform well in light-load applications. They deliver excellent radial isolation and can accommodate high radial displacement
Applications
The sandwich base is widely used in light-duty applications such as electrical, and also in high-displacement applications such as compactor drums.
Specifications
| Length | 51.5 mm (2.02 in) |
|---|---|
| Thread Size | M8 mm |
| Material | Alloy Zinc |
Compatible Equipment
- Track Loaders: 982, 972
- Cold Planers: PL72, PL83, PL87
- Compactors: CB16, CB2.5 GC, CB2.7 GC, CC2.7 GC, CB2.5, CB2.9, CC-34B, CB-34B, CB-24B, CB-36B, CS-54, CB2.7, CB15, CB13, CB10, CS-533E
- Excavators: 306E, 6060, 120 GC, 301.8, 3508B, 301.6, 303CR, 303.5CR, 6030, 6040, 432, 434F2, 428F
- Skid Steer Loaders: 232D3, 226D3, 249D3, 239D3, 232D, 236D, 262D3, 246D3
- Motor Graders: 16M, 14, 140 GC, 120
- Wheel Excavators: IT14G
- Dozers: D4, D6R XL, D6R, D6K2, D3K2 LGP, D5G, D6G2 XL, D6N, D4G, D6G, D5K LGP, D7G2, D5K2 XL, D5K XL, D7E, D6G2 LGP, D3G, D6R LGP, D7G, D1, D6R II
- Mini Excavators: 307C, 306, 301.7CR, 305.5, 305.5E, 301.5, 302CR
- Wheel Loaders: 950, 980, 966, 972H, 924GZ, 966H, 966K, 928G, 972L, 924HZ, 950H, 980H, 928HZ, 980L, 966L, 910
- Off-Highway Trucks: 793F, 793
Additional information
| Machine Model | 120, 120 GC, 14, 140 GC, 16M, 226D3, 232D, 232D3, 236D, 239D3, 246D3, 249D3, 262D3, 301.5, 301.6, 301.7CR, 301.8, 302CR, 303.5CR, 303CR, 305.5, 305.5E, 306, 306E, 307C, 3508B, 428F, 432, 434F2, 6030, 6040, 6060, 793, 793F, 910, 924GZ, 924HZ, 928G, 928HZ, 950, 950H, 966, 966H, 966K, 966L, 972, 972H, 972L, 980, 980H, 980L, 982, CB-24B, CB-34B, CB-36B, CB10, CB13, CB15, CB16, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC-34B, CC2.7 GC, CS-533E, CS-54, D1, D3G, D3K2 LGP, D4, D4G, D5G, D5K LGP, D5K XL, D5K2 XL, D6G, D6G2 LGP, D6G2 XL, D6K2, D6N, D6R, D6R II, D6R LGP, D6R XL, D7E, D7G, D7G2, IT14G, PL72, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
