Description

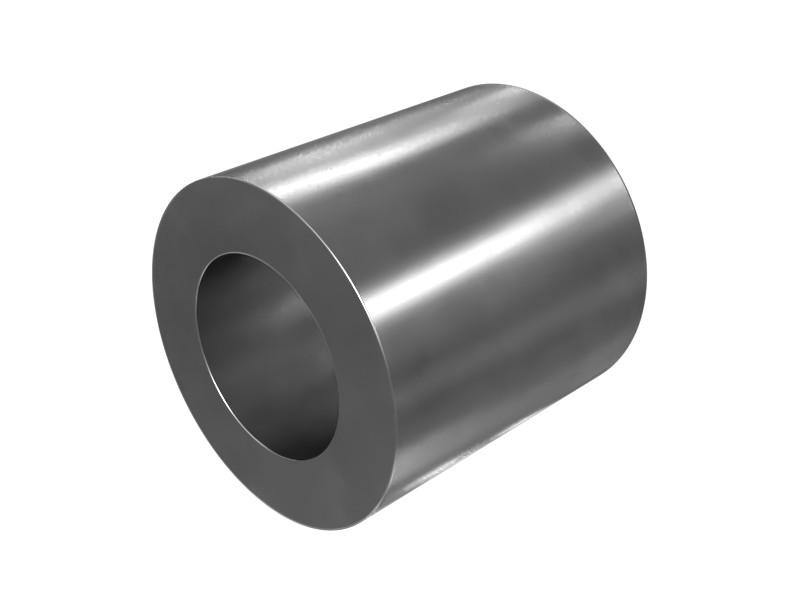

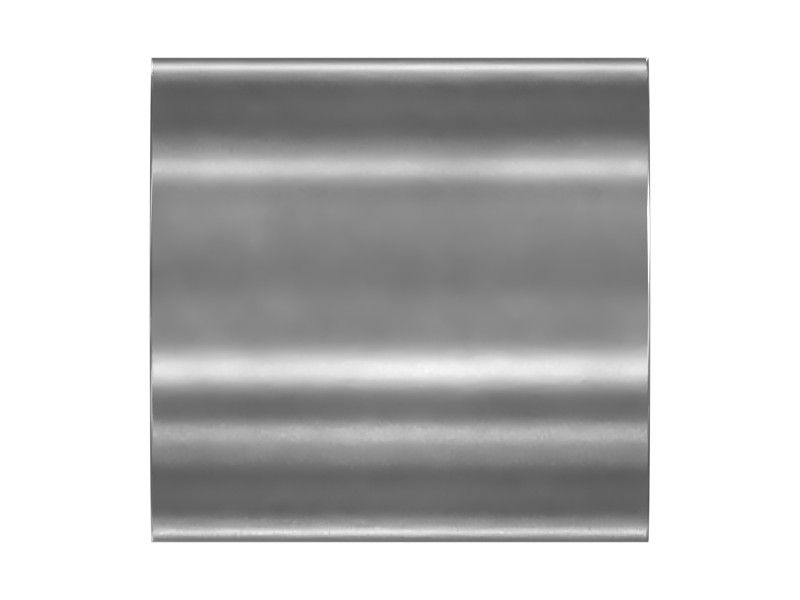

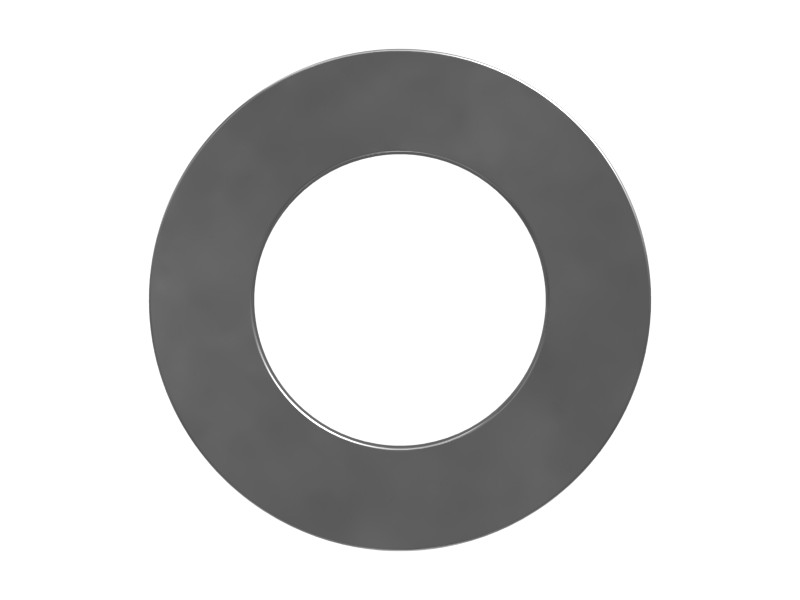

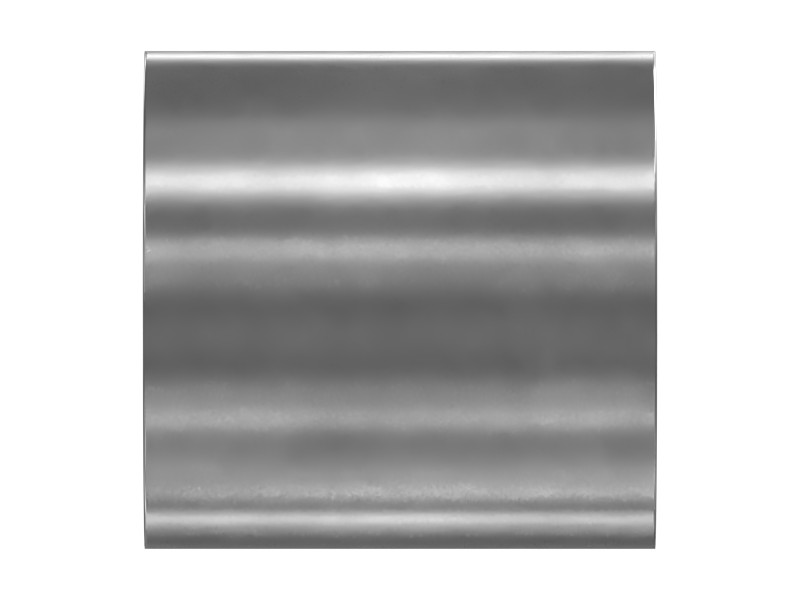

Spacers are commonly used to provide additional stretch length. They are usually a section of tube with a fastener inserted through it; therefore, a short spacer may resemble a thick washer. Washers are sometimes used as small spacers in a fastener to reduce preload loss or narrow the cyclic stress range of the machine workload. They are used to establish and maintain the functional relationship of related parts in a machine system. The spacer has a through hole through which the bolt is inserted. This means the spacer does not engage the threads of the bolt. Because a spacer cannot be tightened directly, a round outer profile is typically used.
Features
- Black zinc chromate plating for corrosion resistance
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
Applications
This shim is used for mounting the suspension seat.
Specifications
| Center Hole Shape | Non-Threaded |
|---|---|
| Gasket Type | Flat |
| Outside Diameter | 19.8 mm (0.78 in) |
| Inside Diameter | 11.7 mm (0.46 in) |
| Thickness | 20.3 mm (0.8 in) |
| Coating | Zinc |
Compatible Equipment
- Motor Graders: 12H, 16M, 120H, 140H, 140K, 12K, 16H, 14M, 160K
- Track Loaders: 824G, 826H, 826G, 834H
- Cold Planers: PL61, PL83, PL87
- Wheel Excavators: IT14G
- Dozers: D6N, D6T, D6R II, D7R II, D8R, D7R, D6R III, D6R, D3G, D11T, D10R, D11R, D10T, D5G, D7G2, D6G2 XL, D4G, D5N, D6R XL, D6R LGP, D9R, D8T, D6G2 LGP, D9T
- Excavators: 621H
- Wheel Loaders: 992K
- Off-Highway Trucks: 773E, 777D, 798 AC, 772G, 773F, 796 AC, 773D, 771D, 730, 770G, 794 AC, 740, 725, 777E, 785D, 735, 775G, 777, 773, 793D
Additional information
| Machine Model | 120H, 12H, 12K, 140H, 140K, 14M, 160K, 16H, 16M, 621H, 725, 730, 735, 740, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785D, 793D, 794 AC, 796 AC, 798 AC, 824G, 826G, 826H, 834H, 992K, D10R, D10T, D11R, D11T, D3G, D4G, D5G, D5N, D6G2 LGP, D6G2 XL, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D7G2, D7R, D7R II, D8R, D8T, D9R, D9T, IT14G, PL61, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Cold Planers |
| Part Source | Genuine OEM |
