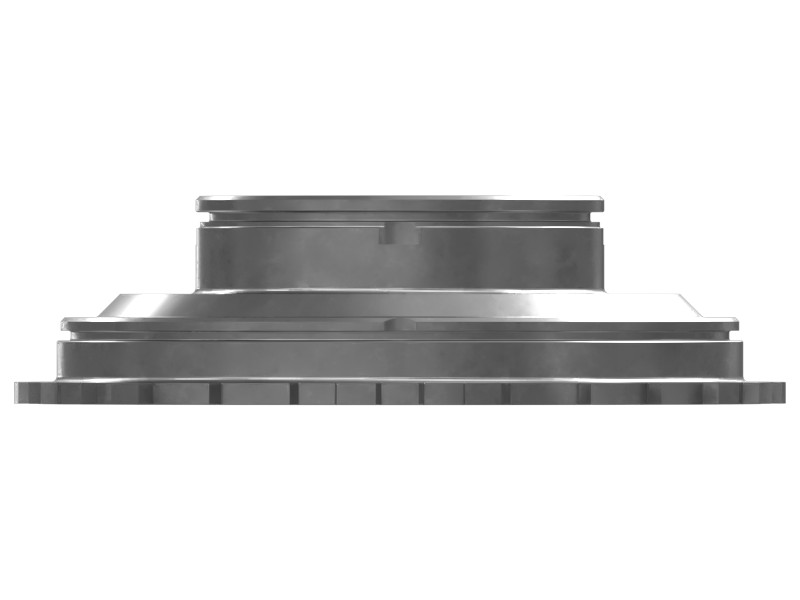

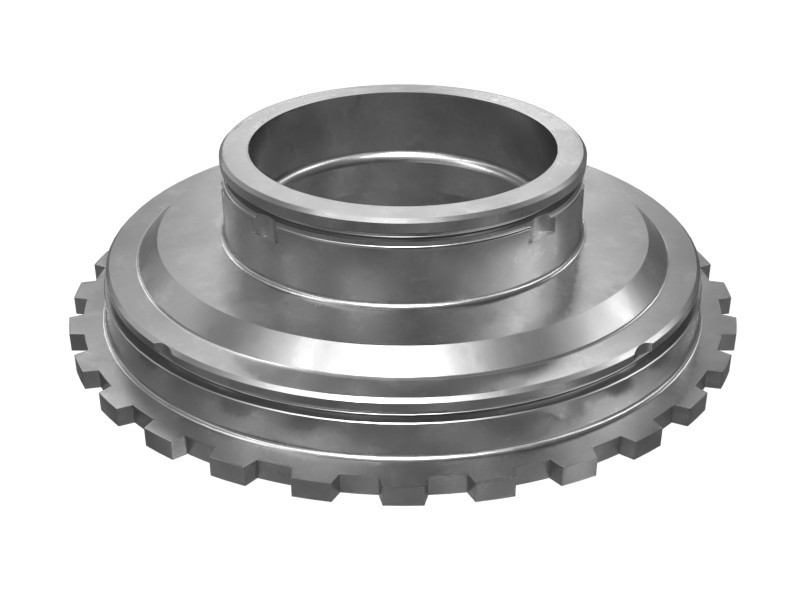

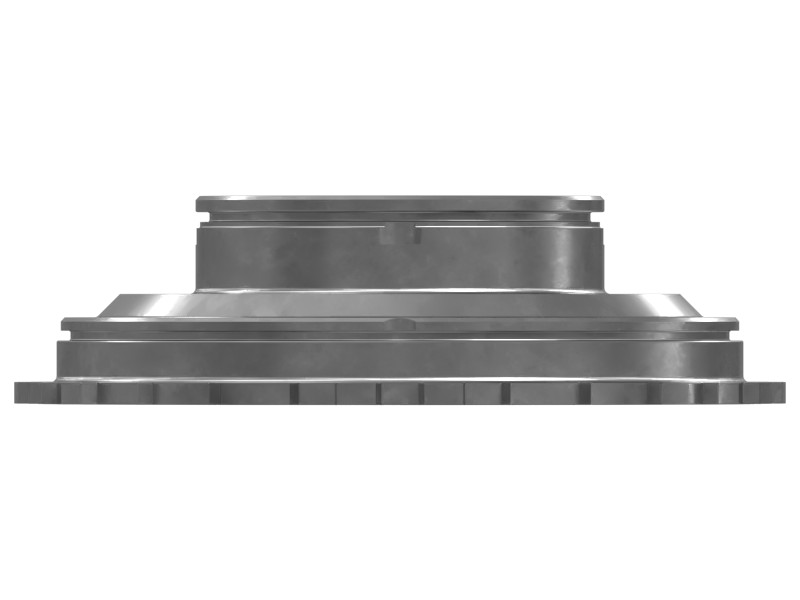

176-9273 Rotating Clutch Piston
Cat® Rotating Clutch Piston
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The Cat rotating clutch piston is a key component of the planetary gear group, which powers the rugged Cat transmission to convert engine power into the accurate combination of speed and force required by each machine.
Features
- Cast iron
- External spline, 28 teeth
- OEM direct replacement
Applications
Cat clutch pistons are used in planetary gear groups in Cat transmissions. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Ductile (Spheroidal) Iron |
|---|---|
| Material Description | Cast Iron |
| Outside Diameter | 197.2 mm (7.764 in) |
| Inside Diameter | 82 mm (3.23 in) |
| Height | 53 mm (2.086 in) |
Compatible Equipment
- Generator Sets: C7.1
- Track Loaders: 972
- Wheel Loaders: 966 GC, 966M
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
