Description

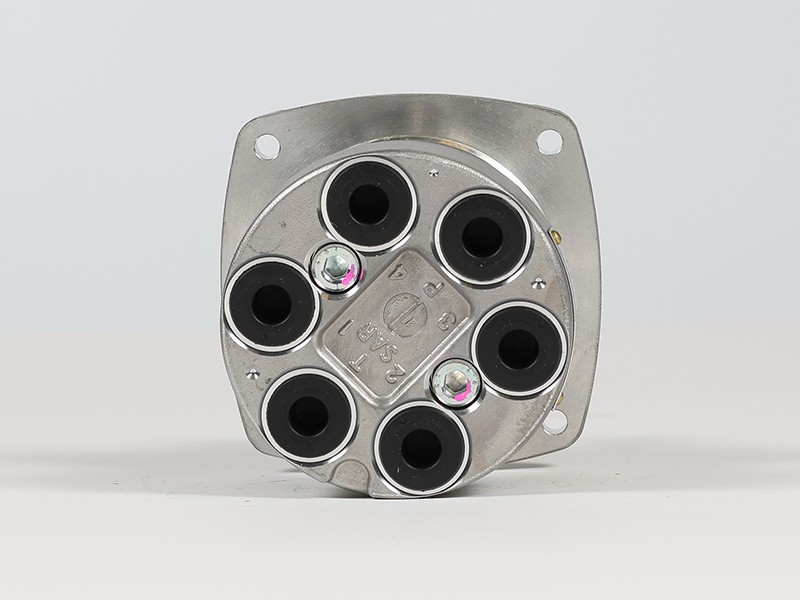

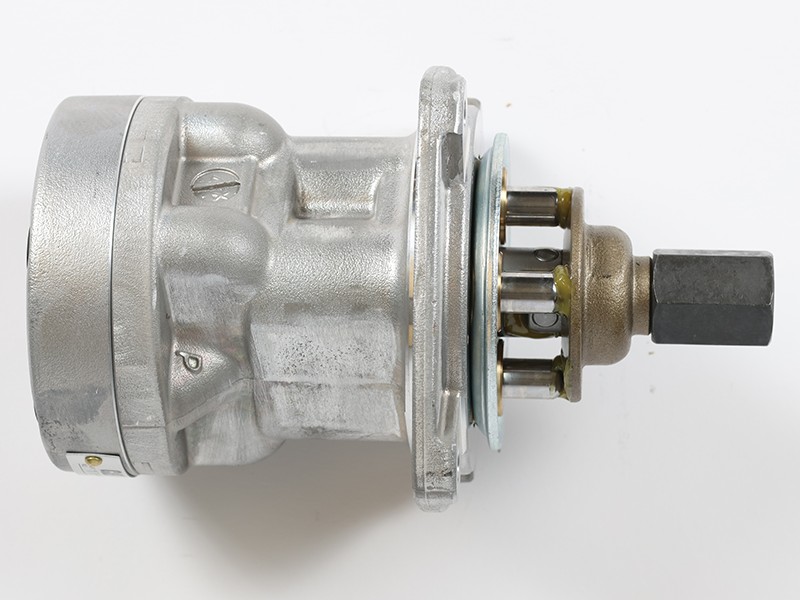

A pilot valve is used to control the operation of another valve. It opens or closes based on specific conditions and uses a small amount of fluid to control a larger main valve. When the valve is open, it allows only a small amount of fuel to pass. When the valve is closed, it blocks the flow of fluid.
Features
- Precisely controls main valve operation
- Adaptable to various operating conditions, pressure ranges, and flow rates
Applications
Pilot valves are used to control flow rate and pressure.
Specifications
| Overall Length | 173 mm (6.81 in) |
|---|---|
| Overall Width | 130 mm (5.12 in) |
| Weight | 1.55 kg (0.52 lb) |
Compatible Equipment
- Excavators: 320B, 330B, 311B, 325B, 325B L, 345B
