Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are commonly used in engines and driveline. 12-point head bolts have high fatigue performance and fit designs that do not have enough clearance for hex head bolts.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Class or Grade | Cat/ASTM F2882 (170 ksi) |
| Thread Size (Diameter × Pitch) | 5/8×11 mm |
| Thread Direction | RH |
| Thread Size | 0.625 mm (0.025 in) |

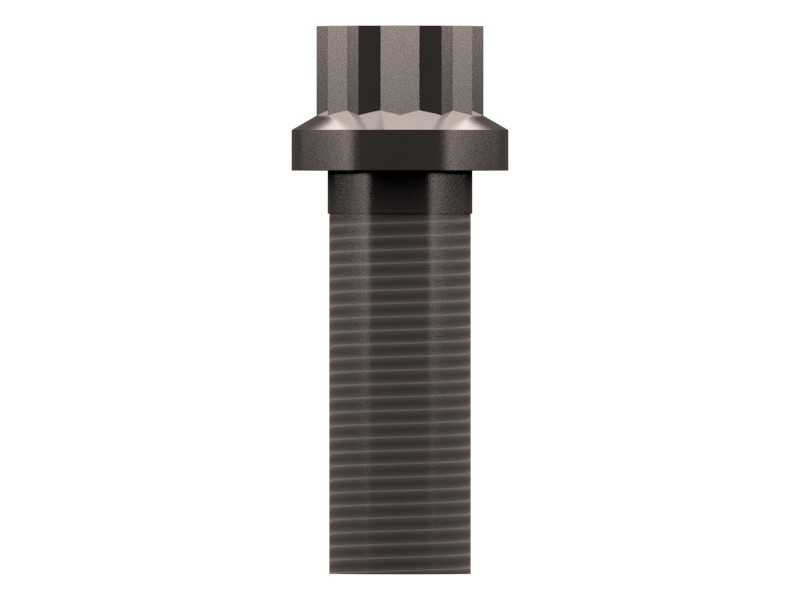

| Type | 12-Point Head Bolt |
| Material | STEEL |
| Bolt Length | 44.45 mm (1 3/4 in) |
| Bolt Type | 12 Point Head |
| Coating | Zinc Flake |
| Handle Length | 4.7625 mm (0.19 in) |
| Flange Diameter | 0.94 in |
Compatible Equipment
- Generator Sets: C9, 3406C, 3406B
- Track Loaders: 990K, 826K, 826G, 824G
- Compactors: 834K, C13B, C9.3B, C-9, C-15
- Engines: C32, C15, C11, C13, C7, C27, C18, C12
- Excavators: 336D, 374D L, 3456, 390D L, 349D, 330D L, 330C, 3508B, 330C L, 330D, 336D L, 345B, 657G, 637K, 385C, 345D L, 345C, 385C L, 365C, 345C L, 390D, 349D L, 365C L, 385C FS, 6015, 6015 FS, 6030, 345D, 621G, 6018
- Asphalt Pavers: AP655F L, AP655F
- Skid Steer Loaders: 24, 3126B
- Dozers: D6T
- Wheel Loaders: 988K, 836, 834, RM400, R2900 XE, 980G, R1700G
- Off-Highway Trucks: 775G, 777, 725, 730, 735, 777E, 773, 772G, 725C2, 740
Additional information
| Machine Model | 24, 3126B, 330C, 330C L, 330D, 330D L, 336D, 336D L, 3406B, 3406C, 3456, 345B, 345C, 345C L, 345D, 345D L, 349D, 349D L, 3508B, 365C, 365C L, 374D L, 385C, 385C FS, 385C L, 390D, 390D L, 6015, 6015 FS, 6018, 6030, 621G, 637K, 657G, 725, 725C2, 730, 735, 740, 772G, 773, 775G, 777, 777E, 824G, 826G, 826K, 834, 834K, 836, 980G, 988K, 990K, AP655F, AP655F L, C-15, C-9, C11, C12, C13, C13B, C15, C18, C27, C32, C7, C9, C9.3B, D6T, R1700G, R2900 XE, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
