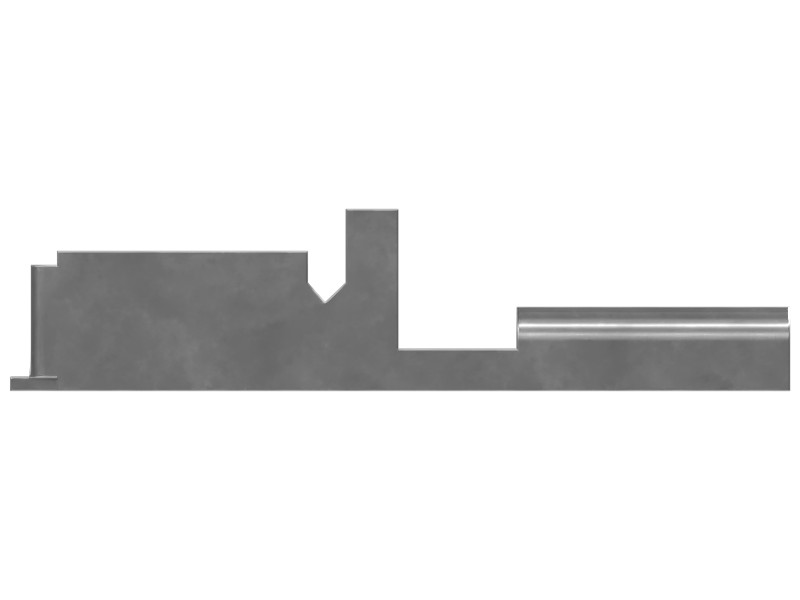

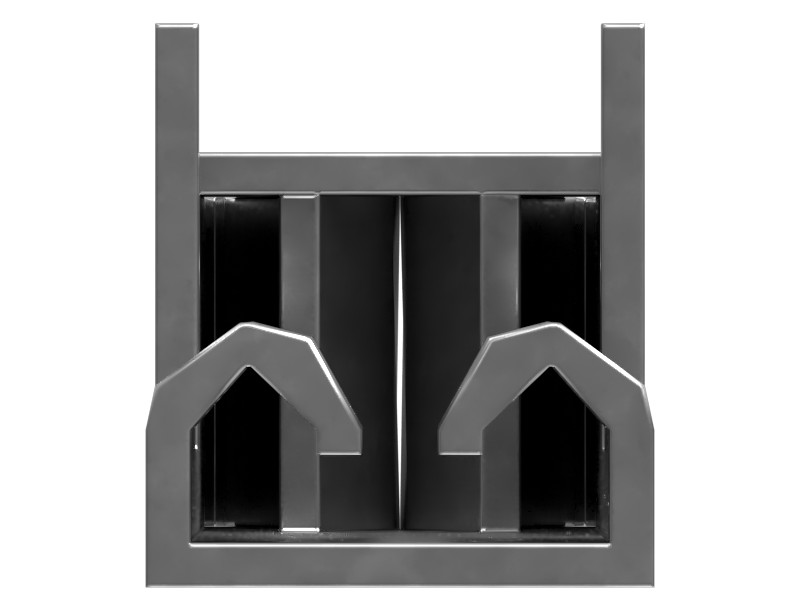

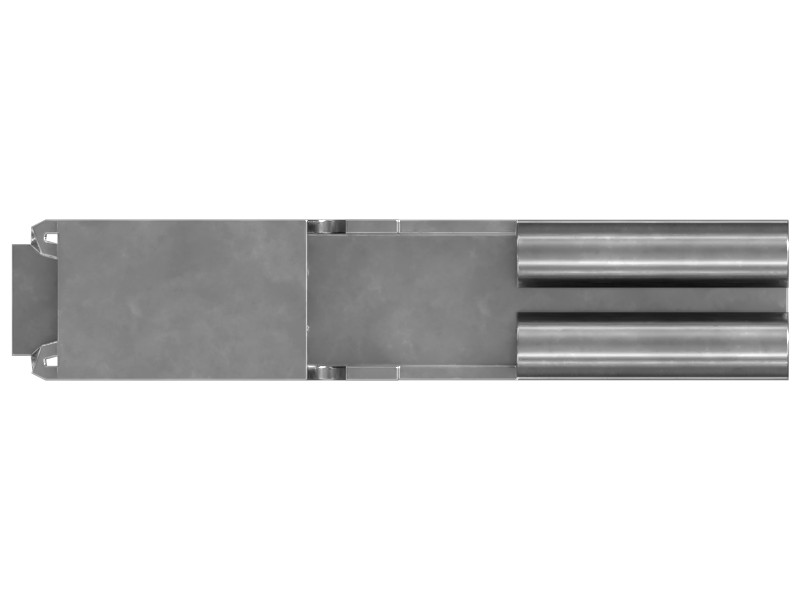

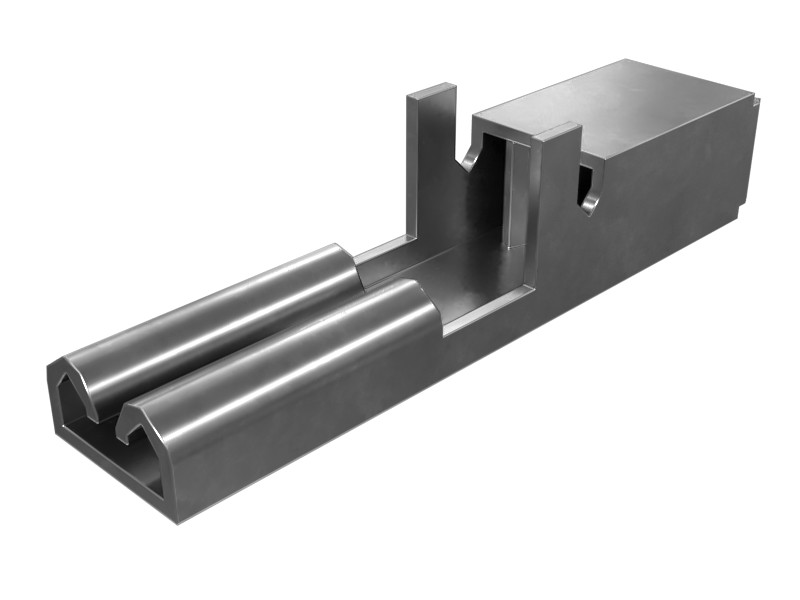

176-1477 Connector Plug Group

Description

Cat connector plug groups establish a pin-and-socket connection system that provides reliable electrical connections in a range of electrical applications on Cat heavy-duty equipment. Quality suited to machine requirements, meeting your expectations.

Features

Contact Type: Receptacle
Number of Contacts: 2
Color: Black
Housing Material: Nylon
Corrosion Resistant
Easy to connect and disconnect

Applications

Cat connector plug groups use reliable wire connections between wires or between wires and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Overall Length	35.5 mm (1.39 in)
Overall Width	20 mm (0.8 in)

Compatible Equipment

Motor Graders: 140 GC
Cold Planers: TH417D, TH255C
Compactors: CB2.7 GC, CC2.7 GC, CB-44B, CB2.5, CB2.7, CB2.5 GC, CB2.9, CB10
Compact Track Loaders: 279D3, 299D3
Dozers: D1, D3K2 LGP, D5K XL, D5K2 XL, D7R II, D5K LGP
Mini Excavators: 308, 303.5, 301.5, 310
Excavators: 416F2, 320D3 GC, 428F, 416E, 6060, 434F2, 6020B, 432, 320D2 GC, 323D2 L, 301.6, 320D2 L, 313F LGC, 301.8, 323D2, 320D3, 320D2
Wheel Loaders: 950 GC, 938K, 924K, 910, 926M, 938M
Skid Steer Loaders: 242D3, 249D3, 236D3, 289D3, 262D3, 246D3, 232D3, 226D3, 226B3, 239D3, 272D3 XE, 299D3 XE, 272D3, 259D3, 236B3, 236D, 262C, 279C, 232D, 246D, 216B3, 246C, 262D

Machine Model	140 GC, 216B3, 226B3, 226D3, 232D, 232D3, 236B3, 236D, 236D3, 239D3, 242D3, 246C, 246D, 246D3, 249D3, 259D3, 262C, 262D, 262D3, 272D3, 272D3 XE, 279C, 279D3, 289D3, 299D3, 299D3 XE, 301.5, 301.6, 301.8, 303.5, 308, 310, 313F LGC, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 323D2, 323D2 L, 416E, 416F2, 428F, 432, 434F2, 6020B, 6060, 910, 924K, 926M, 938K, 938M, 950 GC, CB-44B, CB10, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC2.7 GC, D1, D3K2 LGP, D5K LGP, D5K XL, D5K2 XL, D7R II, TH255C, TH417D
Equipment Type	Excavators, Mini Excavators, Wheel Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Cold Planers
Part Source	Genuine OEM

Machine Model

140 GC, 216B3, 226B3, 226D3, 232D, 232D3, 236B3, 236D, 236D3, 239D3, 242D3, 246C, 246D, 246D3, 249D3, 259D3, 262C, 262D, 262D3, 272D3, 272D3 XE, 279C, 279D3, 289D3, 299D3, 299D3 XE, 301.5, 301.6, 301.8, 303.5, 308, 310, 313F LGC, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 323D2, 323D2 L, 416E, 416F2, 428F, 432, 434F2, 6020B, 6060, 910, 924K, 926M, 938K, 938M, 950 GC, CB-44B, CB10, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC2.7 GC, D1, D3K2 LGP, D5K LGP, D5K XL, D5K2 XL, D7R II, TH255C, TH417D

Equipment Type

Excavators, Mini Excavators, Wheel Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Cold Planers

Part Source

Genuine OEM
