Description

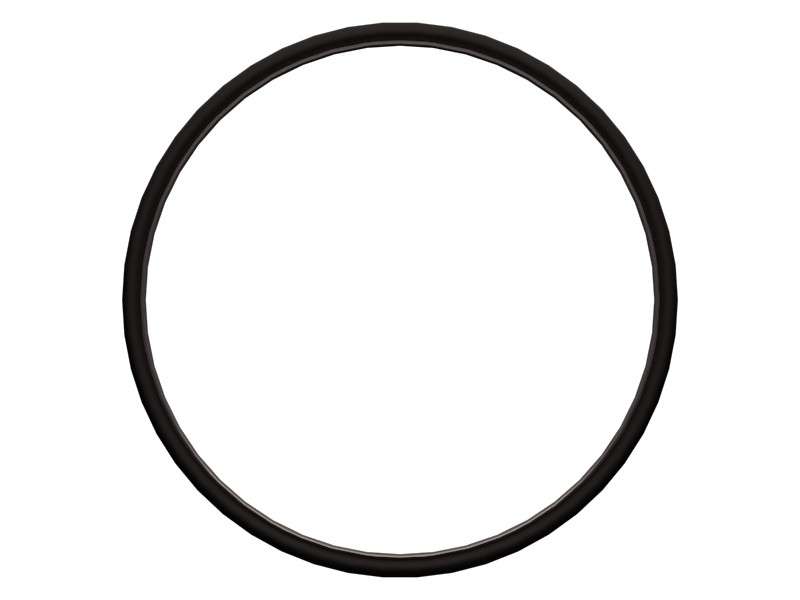

Cat metal face seals are used in wear applications of heavy machinery operating in extremely severe conditions, protecting internal working parts prone to heavy wear, such as bearings and gears. The seal includes two metal seal rings and two rubber toric rings. The toric rings provide proper pressure on both sides of the metal seal rings. Mechanical face seals are self-aligning seals that compensate for shaft eccentricity or misalignment.
Features
- D-Series seal with LT-NBR curved ring
- Seals in oil and keeps abrasives out
- Simple and reliable design
- Maintenance-free
- Easy to assemble
- Economical
- Long service life
Applications
Typical applications include undercarriage idlers, rollers, large axle shafts, wheels, and final drives. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Ring Material Description | Formed |
|---|---|
| Face Material | LT-NBR |
| Flange Outside Diameter | 332.1 mm (13.1 in) |
| Inside Diameter | 303.57 mm (12 in) |
| Housing Diameter | 330.72 mm (13 in) |
| Outside Diameter | 328 mm (12.9 in) |
| Ring Cross Section | 13 mm |
| Temperature | -35 to +100 °C (-31 to +212 °F) |
| Ramp Angle | 15 |
Compatible Equipment
- Excavators: 320, 323D2 L, 315D L, 318D2 L, 318D L, 320 GX, 323 GX, 320 GC, 320D2 GC, 318D2, 320D2 L, 320D L, 315C, 320E, 320D RR, 323D L, 320D FM, 323, 320C, 320D GC, 323D2, 323D, 320B, 313D2, 320D, 320D2
- Skid Steer Loaders: 313D2 LGP
