Description

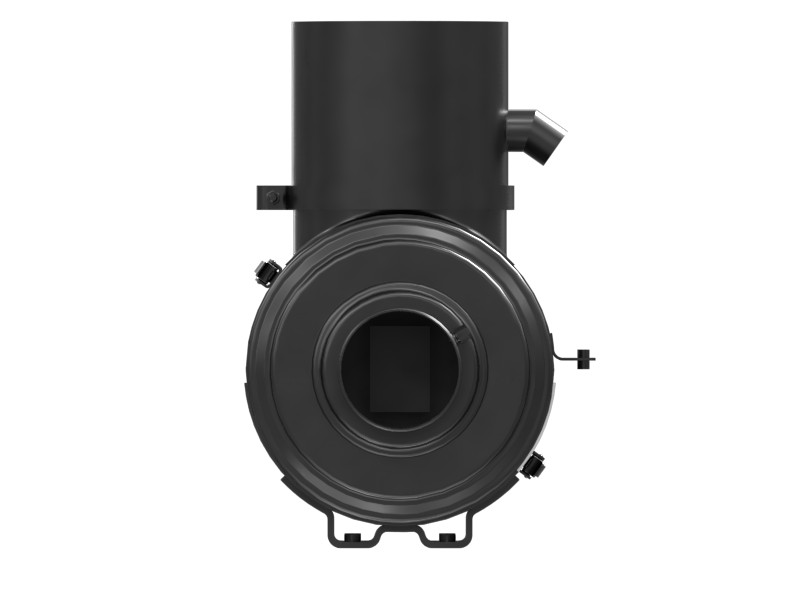

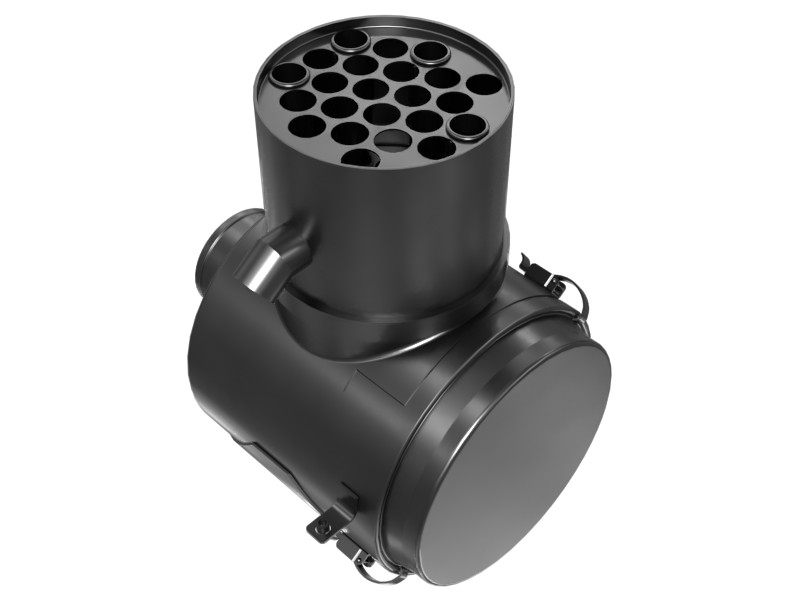

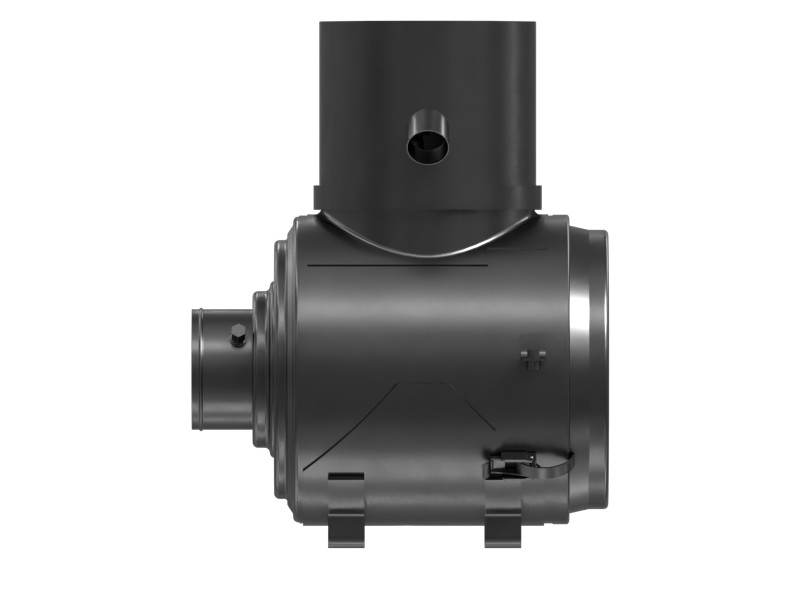

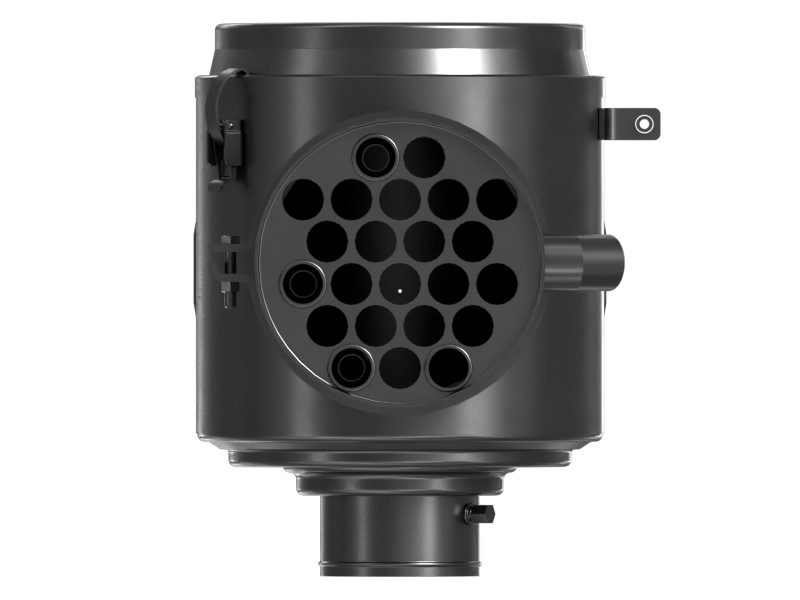

The air filter filters harmful particles such as dust, dirt and debris from the air and supplies air to the carburetor to produce a clean air-fuel mixture. It consists of an air cleaner with primary and secondary filters for the filtration process, with a cover protecting the filter. It is fitted with a precleaner to remove larger particles and a clamp to align the air filter.
Attributes
Equipped with a precleaner to remove larger particles and a clamp for alignment
Built to exact specifications for durability and reliable performance
Applications
The air filter ensures a flow of clean air so the engine can keep running. This air filter is primarily used on Cat® 120H, 12H, 135H, 140H, 143H, 14H, 160H, 163H and 16H motor graders and the TR16 power train.
Specifications
| Weight | 9.75 kg (21.5 lb) |
|---|---|
| Height | 555 mm (21.85 in) |
| Length | 439 mm (17.283 in) |
| Width | 371.5 mm (14.626 in) |
| Overall Height | 555 mm (21.85 in) |
| Type | Round |
| Mounting | Bottom |
| Outlet Size | 127 mm (5 in) |
| Overall Length | 439 mm (17.28 in) |
| Overall Width | 555 mm (21.85 in) |
Compatible Equipment
- Motor Graders: 140H, 16H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
