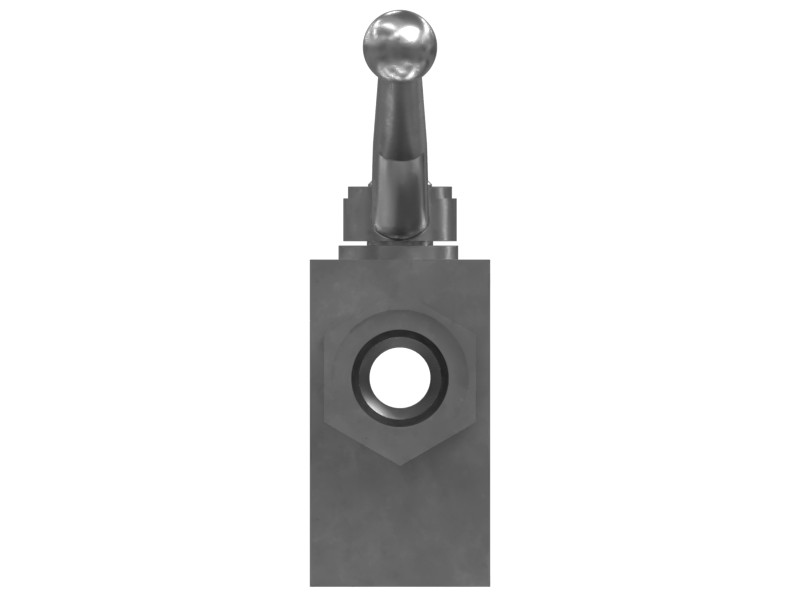

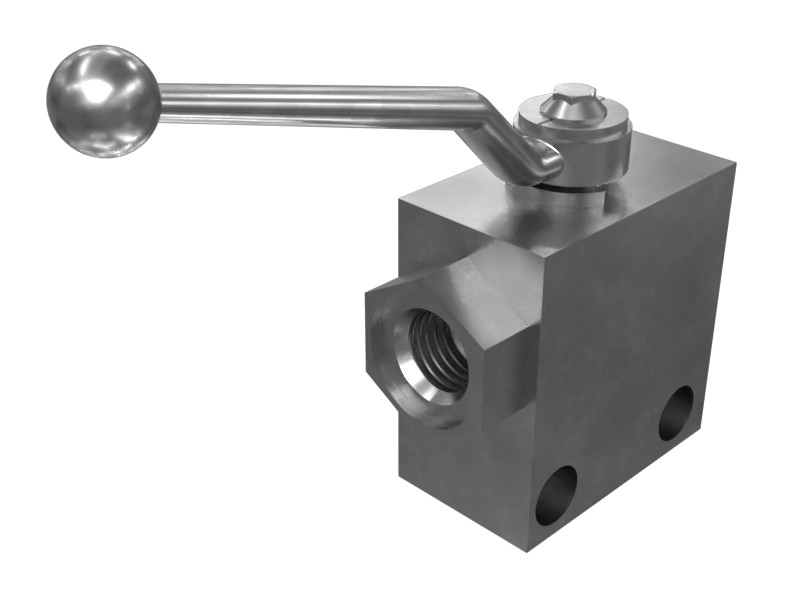

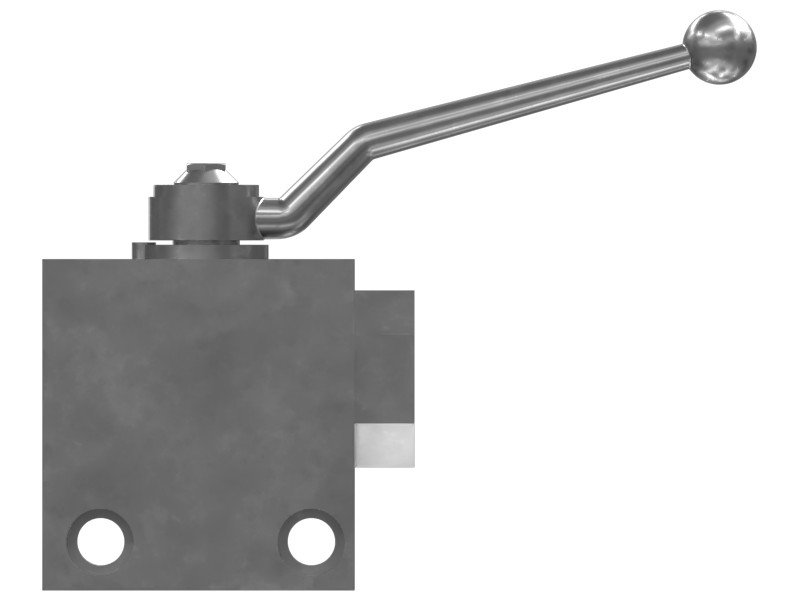

173-8093 77.5 mm Long Hydraulic Ball Valve
Cat® hydraulic ball valve uses a ball mechanism to open or block passages in the hydraulic system, thereby controlling fluid flow
Description
A ball valve is an in-line component that can manually shut off fluid flow when the handle is turned a quarter turn.
Features
- Steel valve
- Manually operated ball valve
- Port Size: -8 STOR, 3/4-16 UN
Applications
Manual shutoff valve for auxiliary hydraulic lines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Length | 77.5 mm (3.05 in) |
| Width | 38 mm (1.5 in) |
| Thread Size | 3/4-16 in |
Compatible Equipment
- Mini Excavators: 307C, 307E2, 307, 307D, 308E2
- Excavators: 330D L, 320, 329E L, 320E, 320D L, 336E, 323, 345C, 326, 315F LCR, 320D2 L, 336E L, 320C, 329E, 312E, 320D2, 320D, 307E, 308E
