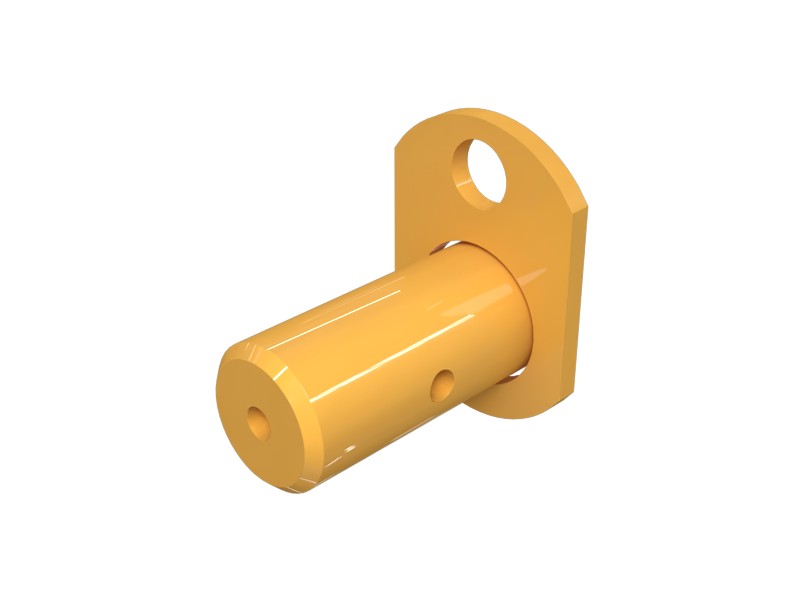

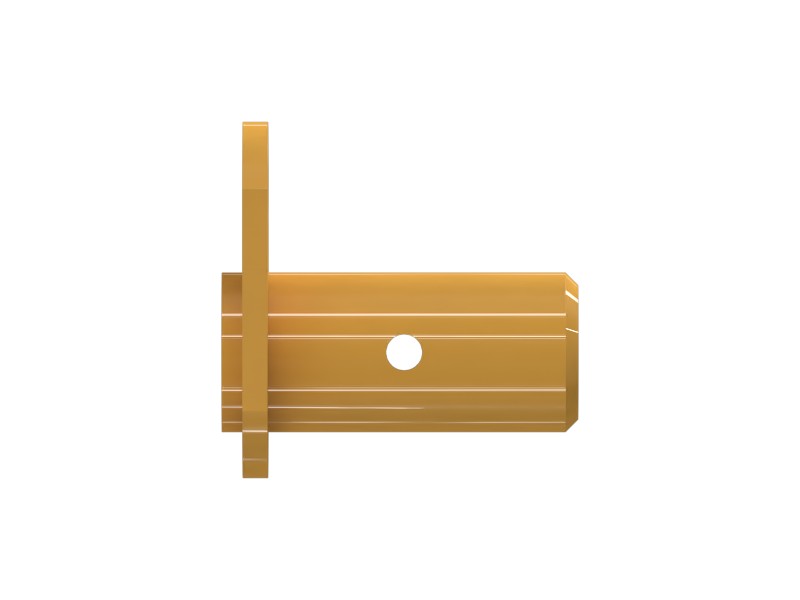

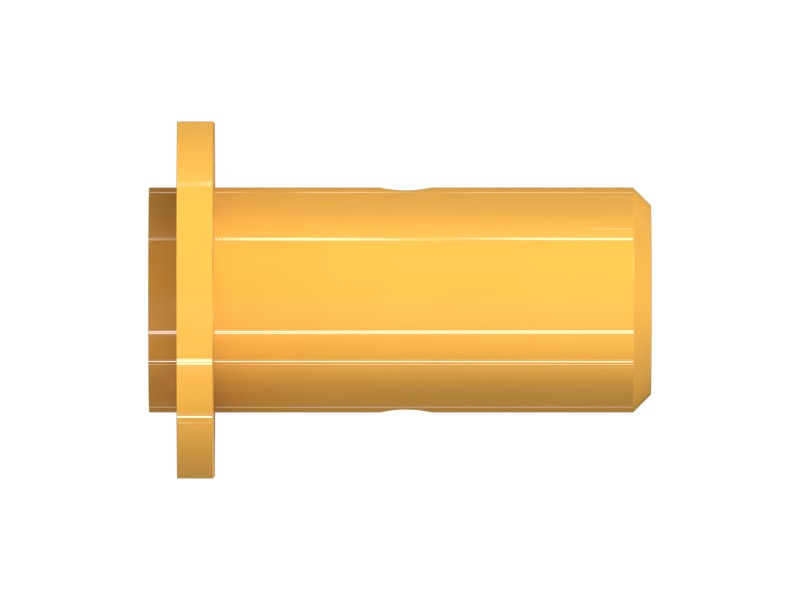

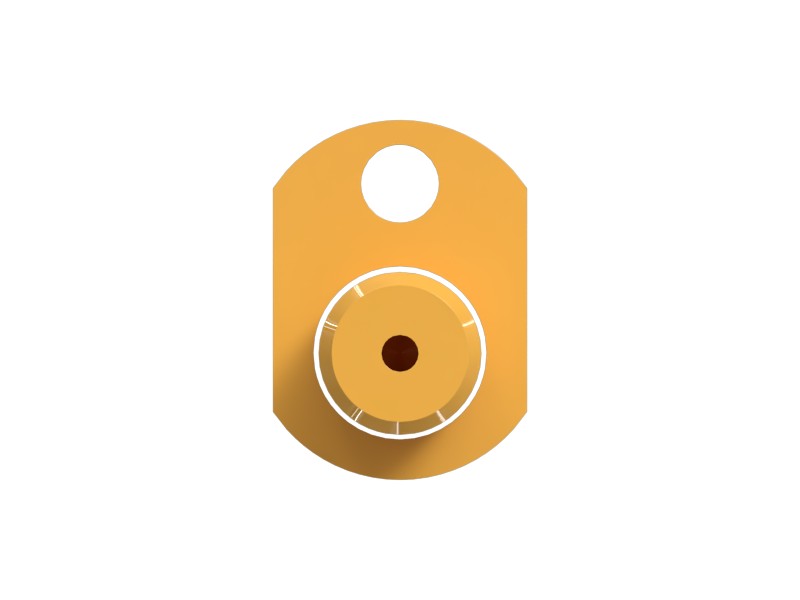

173-7456 Hardened Steering Cylinder Rod Pin
Cat® Coupling Pin for Hydraulic Cylinder Assemblies
Description
The connecting pin is used to connect hydraulic cylinders in a device. It is typically a cylindrical metal pin with a head at one end and a hole or slot at the other. The hole at the other end of the pin is used to connect the pin to another component and provides the strength needed to withstand high loads and forces.
Features
- High strength and high wear resistance
Features • Manufactured to precise technical specifications, designed for durability and reliability
built for Applications:
The connecting pin is used to provide a secure and reliable connection, allowing power and motion to be transmitted in hydraulic cylinders, and is mainly used in Cat CP-533E, CP-573E, CP-583E, CP-534E, CP-56, CP-54, vibratory drum CP-64, CP-74, CB-534D, CB-564D, CB-54, CB-64, CP-56, CP-64, CP-74, CS-563D, CS-56, CS-573D, CS-64, CS-74, CS-76, CS-433E, CS-663E, CS-423E, CS-433E, CS-533E and CS-633E.
Specifications
| Internal Grease Passage Hole | Yes |
|---|---|
| Outside Diameter | 38.1 mm (1.5 in) |
| Effective Length | 74 mm (2.913 in) |
| Puller Thread | No |
| Material | Cast Steel |
| Internal Groove | None |
| Weight | 0.86 kg (173.99 lb) |
| Pin Type | Flag Pin |
| Width | 6.61 in |
| Plating | Unplated |
| Pin Diameter | 38 mm (1.5 in) |
| Length | 74 mm (2.91 in) |
| Removal Aid/Feature | Without Puller Hole |
Compatible Equipment
- Compactors: CB-534D, CB-564D, CS-54, CS-563E, CS-56, CB-434D, CS-583D, CS-533E
