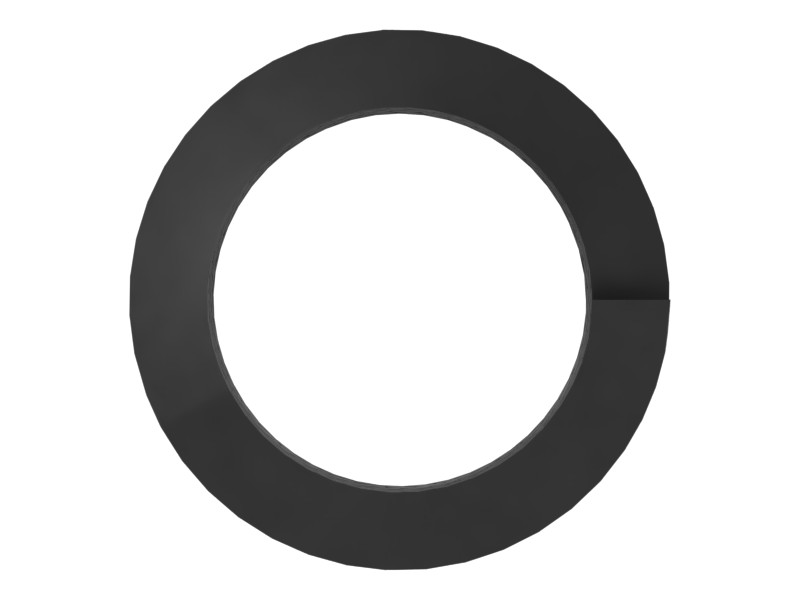

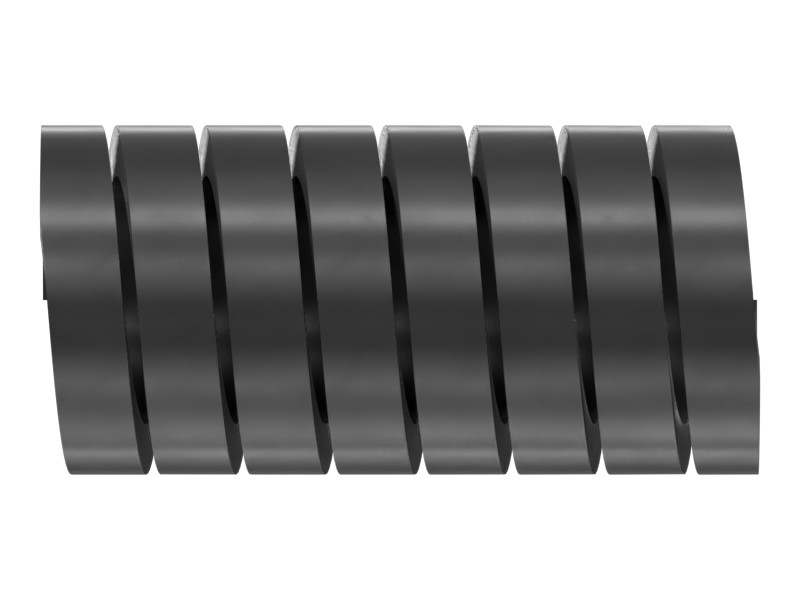

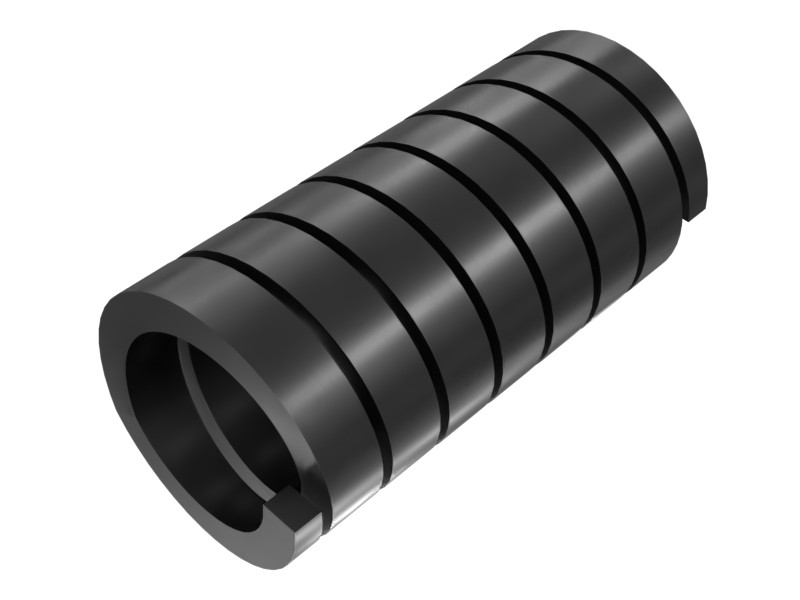

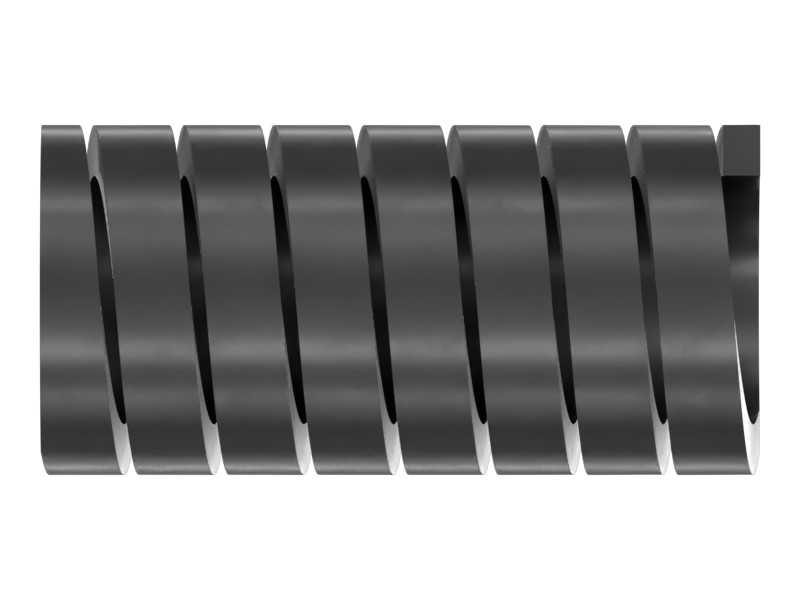

173-3524 25.0 mm Diameter Compression Spring
Cat® 25.0 mm Diameter Compression Spring for Travel Counterbalance Load Control Valves
Description
The compression spring is an integral component of the load control valve in the travel back pressure system. Located inside the valve body, it generates resistance proportional to the applied load. This resistance helps regulate the speed of the counterbalance mechanism's movement, prevents sudden or uncontrolled movement, and ensures stability and safety during operation.
Attributes
- Helps distribute force evenly along its length for consistent performance
- Fatigue resistant, suitable for cyclic loading
Applications
The compression spring is used in the load control valve of travel counterbalance application components, enabling safe, controlled movement of the counterbalance mechanism, and is used primarily on Cat 330C, 330D, 336, 336F, 340, 345B, 345C, 345D, 349, 349D, 349E, 349F, 350, 352, 352F, 355, 558, 568 and W345B Excavators, 330D, 345C, MH3250, MH3260, TH220B, and W345C Material Handlers.
Specifications
| Length | 60 mm (2.36 in) |
|---|---|
| Outside Diameter | 25 mm (0.98 in) |
| Spring Type | Compression |
| Weight | 0.1 kg (0.22 lb) |
Compatible Equipment
- Motor Graders: 349 GC
- Excavators: 330D L, 349F L, 350, 330C, 336F, 345C L, 345D L, 352F, 345C, 349E L, 349D L, 345D, 349E L VG, 349E, 352, 349, 336, 355, 349D2 L, 349D2, 349D
