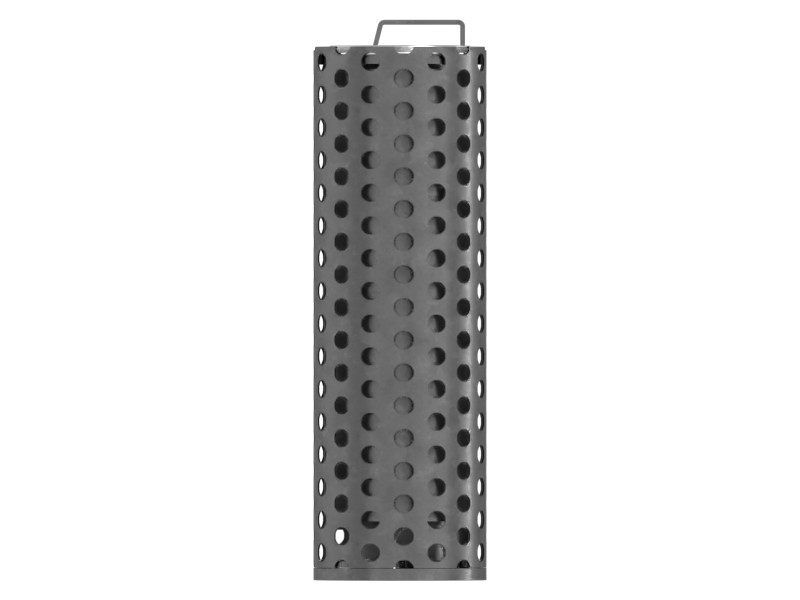

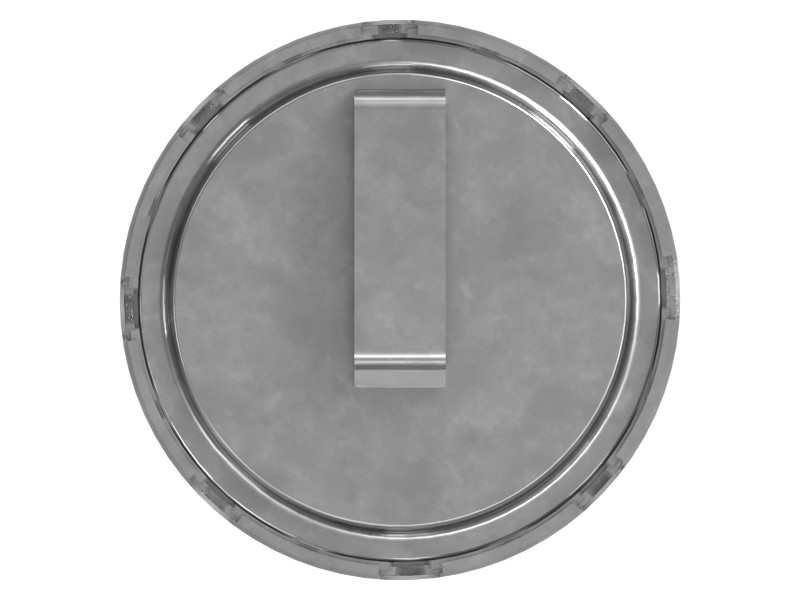

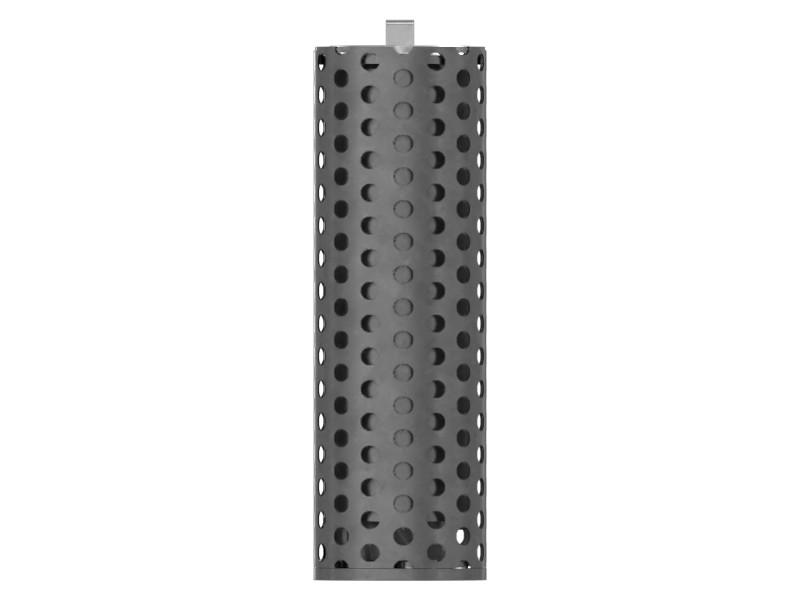

173-3511 Standard Efficiency Hydraulic/Transmission Filter
Cat® Standard Efficiency Hydraulic/Transmission Filter
Description
Standard Efficiency hydraulic oil filters are designed to maintain system cleanliness in most general and light-duty applications and are your first line of defense against contaminant-induced component wear.
Cat® hydraulic filters isolate contaminants and abrasives in high-pressure hydraulic systems to keep them from wearing down tight-tolerance systems, providing excellent protection. Cleanliness is key to ensuring sensitive hydraulic systems stay properly lubricated.
Features
- Engineered by Caterpillar as an integral component of the hydraulic system
- Available only from Caterpillar
- No one knows Cat hydraulic systems better than Caterpillar
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Filter Type | Cartridge |
|---|---|
| Diameter | 160 mm (6.3 in) |
| Width | 118 mm (4.65 in) |
| Type | Oil |
| Length | 519 mm (20.41 in) |
| Efficiency Rating | Standard Efficiency |
Compatible Equipment
- Excavators: 320C, 325C, 330C, 330C L, 314C, 312C L, 320B, 315C, 312C, 311C, 325B L, 325C L, 385B, 345B, 345C, 365B, 345C L, 365B L
