Description

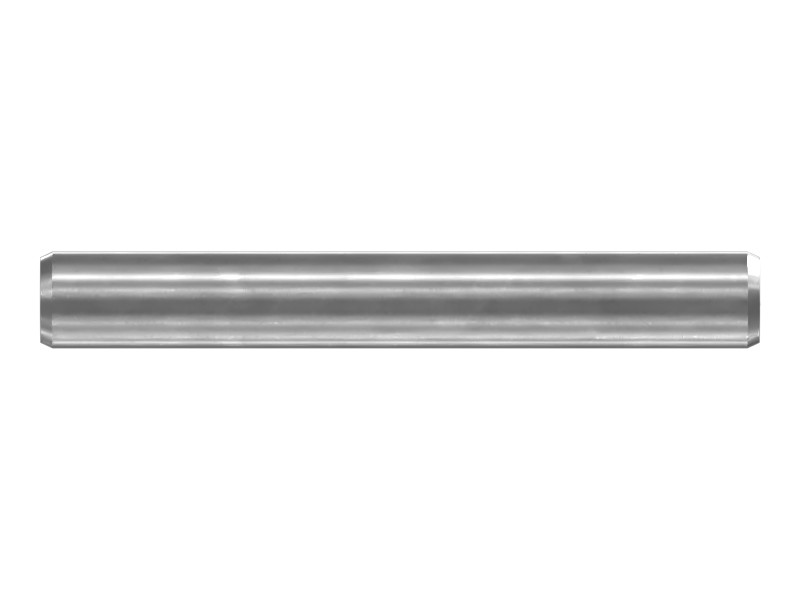

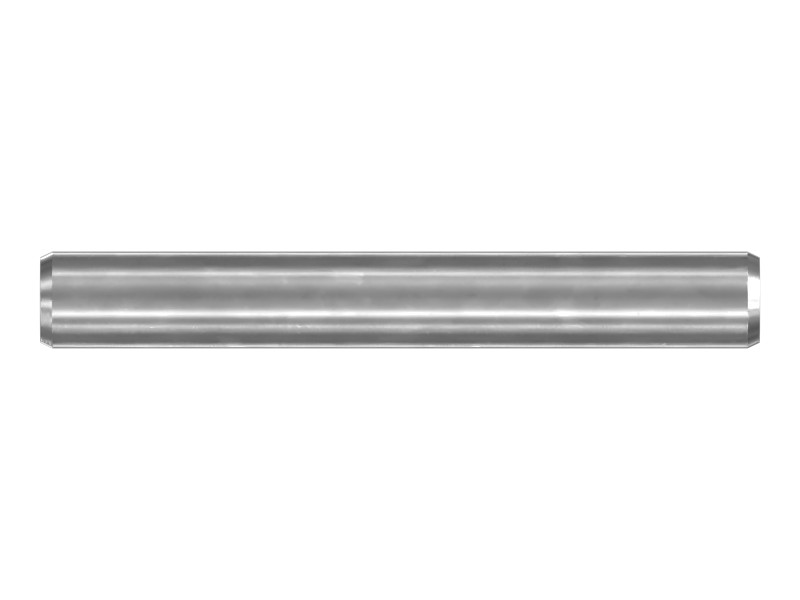

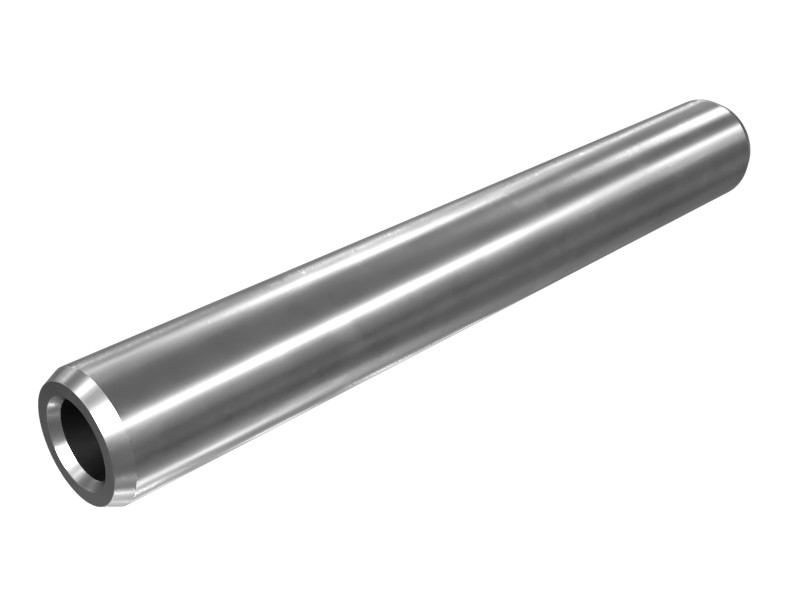

A dowel pin is a headless straight pin with a tightly controlled diameter, which can be press-fitted into one or two parts to transmit loads or fix the position of adjacent parts. Fasteners and hardware are designed for specific applications based on size, strength, clamping force, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.
Specifications
| Pin Outside Diameter | 13.82 mm (0.544 in) |
|---|---|
| Pin Length | 103 mm (4.055 in) |
| Pin Inside Diameter | 8.2 mm (0.323 in) |
| Pin Type | With Thrust Hole |
| Center Hole Shape | Non-Threaded |
| Thread | M14X2 External |
| Pin Diameter | 14 mm (0.54 in) |
| Overall Length | 103 mm (4.06 in) |
| Inside Diameter | 10 mm (0.39 in) |
| Remarks | End Type: Lead Chamfer, Lead Chamfer |
Compatible Equipment
- Track Loaders: 826K, 826H, 982, 992
- Compactors: 824K, 825K
- Wheel Loaders: 982M, 980M
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
