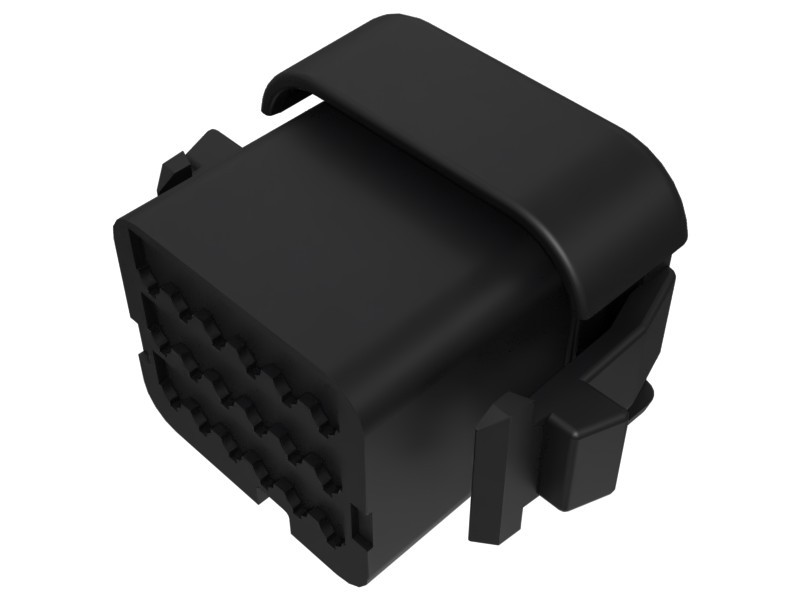

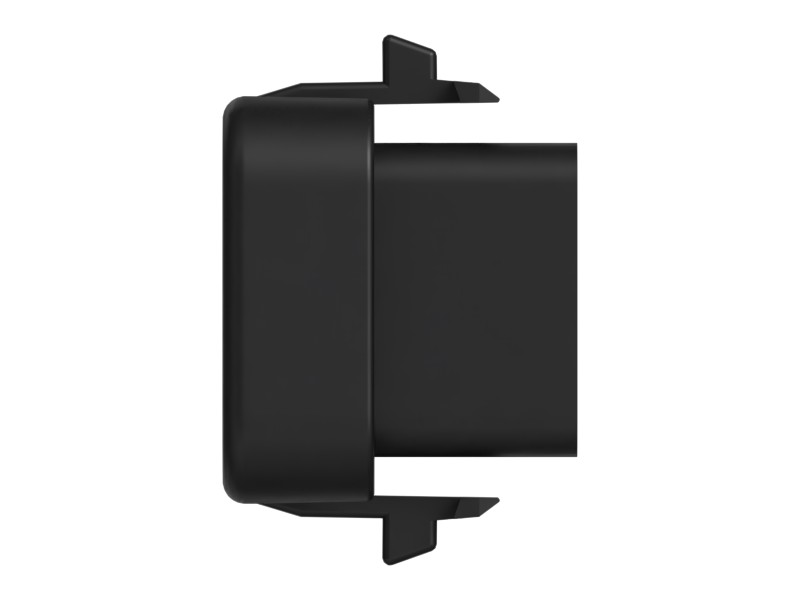

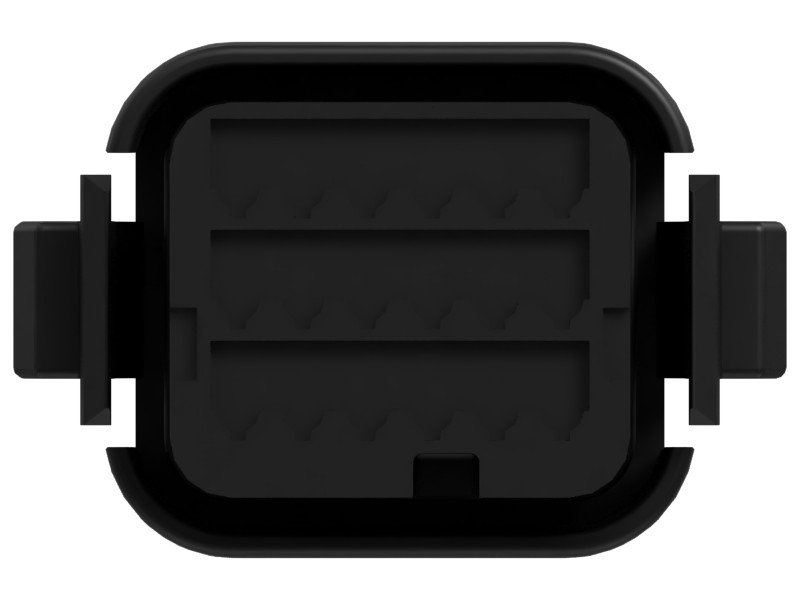

172-6062 18-Pin Connector Plug
Cat® 18-pin connector plug securely connects and protects wiring components in wiring harnesses.
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat plug group connectors provide a pin-and-socket connection system for extremely durable, sealed electrical connections in Cat heavy-duty equipment.
Features
- Black nylon 18-pin DTV connector plug
- Locking holes and integrated latch
- Durable and long-lasting
Applications
Cat connector plug groups use reliable wires between wires or between a wire and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Standard Color | Black |
|---|---|
| Wire Gauge | 16-18 AWG |
| Overall Width | 35.7 mm (1.4 in) |
| Material Description | Nylon |
| Overall Length | 53.5 mm (2.1 in) |
| Pin | 18 |
| Connector Type | 18-Pin DTV |
| Overall Depth | 30 mm (1.2 in) |
Compatible Equipment
- Generator Sets: C9
- Motor Graders: 14, 12H
- Wheel Excavators: M313D, M315D
- Engines: C13, C11
- Compactors: C-9
- Dozers: D6R, D6R II, D6T, D6R III, D7R, D6R LGP, D6R XL
- Excavators: 330D L, 336D2 XE, 336D2 GC, 336D L, 330C, 336D2 L, 330D, 637E, 637G, 365B, 340D2 L, 340D L, 345B, 330C L, 325C, 325B L, M325D L MH, 365B L, 336D2, 336D
Additional information
| Machine Model | 12H, 14, 325B L, 325C, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D L, 340D2 L, 345B, 365B, 365B L, 637E, 637G, C-9, C11, C13, C9, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D7R, M313D, M315D, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Dozers, Motor Graders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
