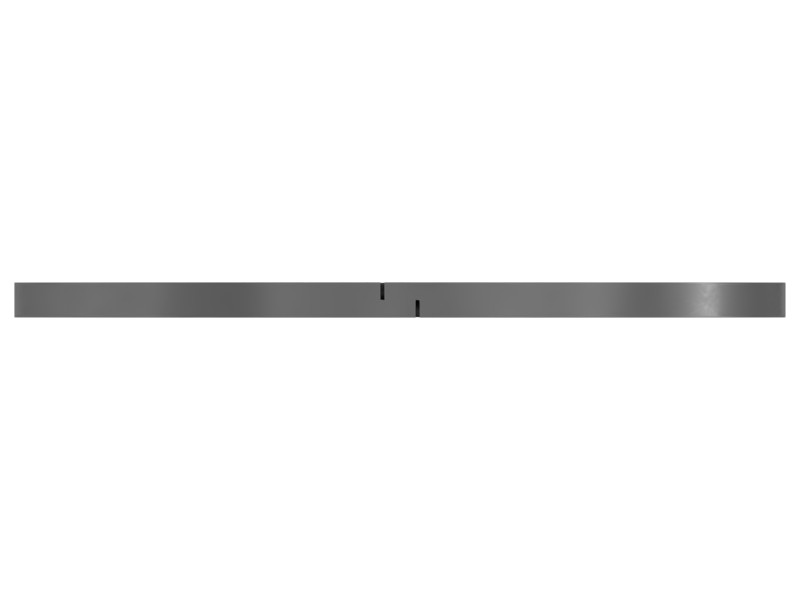

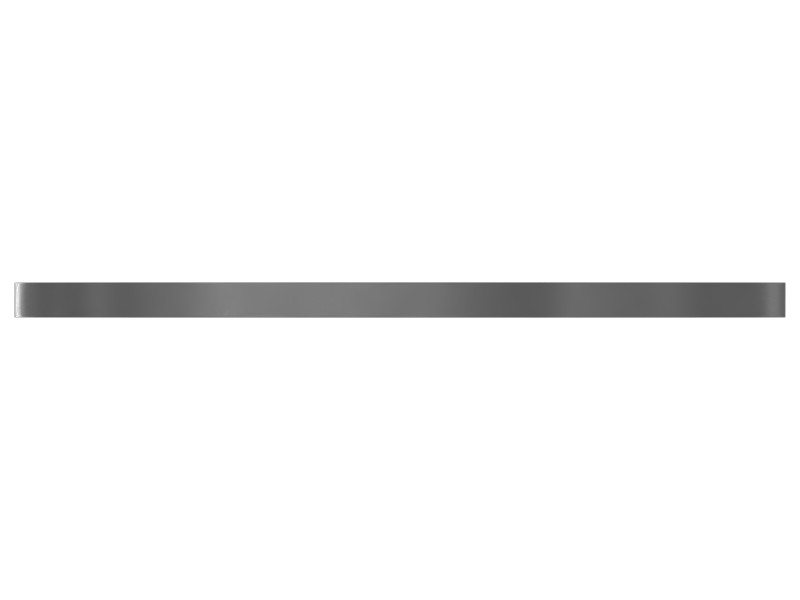

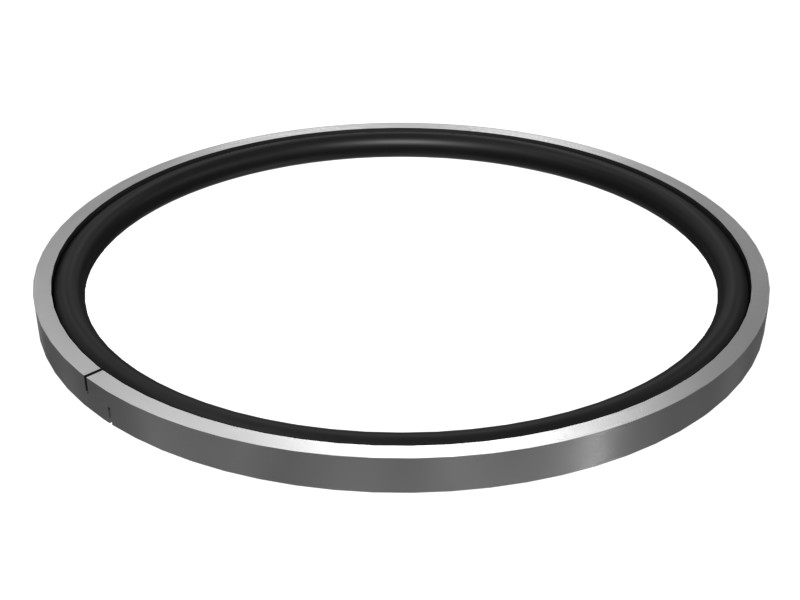

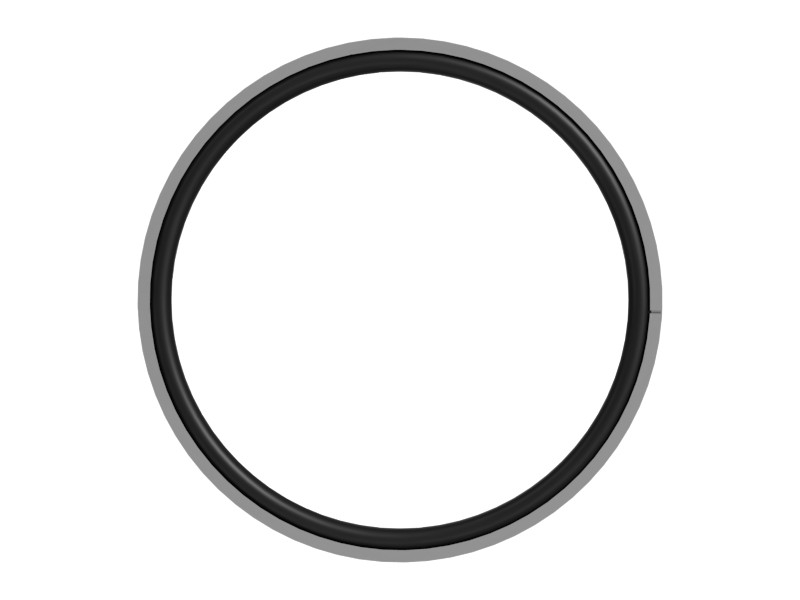

172-3918 210 mm Bore Two-Piece Seal
Cat® Two-Piece Seal for Hydraulic Cylinders with Plastic Seal Ring and Rubber Expander
Description
The piston seal ring is used to prevent oil from flowing between the cylinder rod end and the cylinder head end.
Features
- Rubber seal with plastic ring
- Groove Width: 9.63 mm (0.379 in)
- Groove Diameter: 184.74 mm (7.273 in)
- Bore Diameter: 210.00 mm (8.267 in)
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Compatible Equipment
- Dozers: D10
- Excavators: 385B, 374F L, 385C L, 390D, 385C, 390F, 395, 390D L, 374D L, 374F, 390F L
- Wheel Loaders: 988K, R1700 XE
