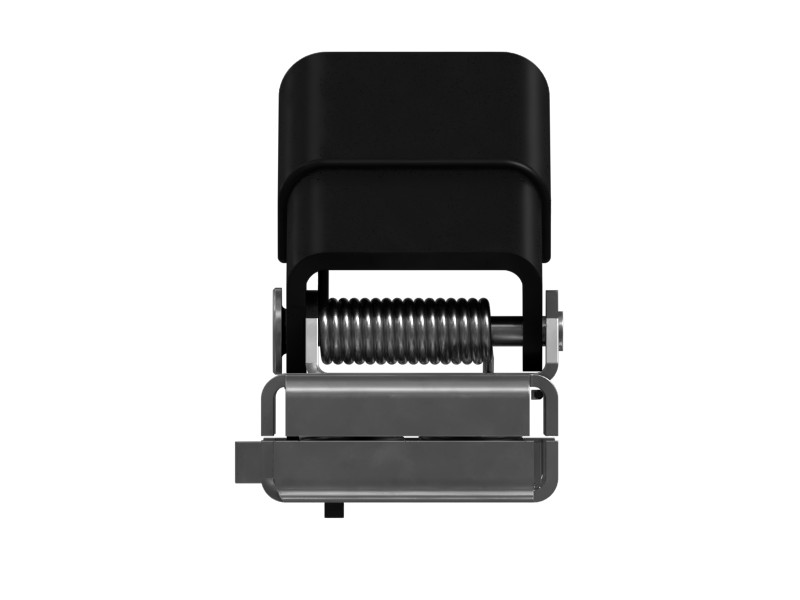

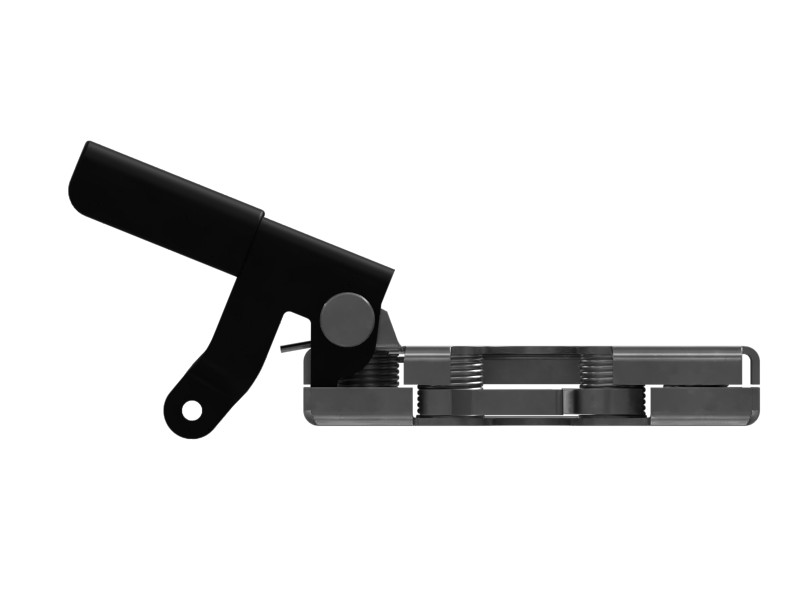

172-2384 Double Rotary Door Latch

Description

: The rotary latch is designed to secure and release two objects by turning one or more handles.

It consists of a lock body, a strike plate, a rotating mechanism, and a handle or grip. The lock body is typically mounted on one object, while the strike plate is mounted on the other object that needs to be secured. The rotating mechanism connects the lock body and the strike plate so that they can engage and disengage.

Features

• Withstands heavy loads and vibration
• Hardened to Rockwell 55-65 HRC, which determines its resistance to deformation and wear

Features Applications:

The twist lock is used to provide a secure, reliable fastening and locking mechanism. This twist lock is mainly used in Cat CB-534D, CB-564D, and CB-434D vibratory compactors and D5, D7, D6 XE, D6, D6N, D5, D1, D2, D3K2 LGP, D3K2 XL, D3, D4K2 LGP, D4K2 XL, D5K2 LGP, D5K2 XL, D6N LGP, D7E LGP, D7E, D6N XL, D6N, D5R LGP, D5R XL, D7E, D5R2, D6R LGP, D6R XL, D6R, D6T LGPPAT, D6T LGPP, D6T XL Pat, D6T XL, D6T XW Pat, D6T XW, D6T, D7E, D8R, D3G track-type dozers; D3K LGP, D3K XL, D4G, D4K LGP, D4K XL, D5G, D5K LGP, and D5K XL.

Specifications

Compatible Equipment

• Compactors: CB-434D, CB-534D, CB-564D
• Dozers: D8, D3K2 LGP, D6N, D7E, D3G, D5G, D5K XL, D6T LGP, D5N, D6T, D5K LGP, D5K2 XL, D6R LGP, D4G, D6R, D6R XL, D8R, D1, D7, D6R II
