Description

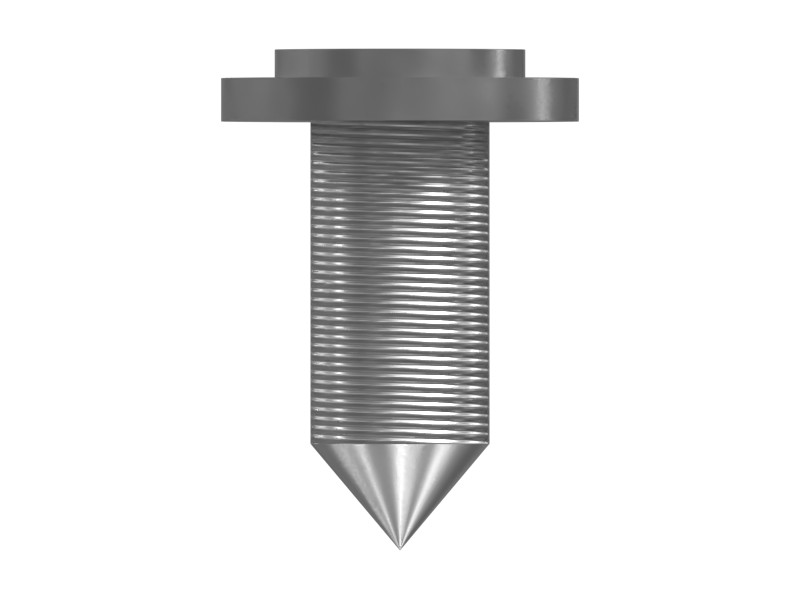

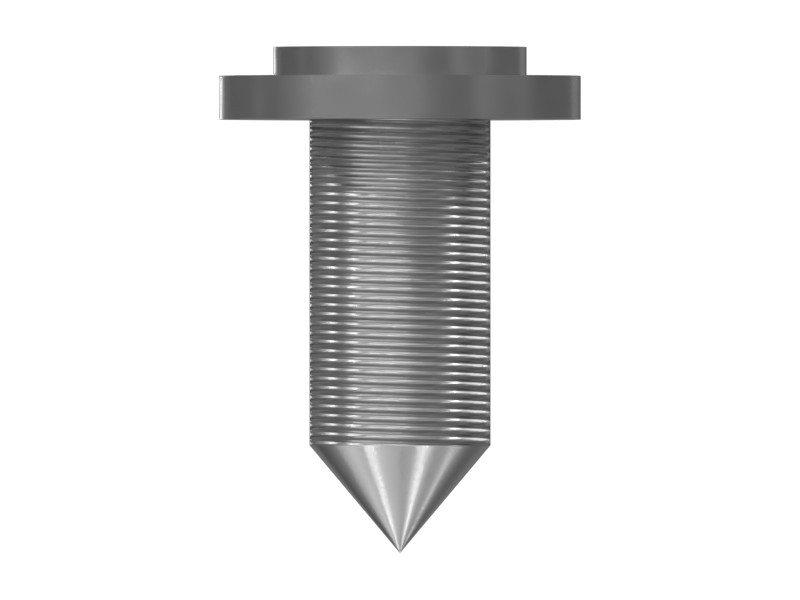

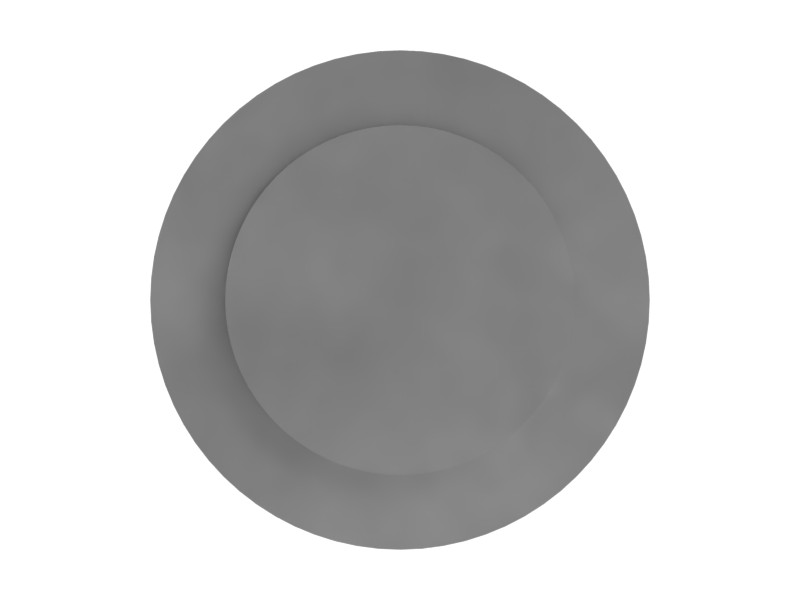

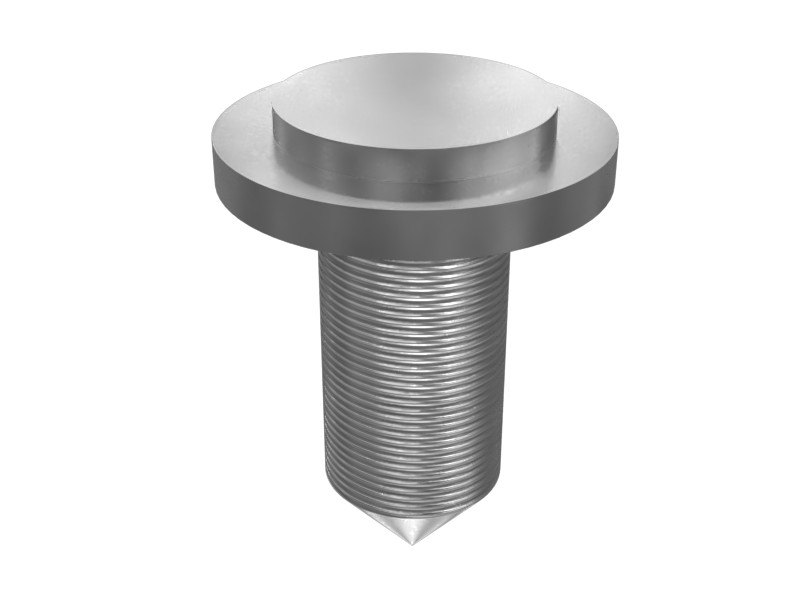

Machine screws are available in a variety of head styles, drive types, sizes, and materials to meet your needs.
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Specifications
| Screw Type | Self-Tapping |
|---|---|
| Head Type | Washer |
| Groove Type | Phillips Recess |
| Drive Chain | None mm |
| Coating | Zinc Flake |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M5X1.6 mm |
| Length | 12 mm |
| Handle Length | Not Specified mm |
| Head Diameter | 10 mm |
| Head Height | 2 mm |
Compatible Equipment
- Generator Sets: C7.1, 3512B
- Motor Graders: 316F
- Wheel Excavators: M322D, M313D, M320D2, M315D
- Mini Excavators: 307C, 307D
- Excavators: 330D L, 349F L, 336D2 GC, 336E, 336F L, 330D2, 312D2 GC, 324D L, 336D2 L, 312C, 320C, 330C L, 312D L, 336D L, 312C L, 336F, 325D L, 329D L, 313D, 330C, 325D, 336E LH, 328D LCR, 312D2, 330D2 L, 323D L, 320D L, 320E, 320D FM, 318D2 L, 336E L, 320D2 L, 336F L XE, 325C, 313D2, 312D2 L, 313D2-GC, 330D, 324D, 323D2 L, 320D RR, 314D LCR, 313F L, 320D2 GC, 320D GC, 329E L, 336E H, 326D L, 311D LRR, 325C L, 315D L, 312E, 315C, 336E LN, 385C, 385C L, 340D L, 340D2 L, 349D L, 345C L, 345C, 385C FS, 365C, 349E L VG, 390D, 365C L, 374F L, 390F, 345D L, 6015B, 345D, 349E L, 349E, 352F, 320D3, 6015, M325D L MH, 320D3 GC, 312F, 313F LGC, 312E L, 320C L, 323D2, 336F LN, 313D2 GC, 318D L, 311C, 329E, 336D2 XE, 314D CR, 312D, 335F LCR, 323D, 318D2, 320D2, 320D, 336D2, 329D2 L, 329D, 326D2, 336D, 329D2, 326D2 L, 390F L, 390D L, 349D2, 349D2 L, 374D L, 349D, 374F, 308D
- Skid Steer Loaders: 313D2 LGP
