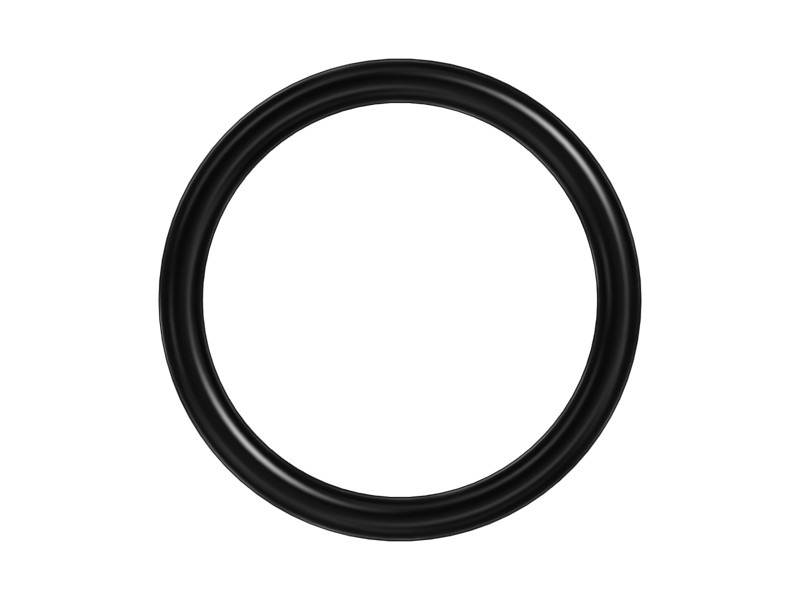

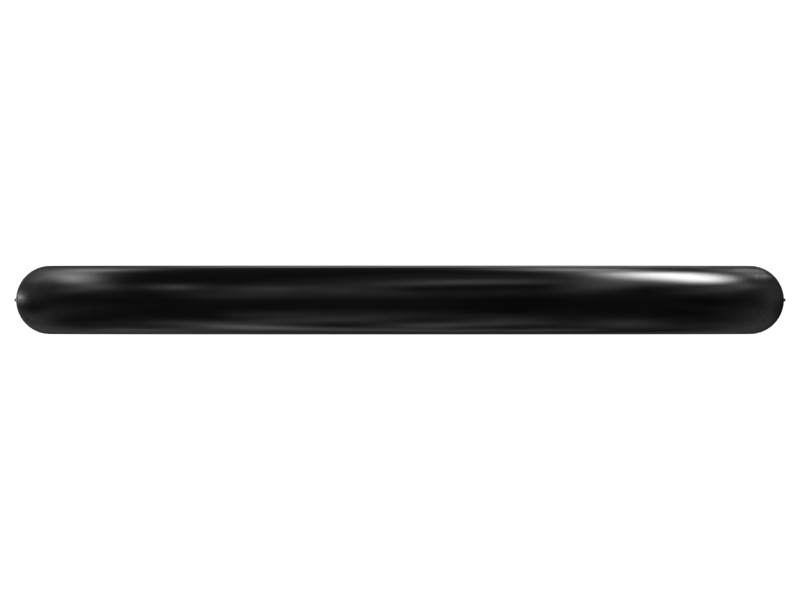

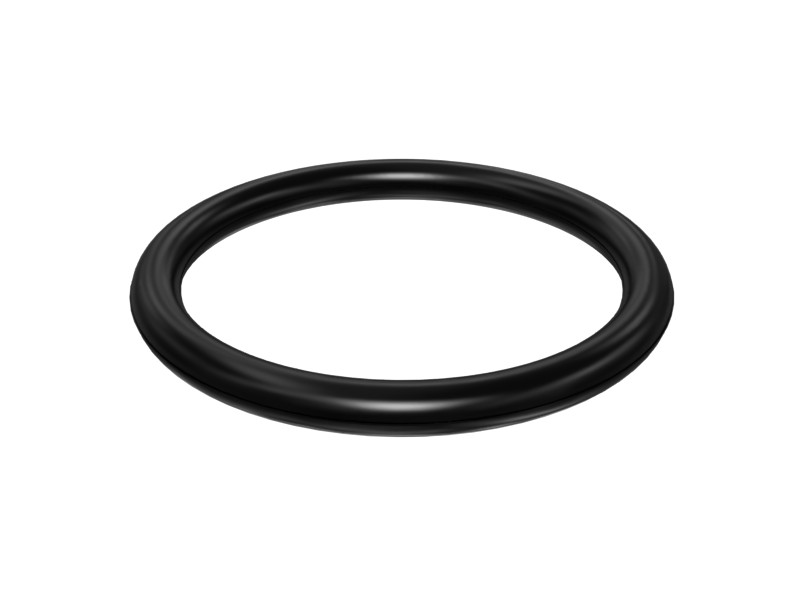

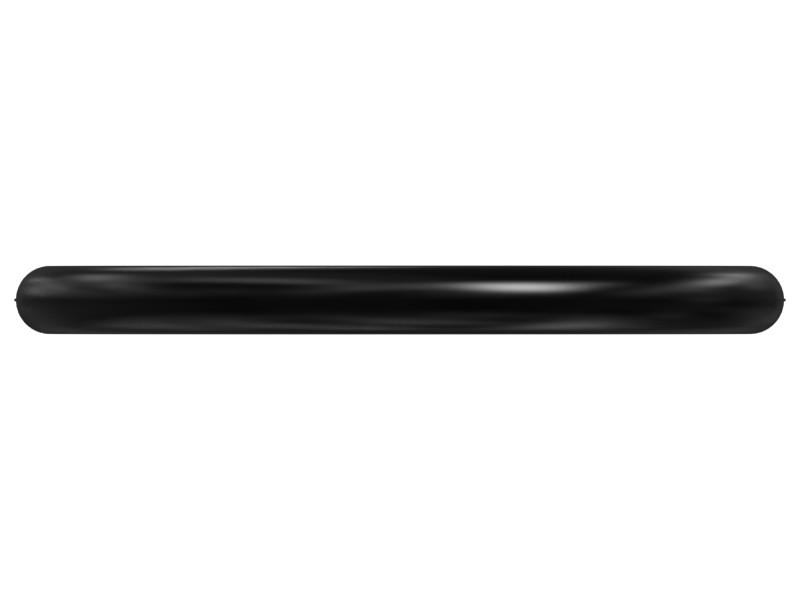

Description
O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Material Hardness | 90A |
|---|---|
| Polymer | FKM (Fluorocarbon) |
| Not Compatible | Amines; Brake Fluids; Engine Coolants; Fire-Resistant Fluids; Ketones; Steam; Water |
| Temperature | -40 – 175 °C (-40 – 350 °F) |
| Compatible | Diester Lubricants; Halogenated Hydrocarbons (Above 100 Degrees C); Excellent Compression Set Resistant Material; Petroleum Fluids; Phosphate Ester Fluids; Silicone Oils; Certain Acids |
| Application | High-pressure, high-temperature applications requiring resistance to air, fuel, lubricants and hydraulic oil; ORFS, STORS seals |
| Seal Inside Diameter | 32.92 mm |
| Dash Size | 219 in |
| Cross-Section Diameter | 3.53 mm (0.139 in) |
| Outside Diameter | 39.98 mm (1.574 in) |
| Inside Diameter | 32.92 mm (1.296 in) |
| SAE AS568 Dash Size | -219 |
| Hardness | 90 Shore A |
| Color | Medium Gloss Black |
| Material | FKM |
| Material Description | FKM rubber has a service temperature range of -40 to 150C and is resistant to air, fuel (including biodiesel), lubricants and engine oil. FKM rubber should not be used in applications requiring water or coolant resistance. |
| Coating | None |
| Color Note | Actual O-ring color may differ from the image. |
| Remarks | Dimensions and material descriptions are for reference only. |
Compatible Equipment
- Cold Planers: PL72, PL83, PL87
- Wheel Excavators: IT14G, M313D, M315D2
- Compactors: CW-34
- Dozers: D3K2 LGP, D3G, D5K LGP, D5G, D5K2 XL, D4G, D5K XL, D7, D8, D6T, D9
- Excavators: 340, 365B, 345B, 345C, M325D L MH, 365B L, 3508B, 6020B, 6015, 6040, 325B L, 325C, 325C L, 330C L
- Wheel Loaders: 910, 906K, 966F
- Off-Highway Trucks: 789D, 794 AC, 797F, 796 AC, 798 AC, 793F, 793D, 793, 735, 789, 785D, 785, 730, 725, 773, 7495
Additional information
| Machine Model | 325B L, 325C, 325C L, 330C L, 340, 345B, 345C, 3508B, 365B, 365B L, 6015, 6020B, 6040, 725, 730, 735, 7495, 773, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 906K, 910, 966F, CW-34, D3G, D3K2 LGP, D4G, D5G, D5K LGP, D5K XL, D5K2 XL, D6T, D7, D8, D9, IT14G, M313D, M315D2, M325D L MH, PL72, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
