Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 8.8 |
| Thread Size | M4 mm (0 in) |
| Thread Size (Diameter × Pitch) | M4X0.7 mm |
| Bolt Length | 16 mm (0.63 in) |

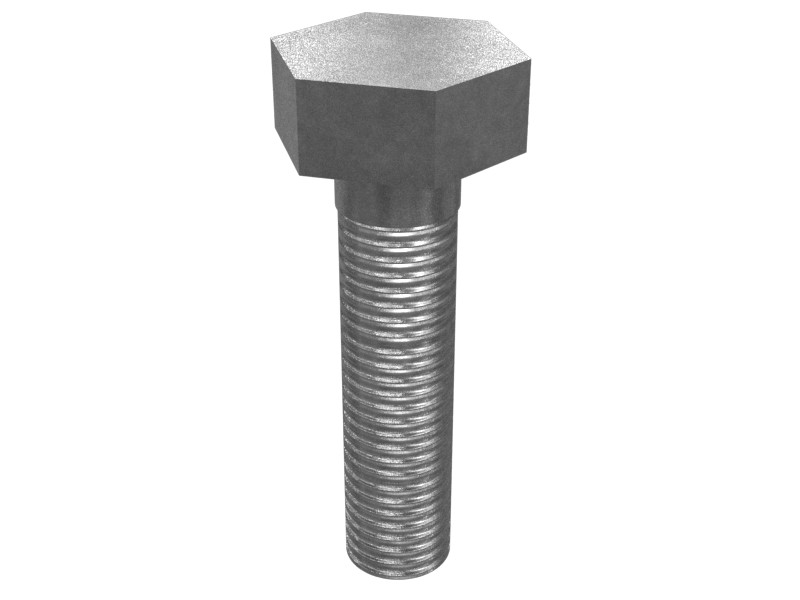

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 2 mm (0.083 in) |
| Material | STEEL |
Compatible Equipment
- Generator Sets: 3512B, 3512E, 3516C, 3406C, C7.1, C4.4, G3516, G3516C
- Track Loaders: 994K, 993, 953, 982, 992, 972, 953D, 826H, 834H, 963, 995
- Cold Planers: TH417D, TH360B, PM622, PM620, PL87, PL83, PL72
- Compactors: CB2.5 GC, CB-14B, CB2.7, CB2.9, CB2.5, CC2.7 GC, CB2.7 GC
- Engines: C32, C27, C15, C175-16, C18
- Excavators: 3456, 374F, 305, 374, 3516B, 3508B, 3516E, 374F L, 6060, 621G, 3512C, 395, 305 CR, XQP200, 6030, 325B L, 6040, 3101
- Motor Graders: 16M, 160K, 140K
- Wheel Excavators: MD6250, IT14G, MD6200, MD6310
- Dozers: D3G, D6T, D4G, D6R III, D6T LGP, D8T, D8R, D9T, D5G, D7R II, D7, D9, D8, D1
- Mini Excavators: 307C
- Wheel Loaders: 972L, 990H, 980L, 938M, 966L, 924K, 966K, 938K, 988H, 980, 926M, 910, 966, 950, R2900 XE, 950L, 972H, 962L, 906K, 966H, R1700 XE, R1700K
- Off-Highway Trucks: 797F, 789D, 793F, 770G, 793D, 785D, 772G, 796 AC, 794 AC, 798 AC, 773E, 777E, 785, 789, 793
Additional information
| Machine Model | 140K, 160K, 16M, 305, 305 CR, 307C, 3101, 325B L, 3406C, 3456, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 374, 374F, 374F L, 395, 6030, 6040, 6060, 621G, 770G, 772G, 773E, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 826H, 834H, 906K, 910, 924K, 926M, 938K, 938M, 950, 950L, 953, 953D, 962L, 963, 966, 966H, 966K, 966L, 972, 972H, 972L, 980, 980L, 982, 988H, 990H, 992, 993, 994K, 995, C15, C175-16, C18, C27, C32, C4.4, C7.1, CB-14B, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC2.7 GC, D1, D3G, D4G, D5G, D6R III, D6T, D6T LGP, D7, D7R II, D8, D8R, D8T, D9, D9T, G3516, G3516C, IT14G, MD6200, MD6250, MD6310, PL72, PL83, PL87, PM620, PM622, R1700 XE, R1700K, R2900 XE, TH360B, TH417D, XQP200 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
