Description

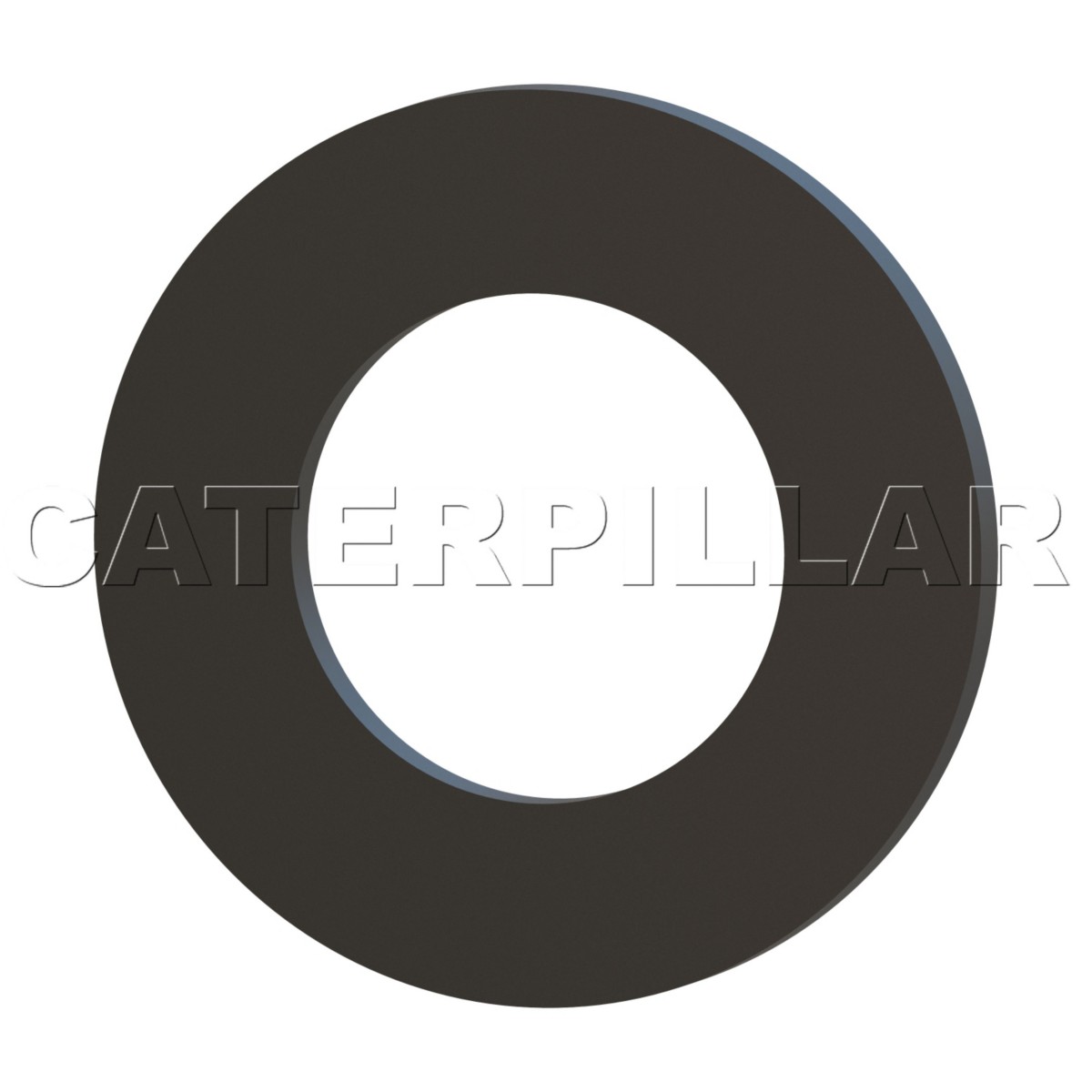

Rectangular seals and seal rings are circular seals with a rectangular cross-section. Depending on the needs of the application, the edges may be rounded or not rounded.
Features
Cat® seals and seal rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance.
Our seals and rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
Rectangular seals and seal rings are widely used in a variety of sealing applications on Cat machines and engines.
Specifications
| Cross-Section Height | 10 mm (0.39 in) |
|---|---|
| Inside Diameter | 25 mm (0.98 in) |
| Cross-Section Width | 3 mm (0.12 in) |
| Material Description | CR sponge (closed-cell) rubber is used for pads and static seals that require oil resistance and excellent weather resistance. |
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: 3512B
- Excavators: 349F L, 313 GC, 316 GC, 313, 336E H, 312 GC, 324D L, 336F L, 320E, 336E L, 330D2, 312C L, 329E L, 323D2 L, 330C, 312F, 320D2 L, 330D2 L, 320D L, 323D L, 320D FM, 313F L, 320C, 312D2 L, 336D2 L, 313D2, 336D L, 312E L, 312C, 336E, 329E, 320D2 GC, 330C L, 325C, 318D2 L, 318D2, 336F LN, 325C L, 329D L, 312D2, 312E, 336F, 336F L XE, 315C, 313D2 GC, 336D2 XE, 352F, 349E L, 349E, 340D2 L, 349E L VG, 320 GX, 323 GX, 336E LH, 313 GX, 312 GX, 312D2 GC, 320C L, 313D2-GC, 336D2 GC, 324D, 320D3, 336E LN, 326D L, 313F LGC, 323D2, 316 GX, 326D2 L, 320D2, 336D, 326D2, 329D2 L, 320D, 336D2, 329D, 349D2 L, 349D2, 329D2
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 312 GC, 312 GX, 312C, 312C L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 315C, 316 GC, 316 GX, 316F, 318D2, 318D2 L, 320 GX, 320C, 320C L, 320D, 320D FM, 320D L, 320D2, 320D2 GC, 320D2 L, 320D3, 320E, 323 GX, 323D L, 323D2, 323D2 L, 324D, 324D L, 325C, 325C L, 326D L, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330C, 330C L, 330D2, 330D2 L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D2 L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3512B, 352F |
|---|---|
| Equipment Type | Excavators, Skid Steer Loaders, Motor Graders, Generator Sets |
| Part Source | Genuine OEM |
